Material science

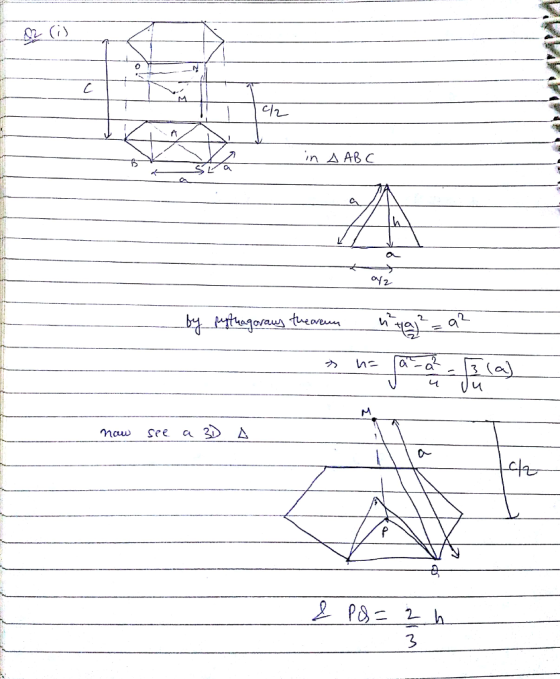

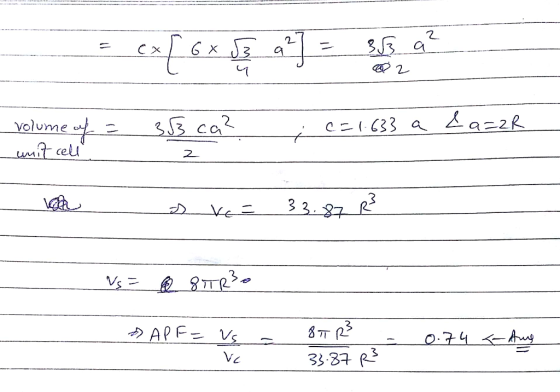

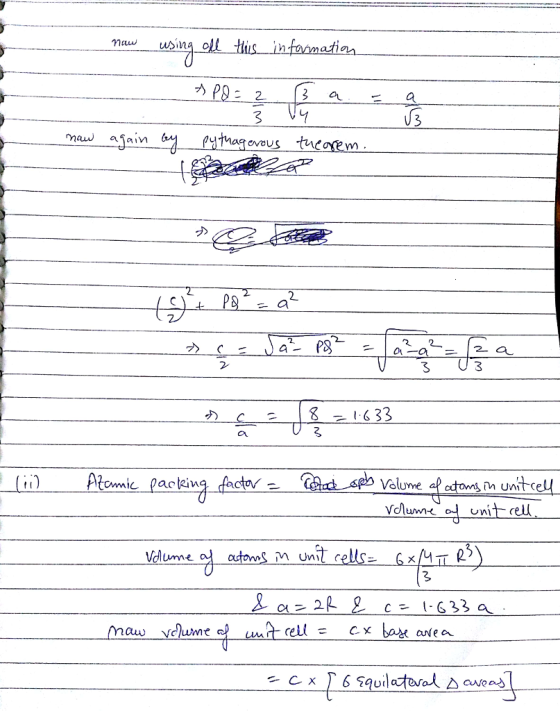

2. (i) For HCP crystals, show that the c/a ratio is 1.633. (iü) Calculate...
1. For zine (Zn) with a perfect HCP crystal structure having a c/a ratio of 1.633...
1. For zine (Zn) with a perfect HCP crystal structure having a c/a ratio of 1.633 and a density of 7.13 g/cm, (18 marks) a) Show that the volume of the Zn unit cell is given by 6v3R2c. (10 marks) b) Compute the atomic radius for Zn in nm. (8 marks)
1. For zinc (Zn) with a perfect HCP crystal structure having a c/a ratio of 1.633 and a density of 7.13 g/cm'. (18...
1. For zinc (Zn) with a perfect HCP crystal structure having a c/a ratio of 1.633 and a density of 7.13 g/cm'. (18 marks) a) Show that the volume of the Zn unit cell is given by 6V3R'C. (10 marks) b) Compute the atomic radius for Zn in nm. (8 marks)
calculate the atomic packing factor of a hcp if there are 2 atoms of different sizes...
calculate the atomic packing factor of a hcp if there are 2 atoms of different sizes in 1 unit cell one atom has radius=r and another has radius=R a does not equal 2r, rather a=R+r
You determine that material (c) has a hexagonal close-packed structure, where the c-to-a ratio is 1.633....
You determine that material (c) has a hexagonal close-packed structure, where the c-to-a ratio is 1.633. Calculate the APF. Note: the center layer consists of the equivalent of three total atoms within the unit cell, and the radius of the atom is r.
16. Calculate the number of atoms per unit cell, coordination number, and atomic packing factor for...
16. Calculate the number of atoms per unit cell, coordination number, and atomic packing factor for an HCP cell. 17. Assuming ideal spherical atoms calculate the c/a ratio of a HCP unit cell? 18. Magnesium is HCP crystal structure, what is the volume of the Mg unit cell? 19. What is the value of c, for magnesium? (Hint: Volume-basal area x height.) 20. What is the value of a, for magnesium? (Hint: Volume basal area x height)
please could you explain how to do 1 and 2. thank you Qi) Here is a...
please could you explain how to do 1 and 2. thank you
Qi) Here is a BBC unit lattice. Using the full sphere model, calculate the relative amount of area that is occupied by atoms with their center in the plane shown below (diagonal across the body). This is called the planar packing factor, equivalent to the atomic packing factor in 3D. Also mark the octahedral sites present on the plane. Bec Q2) Zinc has an HCP unit cell for...
Zinc has an HCP unit cell for which the ratio of the lattice parameters c/a is...
Zinc has an HCP unit cell for which the ratio of the lattice parameters c/a is 1.85. If the radius of the Zn atom is 0.1332 nm. a) determine the unit cell volume (You can still assume a = 2r the 2D planes are just not closely packed anymore) b) calculate the density of Zn and compare it with the literature value. *Explain why the values might be different.
Hexagonal Close-Packed Structure
Hexagonal Close-Packed Structure a) The conventional HCP unit cell shown to the right is not a Bravais lattice, but it can be defined as a simple hexagonal lattice with a two-atom basis. Draw the simple hexagonal unit cell on this structure and label the fundamental lattice translation vectors as a1,a2, and a3. b) Calculate the direction of each lattice translation vector in cartesian coordinates using the cartesian coordinate system shown on the diagram. c) In terms of lattice constants a and c, calculate...
1. Calculate the density of the magnesium unit cell. HCP has 6 atoms per unit cell...
1. Calculate the density of the magnesium unit cell. HCP has 6 atoms per unit cell for the full HCP structure. The primitive form of the HCP has 2 atoms/unit cell. At. Wt. 24.305g/mole, a 3.29A, c 5.21 A. 2. Calculate the density of the FCC nickel lattice with an interstitial hydrogen in the centered position of the unit cell. You may assume that there is no lattice dilation due to the presence of the hydrogen atom. a 3.524A, At.Wt....
Hexagonally Close-Packed (HCP) Structure 10. What are the Miller-Bravais indices for the basal planes (i.e., the...
Hexagonally Close-Packed (HCP) Structure 10. What are the Miller-Bravais indices for the basal planes (i.e., the six-sided top and bottom) and side planes (i.e., the six rectangles of sides a and c) of the HCP unit cell? Basal planes: {uvtw} Side planes: {uvtw} 11. Calculate the planar density for the most densely packed HCP planes in terms of atomic radius (R). (Show your work.) PD = 12. Convert the following directions to four-coordinate (Miller-Bravais) directions and sketch them. a. [100]...
1. For zine (Zn) with a perfect HCP crystal structure having a c/a ratio of 1.633 and a density of 7.13 g/cm, (18 marks) a) Show that the volume of the Zn unit cell is given by 6v3R2c. (10 marks) b) Compute the atomic radius for Zn in nm. (8 marks)
1. For zinc (Zn) with a perfect HCP crystal structure having a c/a ratio of 1.633 and a density of 7.13 g/cm'. (18 marks) a) Show that the volume of the Zn unit cell is given by 6V3R'C. (10 marks) b) Compute the atomic radius for Zn in nm. (8 marks)
You determine that material (c) has a hexagonal close-packed structure, where the c-to-a ratio is 1.633. Calculate the APF. Note: the center layer consists of the equivalent of three total atoms within the unit cell, and the radius of the atom is r.
16. Calculate the number of atoms per unit cell, coordination number, and atomic packing factor for an HCP cell. 17. Assuming ideal spherical atoms calculate the c/a ratio of a HCP unit cell? 18. Magnesium is HCP crystal structure, what is the volume of the Mg unit cell? 19. What is the value of c, for magnesium? (Hint: Volume-basal area x height.) 20. What is the value of a, for magnesium? (Hint: Volume basal area x height)
please could you explain how to do 1 and 2. thank you
Qi) Here is a BBC unit lattice. Using the full sphere model, calculate the relative amount of area that is occupied by atoms with their center in the plane shown below (diagonal across the body). This is called the planar packing factor, equivalent to the atomic packing factor in 3D. Also mark the octahedral sites present on the plane. Bec Q2) Zinc has an HCP unit cell for...
1. Calculate the density of the magnesium unit cell. HCP has 6 atoms per unit cell for the full HCP structure. The primitive form of the HCP has 2 atoms/unit cell. At. Wt. 24.305g/mole, a 3.29A, c 5.21 A. 2. Calculate the density of the FCC nickel lattice with an interstitial hydrogen in the centered position of the unit cell. You may assume that there is no lattice dilation due to the presence of the hydrogen atom. a 3.524A, At.Wt....
Hexagonally Close-Packed (HCP) Structure 10. What are the Miller-Bravais indices for the basal planes (i.e., the six-sided top and bottom) and side planes (i.e., the six rectangles of sides a and c) of the HCP unit cell? Basal planes: {uvtw} Side planes: {uvtw} 11. Calculate the planar density for the most densely packed HCP planes in terms of atomic radius (R). (Show your work.) PD = 12. Convert the following directions to four-coordinate (Miller-Bravais) directions and sketch them. a. [100]...
