Q= 1.2C, d= 10cm, I= 10A. The direction of v is perpendicular to I. If v=0...
Q= 1.2C, d= 10cm, I= 10A. The direction of v is perpendicular to I. If v=0 m/s, what is the magnetic force acting on charge Q? If v= 13m/s, what is the magnetic force acting on charge Q? what direction is the force on Q?
Homework Answers

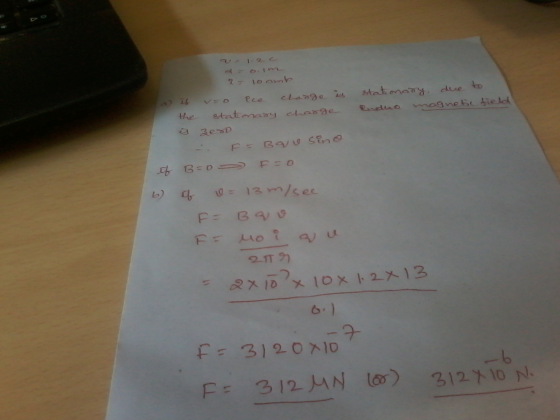

if v = 0
magnetic force acting on charge F = QvB sin(theta) = 0
-----------------------
if v = 13 m/s
magnetic field at distance d= 10 cm = 0.1 m
B = Mu0*i/(2pid) = 4pix10^-7*10/(2pi*0.1) = 2x10^-5 T
magnetic force acting on charge , F = 1.2*13* 2 x 10^-5 = 3.12 x10^-4 N
Add Answer to:
Q= 1.2C, d= 10cm, I= 10A. The direction of v is perpendicular to
I. If v=0...
Positive point charges q = +8.75 μC and q'-+3.75 pC are moving relative to an observer...
Positive point charges q = +8.75 μC and q'-+3.75 pC are moving relative to an observer at point P, as shown in the following figure. The distance d is 0.115 m, v-4.30 x 106 m/s, and v'-9.25 x 106 m/s. (a) When the two charges are at the locations shown in the figure, what are the magnitude and direction of the net magnetic field they produce at point P? magnitude direction I select… (b) What are the magnitude and direction...
23. The direction of the force on charge-q s a. Up. b. Down. c. Left. d....
23. The direction of the force on charge-q s a. Up. b. Down. c. Left. d. Right. e. The force on-q is zero. tr with sneed 5000 m/s into a region where a vertical magnetic field nateon has a larger magnetic
A charge q=1.0*10^-2 C travels in the x-direction (y is up and, z is out) at...
A charge q=1.0*10^-2 C travels in the x-direction (y is up and,
z is out) at v=1000 m/s..
help me with this. I got 0.600 with direction heading to -Z but
it is wrong. I want to know why.
五 A charge q-1.0x 102 C travels in the x-direction (y is up, z is out) at v-1000 m/s, perpendicular to a wire carrying current 1-2.0 A, and one with current 2-1.0 A at a point 0.01 m from each wire....
electromagnetic 9) Lorentz Force and the Cyclotron Frequency: (15 pts) A point charge q has an...
electromagnetic
9) Lorentz Force and the Cyclotron Frequency: (15 pts) A point charge q has an initial velocity v = v. and is incident on a constant magnetic field B = B.2. v = v. B = 3,2 (a) Determine the magnitude and direction of the Lorentz force acting on the charge. Express your answer as a vector. (b) Derive the cyclotron frequency for a charge in circular motion in a constant magnetic field with incident velocity perpendicular to the...
4) You have a metal ring that has a 10cm radius. This ring contains a net...

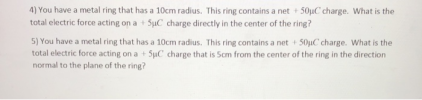

4) You have a metal ring that has a 10cm radius. This ring contains a net i 50μ(, charge, what is the total electric force acting on a + 5uC charge directly in the center of the ring? 5) You have a metal ring that has a 10cm radius. This ring contains a net + 50μC charge, what is the total electric force acting on a+SyuC charge that is 5cm from the center of the ring in the direction normal...
