Consider the motion of particle mass m and charge q in an electromagnetic field with electric...
Consider the motion of particle mass m and charge q in an electromagnetic field with electric field vector is E and the magnetic field vector is B. The force acting on the particle is given by the Lorentz equation F = qE + qv x B (assuming non-relativistic case, v<)
(

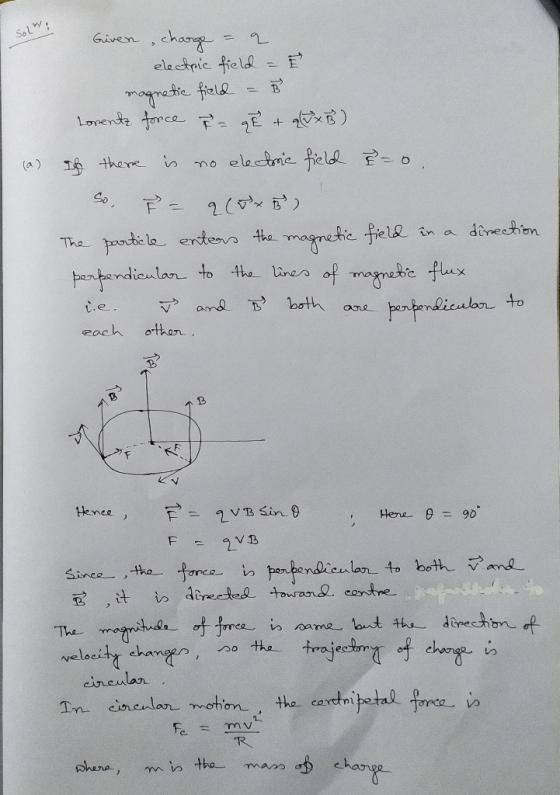

a) If there is no electric field and the particle enters the magnetic field in a direction

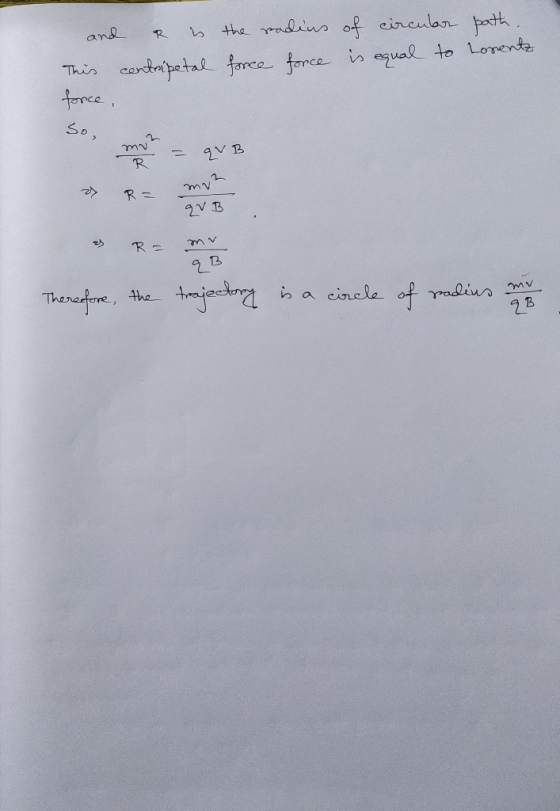

perpendicular to the lines of magnetic flux, show that the trajectory is a circle with radius
