the voltage at eh input of an amplifier is 15mV rms. The amplifier delivers 0.02 a...
the voltage at eh input of an amplifier is 15mV rms. The amplifier delivers 0.02 a rms to a 12ohms load at 1 kHz. The input resistance of the amplifier is 1400ohms. Its lower cutoff frequency is 50 Hz and its bandwidth is 9.95 kHz Find

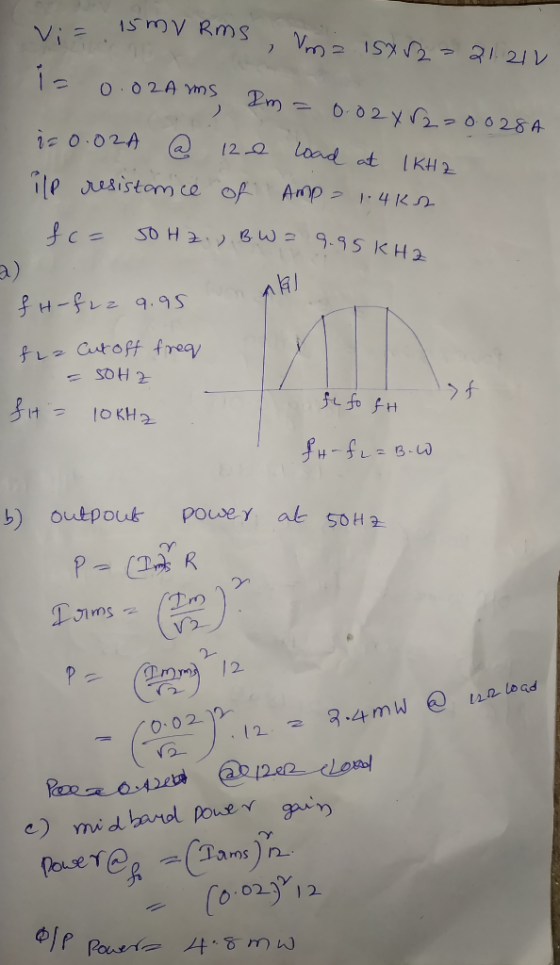

a) upper cuttoff frequency
b) the output power at 50Hz
C) the midband power gain

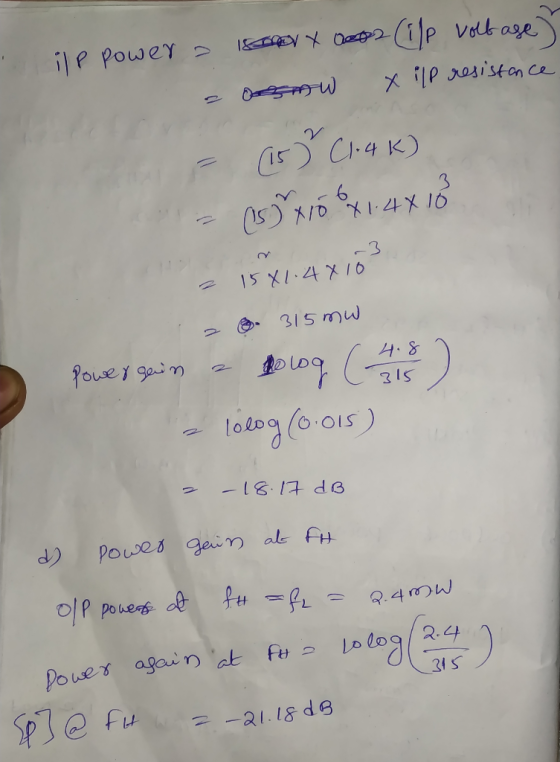

d) the power gain at fh
Homework Answers
eu
Add Answer to:
the voltage at eh input of an amplifier is 15mV rms. The
amplifier delivers 0.02 a...
A MOSFET common-source amplifier has gm=1.8mA/V, ro=100KΩ, RD=10KΩ, Cgs=2pF, Cgd=0.4pF. The amplifier is fed from a...
A MOSFET common-source amplifier has gm=1.8mA/V, ro=100KΩ, RD=10KΩ, Cgs=2pF, Cgd=0.4pF. The amplifier is fed from a voltage source with an internal resistance of 500KΩ and the output is connected to a 10KΩ load. If the lower cutoff frequency (fL) is 10KHz, find the Gain-bandwidth product of this amplifier in (dB) KHz (ignore the sign). Approximate your answer to 2 decimal point accuracy.
A signal source with an open-circuit voltage of Vs = 2 mV rms and an internal...
A signal source with an open-circuit voltage of Vs = 2 mV rms and an internal resistance of 50 kΩ is connected to the input terminals of an amplifier having an open-circuit voltage gain of 100, an input resistance of 135 kΩ , and an output resistance of 4 Ω. A 4 Ω load is connected to the output terminals. Find Voltage gain Avs = V0/Vs Find voltage gain Av = V0/Vi Find current gain Ai Find power gain G...
Q2: An amplifier operating from t 15-V power supplies is fed with a sinusoidal voltage having 1 V peak and delivers a s...
Q2: An amplifier operating from t 15-V power supplies is fed with a sinusoidal voltage having 1 V peak and delivers a sinusoidal voltage output of 12 V peak to a 1-kΩ load. The amplifier draws a current of 6.5 mA from each of its two power supplies. The input current of the amplifier is found to be sinusoidal with 0.1 mA peak. Find (a) the voltage gain, (b) the current gain, (c) the power gain, (d) the power drawn...
1. An amplifier has a voltage gain Av equal to 20. An input voltage v of...
1. An amplifier has a voltage gain Av equal to 20. An input voltage v of 150 mVs applied to the input of the amplifier. What is the output voltage vo? Rs 2. For the amplifier in Problem 3, assume the input current i is 2 mA, and the output current io is 10 mA. What is the current gain A, ? Assuming the amplifier as described above has an output resistance is 0 ohms, what is the load resistance...
solve it on paper neatly An inverting operational amplifier is to operate according to the following...
solve it on paper neatly
An inverting operational amplifier is to operate according to the following specification: Voltage gain = 100 Input resistance (at mid-band) = 10 ke Lower cut-off frequency = 250 Hz Upper cut-off frequency = 15 kHz Confirm a circuit to satisfy the above specification using an operational amplifier I
1) What is the gain at 100Hz for an amplifier that has a mid-band gain of...
1) What is the gain at 100Hz for an amplifier that has a mid-band gain of 5000, a lower cutoff frequency of 10kHz, and a upper cutoff frequency of 200kHz 2)Calculate the decibel power gain for an Ap= 50? 3)If the decibel voltage gain of an amplifier is 60dB, what is the voltage gain (Av)? 4)If the decibel power gain of an amplifier is 20dB, what is the power gain (AP)? 5)For a two stage amplifier with AV1(DB) equal to...
a The operational amplifier in Figure 3.a has a slew rate of 0.5V/us and a unity gain bandwid of 5 MHz. Determine () the voltage gain, and (ii) the maximum input frequency such that the output wa...
a The operational amplifier in Figure 3.a has a slew rate of 0.5V/us and a unity gain bandwid of 5 MHz. Determine () the voltage gain, and (ii) the maximum input frequency such that the output waveform is undistorted. with Vpeak 1V and frequency f. () Determine the cutoff frequency, (ii) plot, to scale, the you use this integrator if the input frequency is 30 KHz? Explain your answer. that any feedback resistance is fixed to 5k2. b. In the...
1.14 An amplifier with a voltage gain of +40 dB, an input resistance of 10 kS2, and an output resistance of i kn is used to drive a l-kΩ load. What is the value of Apo? Find the value of the po...
1.14 An amplifier with a voltage gain of +40 dB, an input resistance of 10 kS2, and an output resistance of i kn is used to drive a l-kΩ load. What is the value of Apo? Find the value of the power gain in decibels.
1.14 An amplifier with a voltage gain of +40 dB, an input resistance of 10 kS2, and an output resistance of i kn is used to drive a l-kΩ load. What is the value of...
SCSC Integrated Circuit Manufacturing LLC will market an amplifier circuit with a voltage gain of +40dB,...
SCSC Integrated Circuit Manufacturing LLC will market an amplifier circuit with a voltage gain of +40dB, input resistance Rin=10k Ohm and output resistance 1k Ohm. This amplifier is designed to drive a 1k Ohm purely resistive load. Based on design calculations the input power to the load in terms of the input voltage is determined to be 3.52i. Find the power gain in dB
9-3. A two-cavity amplifier klystron has the following characteristics: Voltage gain: 15 dB Input power: 5 mW Total shu...
9-3. A two-cavity amplifier klystron has the following characteristics: Voltage gain: 15 dB Input power: 5 mW Total shunt impedance of input cavity Rh 30 kf2 Total shunt impedance of output cavity Rsh 40 kl Load impedance at output cavity Rei 40 kl 420 Microwave Linear-Beam Tubes (Q Determine: a. The input voltage (rms) b. The output voltage (rms) c. The power delivered to the load in watts lwish to help me in solving this question this the referenoe book...
Q2: An amplifier operating from t 15-V power supplies is fed with a sinusoidal voltage having 1 V peak and delivers a sinusoidal voltage output of 12 V peak to a 1-kΩ load. The amplifier draws a current of 6.5 mA from each of its two power supplies. The input current of the amplifier is found to be sinusoidal with 0.1 mA peak. Find (a) the voltage gain, (b) the current gain, (c) the power gain, (d) the power drawn...
1. An amplifier has a voltage gain Av equal to 20. An input voltage v of 150 mVs applied to the input of the amplifier. What is the output voltage vo? Rs 2. For the amplifier in Problem 3, assume the input current i is 2 mA, and the output current io is 10 mA. What is the current gain A, ? Assuming the amplifier as described above has an output resistance is 0 ohms, what is the load resistance...
solve it on paper neatly
An inverting operational amplifier is to operate according to the following specification: Voltage gain = 100 Input resistance (at mid-band) = 10 ke Lower cut-off frequency = 250 Hz Upper cut-off frequency = 15 kHz Confirm a circuit to satisfy the above specification using an operational amplifier I
a The operational amplifier in Figure 3.a has a slew rate of 0.5V/us and a unity gain bandwid of 5 MHz. Determine () the voltage gain, and (ii) the maximum input frequency such that the output waveform is undistorted. with Vpeak 1V and frequency f. () Determine the cutoff frequency, (ii) plot, to scale, the you use this integrator if the input frequency is 30 KHz? Explain your answer. that any feedback resistance is fixed to 5k2. b. In the...
1.14 An amplifier with a voltage gain of +40 dB, an input resistance of 10 kS2, and an output resistance of i kn is used to drive a l-kΩ load. What is the value of Apo? Find the value of the power gain in decibels.
1.14 An amplifier with a voltage gain of +40 dB, an input resistance of 10 kS2, and an output resistance of i kn is used to drive a l-kΩ load. What is the value of...
9-3. A two-cavity amplifier klystron has the following characteristics: Voltage gain: 15 dB Input power: 5 mW Total shunt impedance of input cavity Rh 30 kf2 Total shunt impedance of output cavity Rsh 40 kl Load impedance at output cavity Rei 40 kl 420 Microwave Linear-Beam Tubes (Q Determine: a. The input voltage (rms) b. The output voltage (rms) c. The power delivered to the load in watts lwish to help me in solving this question this the referenoe book...
