Build the DFA that recognizes the LR(0) sets of items for the grammar Goal -> B...

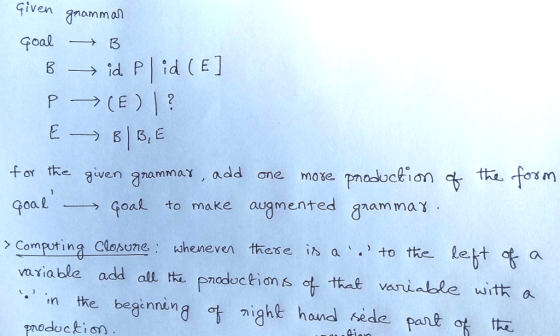

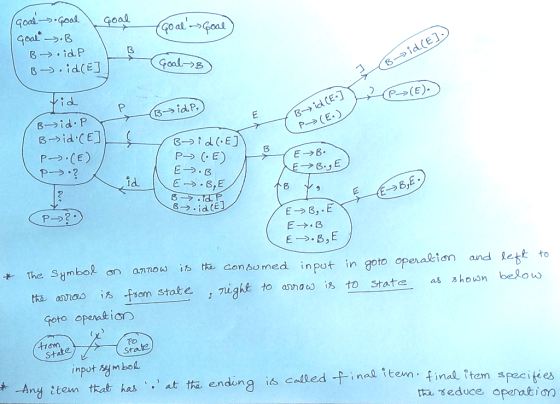

Build the DFA that recognizes the LR(0) sets of items for the grammar
Goal -> B
B -> id P | id ( E ]
P -> ( E ) | ?
E -> B | B , E
Homework Answers
Add Answer to:
Build the DFA that recognizes the LR(0) sets of items for the
grammar
Goal -> B...
