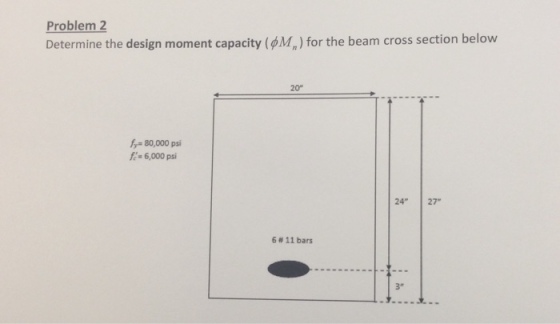

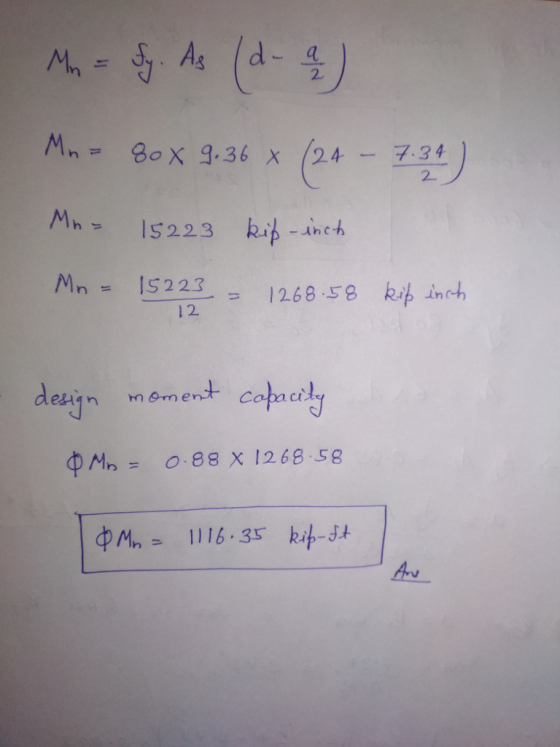

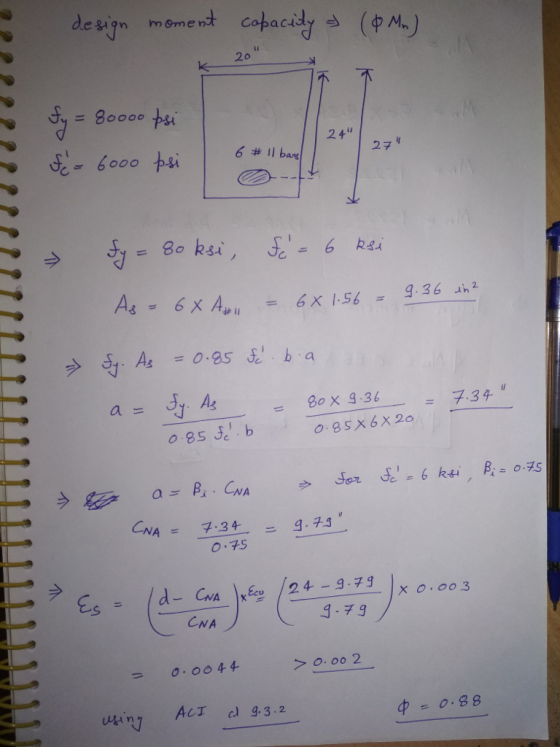

Problem 2 Determine the design moment capacity (фМ.) for the beam cross section below 20° fy-80,000...
Example SW-11 Determine the design moment capacity for the T-beam floor system shown The beam has...
Example SW-11 Determine the design moment capacity for the T-beam floor system shown The beam has four #9 tension bars. Assume a clear span of 21 ft-3 in. fe 4000 psi, and fy 60 ksi be d-13%" 64%"
Use only the ultimate-strength design (strength design) and calculate the design moment strength (ultimate strength capacity...
Use only the ultimate-strength design (strength design) and calculate the design moment strength (ultimate strength capacity “OMn”) of the beam section given below. 6 steel bar #11 are used, f' = 4700 psi and fy = 75,000 psi. Details of all calculations, stress profile, location of N.A., ... should be given and illustrated clearly. All units should be written for the found quantities. (20 points) 6 in. 20 in. 32 in. 6 #11 3 in. 3 in. 6 in. 6...
5. Determine the moment capacity of a doubly reinforced beam below. Use fy=60,000 psi and fc'=...
5. Determine the moment capacity of a doubly reinforced beam below. Use fy=60,000 psi and fc'= 4000 psi. b=20 AS =1.58 h=36" d=33 Las=1248 Doubly Reinforced Section
Problem 2 Determine the nominal moment capacity for the reinforced concrete beam shown. The beam ...
Problem 2 Determine the nominal moment capacity for the reinforced concrete beam shown. The beam cross section has a width 10 inch and a depth 20 inch. The beam is reinforced with a tension steel reinforcement of 3#8 with an area of steel # 2.37 inch Assume grade 60 steel with a yield strss, Fy 60 ksi d 20 3#8 2.37/ 2 As B-10"
Problem 2 Determine the nominal moment capacity for the reinforced concrete beam shown. The beam cross...
For the beam cross-section shown below, calculate the nominal moment carrying capacity (Mn) and design strength...
For the beam cross-section shown below, calculate the nominal moment carrying capacity (Mn) and design strength (Mn) using rectangular stress-block. Does the beam satisfy ACI tension-controlled failure requirement? Given:-60,000 psi andf",-5,000 psi, Ά,-4 in 1n As 16 in.
4. For the beam shown below,fe' = 4000 psi and fy = 60,000 psi. (20 points)...
4. For the beam shown below,fe' = 4000 psi and fy = 60,000 psi. (20 points) (a) Compute the effective flange width at midspan. 911-6 in (a) Beam section and distance to adjacent beams Support (negative bending) Midspan positive bending) 7 No. 7 bars IIT 3 No. 8 plus 2 No. 7 bars at midspan 22 2 No. 8 bars at ends (b) Beam span supported by 18-in. wide columns (b) Compute Mn for the positive and negative-moment regions and...
Compute the design strength(positive moment), фМ., for the beam shown below. note that the beam shown...
Compute the design strength(positive moment), фМ., for the beam shown below. note that the beam shown is an independent beam, which does not bend in conjunction with any adjacent beam(s). The material strengths are as follows: Please l. f, - 60,000 psi 3,000 psi (30 pts.) Check the development length for the bar size shown (No. 8 bars). The bars are not epoxy coated and the concrete is normalweight concrete. Assume the simplified equation can be used. The bars are...
Design a reinforced concrete beam that has a rectangular cross section with a width b =...
Design a reinforced concrete beam that has a rectangular cross section with a width b = 24 in. The depth h is limited by architectural reasons to 16 in. It has to carry a factored moment Mu = 360 kip- ft. including the self-weight. The design should satisfy ACI 318 for tension controlled members. Use Grade 60 steel and a specified concrete compressive strength = 4,000 psi. Determine the flexural reinforcement for the beam, and use compression steel if needed....
reinforced concrete A. Select the required reinforcing steel for the following beam section for MD =...
reinforced concrete
A. Select the required reinforcing steel for the following beam section for MD = 190 ft-k, ML = 390 ft-k, fy = 60,000 psi, f'c = 3,000 psi, bi = 54", bw = 15", tf = 3", and d = 24". Verify the section using the actual bar selection. Determine the required number of layers for the bars. Show a sketch of the cross section indicating bar sizes and bar layout. +3+ 15" - As we have discussed...
A rectangular beam made using concrete of fc' = 6000 psi and steel with fy= 60...
A rectangular beam made using concrete of fc' = 6000 psi and steel with fy= 60 ksi. The beam has a width B=20 in and a total depth of 20 in with an effective depth d=17.5 in. The tensile steel consists of 4 #11 bars at the bottom side. a) Determine the maximum service load moment that can be resisted without stressing the concrete above 0.45fc' or the steel above 0.4fy. b) Calculate the nominal flexural moment capacity of the...
Example SW-11 Determine the design moment capacity for the T-beam floor system shown The beam has four #9 tension bars. Assume a clear span of 21 ft-3 in. fe 4000 psi, and fy 60 ksi be d-13%" 64%"
Use only the ultimate-strength design (strength design) and calculate the design moment strength (ultimate strength capacity “OMn”) of the beam section given below. 6 steel bar #11 are used, f' = 4700 psi and fy = 75,000 psi. Details of all calculations, stress profile, location of N.A., ... should be given and illustrated clearly. All units should be written for the found quantities. (20 points) 6 in. 20 in. 32 in. 6 #11 3 in. 3 in. 6 in. 6...
5. Determine the moment capacity of a doubly reinforced beam below. Use fy=60,000 psi and fc'= 4000 psi. b=20 AS =1.58 h=36" d=33 Las=1248 Doubly Reinforced Section
Problem 2 Determine the nominal moment capacity for the reinforced concrete beam shown. The beam cross section has a width 10 inch and a depth 20 inch. The beam is reinforced with a tension steel reinforcement of 3#8 with an area of steel # 2.37 inch Assume grade 60 steel with a yield strss, Fy 60 ksi d 20 3#8 2.37/ 2 As B-10"
Problem 2 Determine the nominal moment capacity for the reinforced concrete beam shown. The beam cross...
For the beam cross-section shown below, calculate the nominal moment carrying capacity (Mn) and design strength (Mn) using rectangular stress-block. Does the beam satisfy ACI tension-controlled failure requirement? Given:-60,000 psi andf",-5,000 psi, Ά,-4 in 1n As 16 in.
4. For the beam shown below,fe' = 4000 psi and fy = 60,000 psi. (20 points) (a) Compute the effective flange width at midspan. 911-6 in (a) Beam section and distance to adjacent beams Support (negative bending) Midspan positive bending) 7 No. 7 bars IIT 3 No. 8 plus 2 No. 7 bars at midspan 22 2 No. 8 bars at ends (b) Beam span supported by 18-in. wide columns (b) Compute Mn for the positive and negative-moment regions and...
Compute the design strength(positive moment), фМ., for the beam shown below. note that the beam shown is an independent beam, which does not bend in conjunction with any adjacent beam(s). The material strengths are as follows: Please l. f, - 60,000 psi 3,000 psi (30 pts.) Check the development length for the bar size shown (No. 8 bars). The bars are not epoxy coated and the concrete is normalweight concrete. Assume the simplified equation can be used. The bars are...
reinforced concrete
A. Select the required reinforcing steel for the following beam section for MD = 190 ft-k, ML = 390 ft-k, fy = 60,000 psi, f'c = 3,000 psi, bi = 54", bw = 15", tf = 3", and d = 24". Verify the section using the actual bar selection. Determine the required number of layers for the bars. Show a sketch of the cross section indicating bar sizes and bar layout. +3+ 15" - As we have discussed...
