Please show steps and explanation for 1a.
and 1b., thanks!
Homework Answers
Add Answer to:
Please show steps and explanation for 1a.
and 1b., thanks!

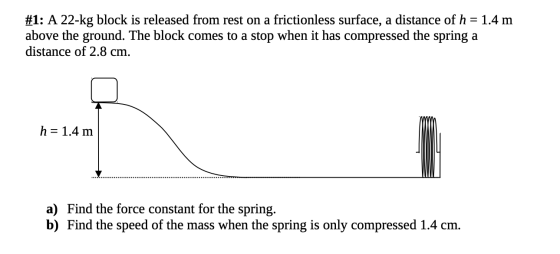

#1: A 22-kg block is released...
PHYS1030 Newtonian Mechanks QUESTION #10: A 22-kg block is held a rest against a spring of...
PHYS1030 Newtonian Mechanks QUESTION #10: A 22-kg block is held a rest against a spring of force constant k # 930 N/m as shown below. Initially the spring is compressed a distance of 15 em. When the block is released, it slides across a surface that is frictionless except for a rough patch of width 60.0 cm that has a coefficient of kinetic friction μ.-0.34. Find the block's speed (m/s): (a) before crossing the rough patch b)after crossing the rough...
1a. 1b. In the figure below, a block slides along a track from one level to...
1a.
1b.
In the figure below, a block slides along a track from one level to a higher level after passing through an intermediate valley. The track is frictionless until the block reaches the higher level. There a frictional force stops the block in a distance d. The block's initial speed is vo; the height difference is h and the coefficient of kinetic friction is Wk. Find d in terms of the given variables (use g where applicable). u-0- In...
In the figure(Figure 1) a 1.5 kg block is held at rest against a spring with...
In the figure(Figure 1) a 1.5 kg block is held at rest against a spring with a force constant k = 720 N/m . Initially, the spring is compressed a distance d. When the block is released, it slides across a surface that is frictionless except for a rough patch of width 5.0 cm that has a coefficient of kinetic friction μk = 0.45. Part A Find d such that the block's speed after crossing the rough patch is 2.4...
In the figure, a block of mass m = 11 kg is released from rest on...
In the figure, a block of mass m = 11 kg is released from rest on a frictionless incline of angle θ = 26°. Below the block is a spring that can be compressed 3.4 cm by a force of 320 N. The block momentarily stops when it compresses the spring by 5.3 cm. (a) How far does the block move down the incline from its rest position to this stopping point? (b) What is the speed of the block...
As shown in the figure below, a 2.25-kg block is released from rest on a ramp of height h.
As shown in the figure below, a 2.25-kg block is released from rest on a ramp of height h. When the block is released, it slides without friction to the bottom of the ramp, and then continues across a surface that is frictionless except for a rough patch of width 15.0 cm that has a coefficient of kinetic friction μk = 0.520. Find h such that the block's speed after crossing the rough patch is 4.20 m/s. An object with a...
1) A block of mass m = 0.52 kg is attached to a spring with force...
1) A block of mass m = 0.52 kg is attached to a spring with
force constant 119 N/m is free to move on a frictionless,
horizontal surface as in the figure below. The block is released
from rest after the spring is stretched a distance A = 0.13 m.
(Indicate the direction with the sign of your answer. Assume that
the positive direction is to the right.)
(a) At that instant, find the force on the block. N
(b)...
A block of mass m = 3.5 kg is on an inclined plane with a coefficient...
A block of mass m = 3.5 kg is
on an inclined plane with a coefficient of friction
μ1 = 0.31, at an
initial height h = 0.53 m above
the ground. The plane is inclined at an angle θ =
54°. The block is then compressed against
a spring a distance Δx = 0.11 m
from its equilibrium point (the spring has a spring constant of
k1 = 39 N/m) and
released. At the bottom of the inclined plane...
In the figure below, block-2 of mass M = 1 Kg is at rest on a...
In the figure below, block-2 of mass M = 1 Kg is at rest on a frictionless surface and touching the end of an un-stretched spring whose spring constant is 200 N/m. The other end of the spring is fixed to a wall. Block-1 of mass 2 Kg, travelling at speed v_1 = 4 m/s, collides with block-2 and the two blocks stick together. When the blocks momentarily stop, by what distance is the spring compressed?
A block with mass m = 16 kg rests on a frictionless table and is accelerated...
A block with mass m = 16 kg rests on a frictionless table and is accelerated by a spring with spring constant k = 5072 N/m after being compressed a distance x1 = 0.568 m from the spring’s unstretched length. The floor is frictionless except for a rough patch a distance d = 2.8 m long. For this rough path, the coefficient of friction is μk = 0.48. 1) How much work is done by the spring as it accelerates...
Block 2 (mass 1.10 kg) is at rest on a frictionless surface and touching the end...
Block 2 (mass 1.10 kg) is at rest on a frictionless surface and touching the end of an unstretched spring of spring constant 144 N/m. The other end of the spring is fixed to a wall. Block 1 (mass 1.70 kg), traveling at speed v1 = 3.60 m/s, collides with block 2, and the two blocks stick together. When the blocks momentarily stop, by what distance is the spring compressed? Answer 0.305 m My question is how did they solve...
PHYS1030 Newtonian Mechanks QUESTION #10: A 22-kg block is held a rest against a spring of force constant k # 930 N/m as shown below. Initially the spring is compressed a distance of 15 em. When the block is released, it slides across a surface that is frictionless except for a rough patch of width 60.0 cm that has a coefficient of kinetic friction μ.-0.34. Find the block's speed (m/s): (a) before crossing the rough patch b)after crossing the rough...
1a.
1b.
In the figure below, a block slides along a track from one level to a higher level after passing through an intermediate valley. The track is frictionless until the block reaches the higher level. There a frictional force stops the block in a distance d. The block's initial speed is vo; the height difference is h and the coefficient of kinetic friction is Wk. Find d in terms of the given variables (use g where applicable). u-0- In...
1) A block of mass m = 0.52 kg is attached to a spring with
force constant 119 N/m is free to move on a frictionless,
horizontal surface as in the figure below. The block is released
from rest after the spring is stretched a distance A = 0.13 m.
(Indicate the direction with the sign of your answer. Assume that
the positive direction is to the right.)
(a) At that instant, find the force on the block. N
(b)...
A block of mass m = 3.5 kg is
on an inclined plane with a coefficient of friction
μ1 = 0.31, at an
initial height h = 0.53 m above
the ground. The plane is inclined at an angle θ =
54°. The block is then compressed against
a spring a distance Δx = 0.11 m
from its equilibrium point (the spring has a spring constant of
k1 = 39 N/m) and
released. At the bottom of the inclined plane...
In the figure below, block-2 of mass M = 1 Kg is at rest on a frictionless surface and touching the end of an un-stretched spring whose spring constant is 200 N/m. The other end of the spring is fixed to a wall. Block-1 of mass 2 Kg, travelling at speed v_1 = 4 m/s, collides with block-2 and the two blocks stick together. When the blocks momentarily stop, by what distance is the spring compressed?
