An object is placed 46cm in front of a converging lens of focal length 5cm. Another...

An object is placed 46cm in front of a converging lens of focal length 5cm. Another converging lens of focal length 11cm is placed 31cm behind the first lens. a) Find the position of the final image with respect to the second lens. b) Find the magnification of the final image.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

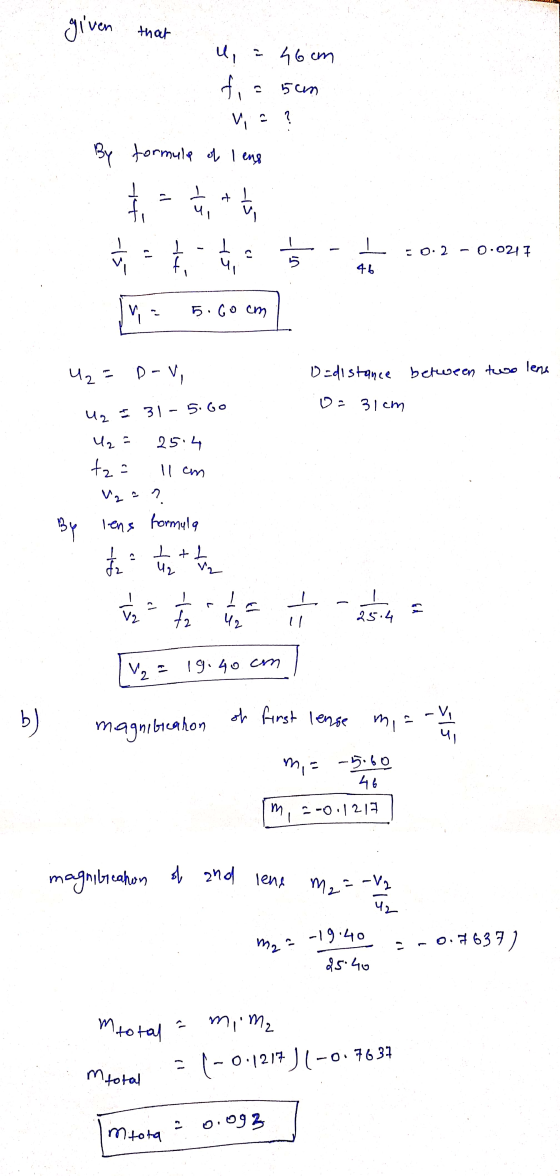

given that u = 46cm fi: 5cm VS ? By formule of leng 50.2 -0.0247 =, te Ś - M. 5.60cm U2 I 31-5.60 U₂= D-V, Badistance between
