An object is placed 14.2 cm from a first converging lens of focal length 10.5 cm....

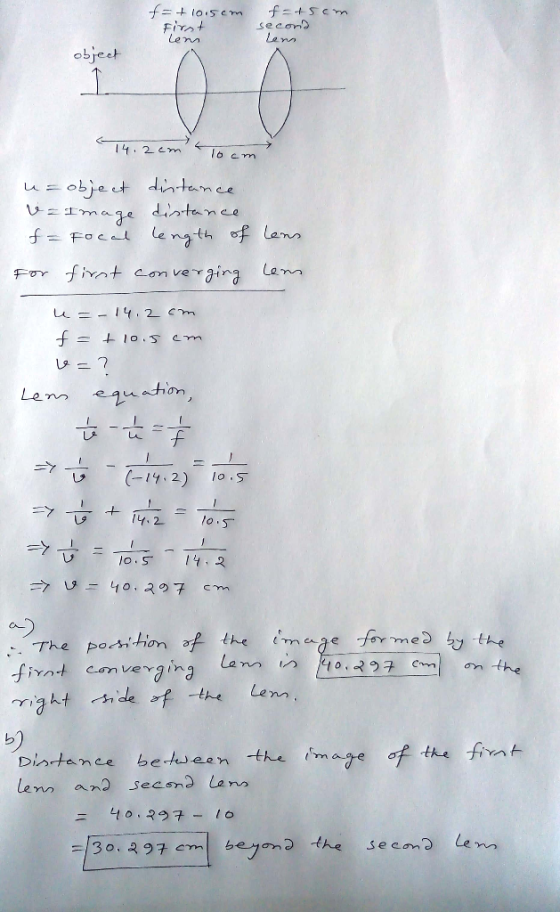

An object is placed 14.2 cm from a first converging lens of focal length 10.5 cm. A second converging lens with focal length 5.00 cm is placed 10.0 cm to the right of the first converging lens.
(a) Find the position q1 of the image formed
by the first converging lens. (Enter your answer to at least two
decimal places.)
cm
(b) How far from the second lens is the image of the first lens?
(Enter your answer to at least two decimal places.)
cm beyond the second lens

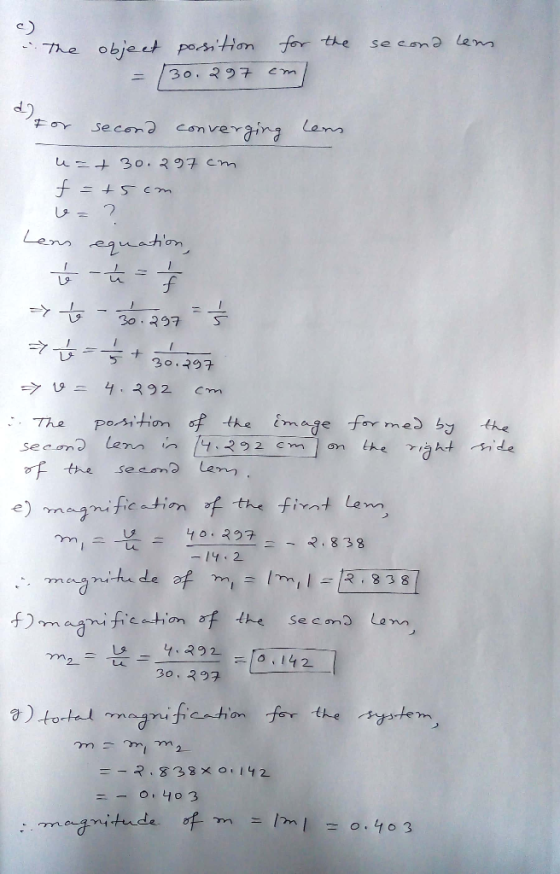

(c) What is the value of p2, the object
position for the second lens? (Enter your answer to at least two
decimal places.)
cm
(d) Find the position q2 of the image formed by
the second lens. (Enter your answer to at least two decimal
places.)
cm
(e) Calculate the magnification of the first lens.
(f) Calculate the magnification of the second lens.
(g) What is the total magnification for the system?
