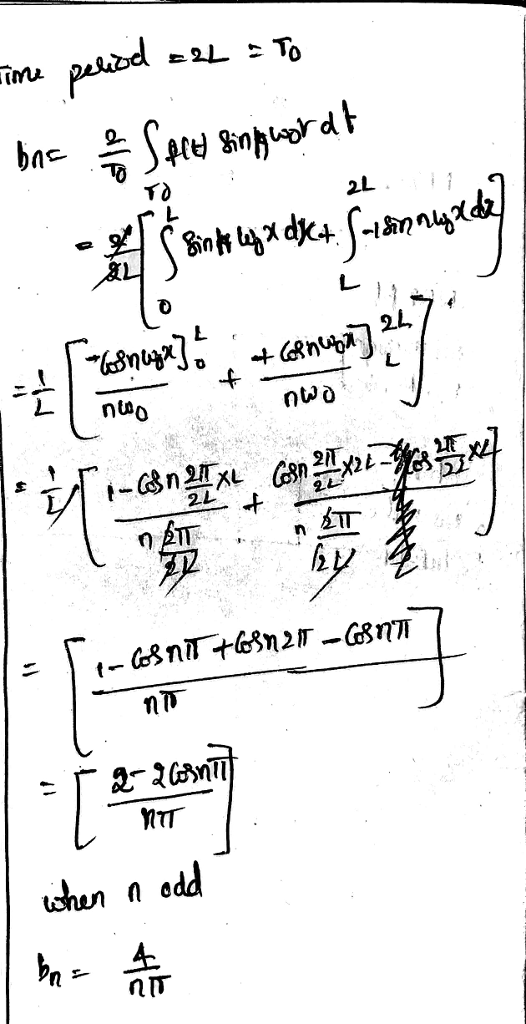

![Consider a square wave f(x) of length 2L over the range?0,2 L1 as shown in Figure l. Formally f(x) can be written as where H(x) is the Heaviside step function Since f(x) (2L x), the function is odd, such that aoan0 Find the Fourier series expansion bin] of the square wave given in Figure 1 and plot the summation of the first 7 (odd) terms of the series from n1 to n 13. Please provide the MATLAB code and plot along with your solution f (x)](http://img.homeworklib.com/questions/b3ece610-676f-11eb-bb1e-c5f7de56d2e3.png?x-oss-process=image/resize,w_560)
Homework Answers
Matlab Script:
L=1;
t=0:0.01:2*L;
w0=2*pi/(2*L);
xt =0;
for n=1:2:13
xt=xt+(4/(n*pi))*sin(n*w0*t);
end

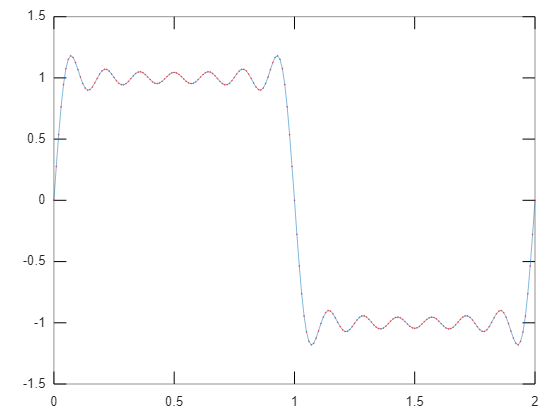

plot(t,xt);
