Homework Answers
Add Answer to:

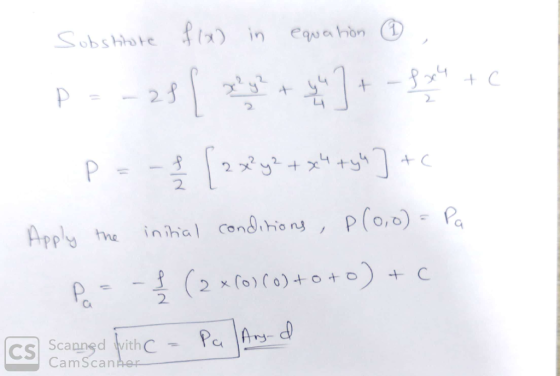

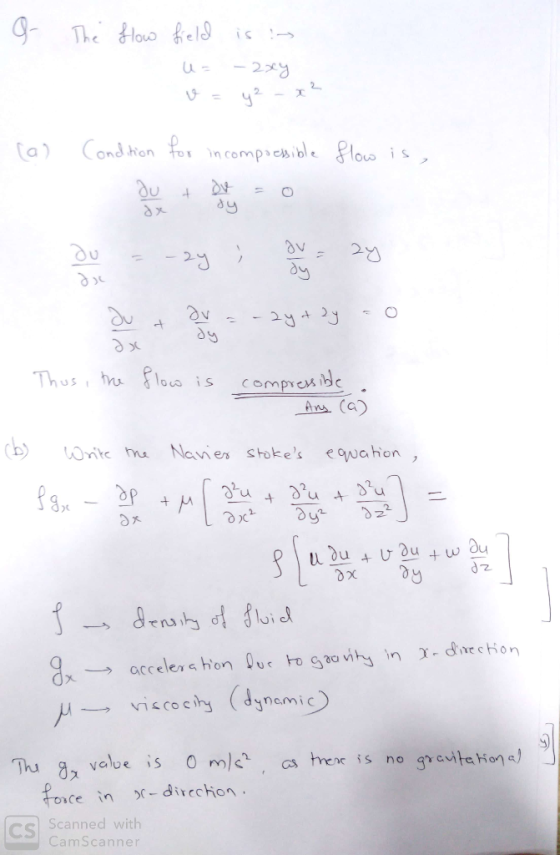

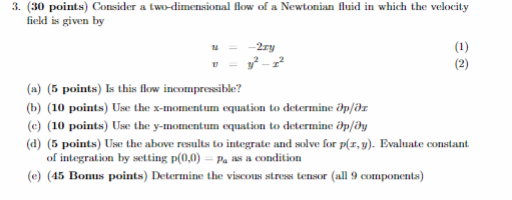

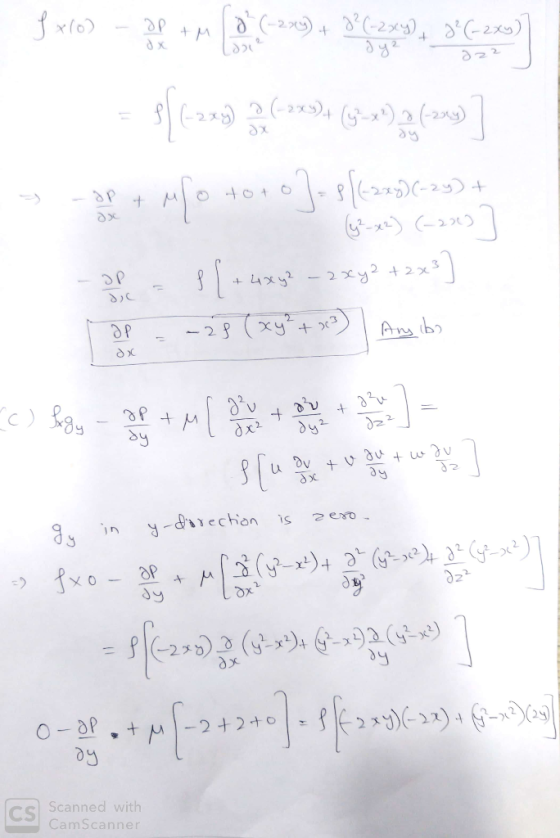

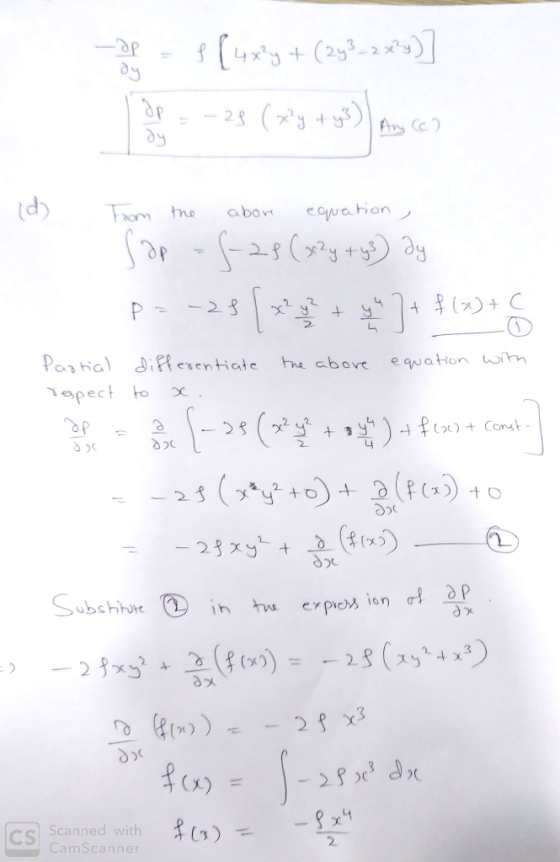

3. (30 points) Consider a two-dimensional flow of a Newtonian fluid in which the velocity field...
Consider the flow of a Newtonian fluid with the velocity field U-(-29) i + 02-r) j....
Consider the flow of a Newtonian fluid with the velocity field U-(-29) i + 02-r) j. Find the -x)j. Find the pressure field /tr, y) ir the pressure at point x-О.ye 0 is equal top.. Assume: The flow is two dimensional . The flow is incompressible . The flow is steady
Problem 3- For flow of an incompressible, Newtonian fluids between parallel plates, the velocity ...
Problem 3- For flow of an incompressible, Newtonian fluids between parallel plates, the velocity distribution between the plate is given by 1 dP 2μ dr where y is the direction from one plate (y-0) to another (y-w),and x is the direction of flow a) What is the expression for the rate of deformation matrix? b) What is the expression for the stress matrix? c) At the center of the flow y w/2, what is the direction of internal forcing due...
An incompressible Newtonian fluid flow through a horizontal circular tube is shown in the following figure....
An incompressible Newtonian fluid flow through a horizontal circular tube is shown in the following figure. We assume that the flow is steady, and its direction is parallel to the wall. By using the Navier-Stokes equations. determine the velocity profile and calculate the mean velocity and maximum velocity; Please give the details about how to simplify the N-S equation, how to integrate the simplified N-S equations with the proper boundary conditions, and the relationship between the mean velocity and maximum...
can you solve the last question (e) Q1. Consider a steady, two-dimensional, incompressible flow field has...
can you solve the last question
(e)
Q1. Consider a steady, two-dimensional, incompressible flow field has the velocity potential a) b) c) 2 (x-7)(x+y) Determine the velocity components and verify that continuity is satisfied. [4 marks] Verify that the flow is irrotational. [2 marks] Determine the corresponding stream function. [4 marks) Now, consider a steady, two-dimensional, incompressible flow defined by velocity components u = ax + b&v=-ay + cx, where a, b and care constants. Neglect gravity. d) e) Show...
PTUURBIJ + 5. Velocity field of a 2-dimensional flow motion of an inviscid and incompressible fluid...
PTUURBIJ + 5. Velocity field of a 2-dimensional flow motion of an inviscid and incompressible fluid is given by, u=x', v=y', w=0 a) Fluid velocity and the magnitude of velocity at a point M(-3,2). b) Fluid acceleration and its magnitude at a same point.
The velocity in a certain two-dimensional flow field is given by the equation: ✓ = 2xti...
The velocity in a certain two-dimensional flow field is given by the equation: ✓ = 2xti – 2 yı where the velocity is in ft/s when x, y, and t are in feet and seconds, respectively. (a) Is flow steady or unsteady (b) Determine the expression of acceleration (c) Check if the flow is compressible or incompressible (d) Check if the flow is rotational or irrotational (e) Sketch the streamlines of t= ls on a x-y plane W
3. Show that the velocity field with components (in spherical coordinates) K,-(4kr-3-2)cosa, pa-(2kr-3 +2)sin θ, ν, 0, k > 0,0 is a possible fluid velocity for an incompressible flow. For k 4,...
3. Show that the velocity field with components (in spherical coordinates) K,-(4kr-3-2)cosa, pa-(2kr-3 +2)sin θ, ν, 0, k > 0,0 is a possible fluid velocity for an incompressible flow. For k 4, determine the stagnation points of the flow, if any. Hint: For stagnation point (W.,Vo,V)-(0,0,0) @s 2
3. Show that the velocity field with components (in spherical coordinates) K,-(4kr-3-2)cosa, pa-(2kr-3 +2)sin θ, ν, 0, k > 0,0 is a possible fluid velocity for an incompressible flow. For k 4,...
C- A steady, incompressible, two-dimensional velocity field of a fluid is given by に(u, v) =...
C- A steady, incompressible, two-dimensional velocity field of a fluid is given by に(u, v) = (0.5 + 0.8x) velocity is in m/s. Determine: i+(1.5-0.8y) j where the x- and y-coordinates are in meters and the of 1-The stagnation point of the flow 2-The material acceleration at the point (x 2 m, y - 3m).
Question 2 Figure 2: Flow between two inclined plates Consider a two-dimensional plates, as shown in...
Question 2 Figure 2: Flow between two inclined plates Consider a two-dimensional plates, as shown in figure 2. Assume that pressure increases 30°. Acceleration due t o Pa and the channel height is h 10 cm inclined at te the velocity profile of the flow. State your assumptions and show your work. onal Newtonian, steady state, incompressible flow of a fluid be- by 1 kPa/ a dynamic viscosity of H1-1 x 10 amic viscosity of uo wall towards the right....
Problem 3. A 2D velocity field for an incompressible Newtonian fluid is given by u 12xy-62.3,...
Problem 3. A 2D velocity field for an incompressible Newtonian fluid is given by u 12xy-62.3, u = 18x2y-4y3, where the velocity has unit m/s and x and y are in meters. (a) Determine the normal stresses ơzz and ơuy, and shear stress Try at the point x-1 m, y 1 m, where the pressure at this point is 6 kPa and dynamic viscosity is 1 Pa.s. (b) Sketch the magnitude and direction of the stress components.
Consider the flow of a Newtonian fluid with the velocity field U-(-29) i + 02-r) j. Find the -x)j. Find the pressure field /tr, y) ir the pressure at point x-О.ye 0 is equal top.. Assume: The flow is two dimensional . The flow is incompressible . The flow is steady
Problem 3- For flow of an incompressible, Newtonian fluids between parallel plates, the velocity distribution between the plate is given by 1 dP 2μ dr where y is the direction from one plate (y-0) to another (y-w),and x is the direction of flow a) What is the expression for the rate of deformation matrix? b) What is the expression for the stress matrix? c) At the center of the flow y w/2, what is the direction of internal forcing due...
An incompressible Newtonian fluid flow through a horizontal circular tube is shown in the following figure. We assume that the flow is steady, and its direction is parallel to the wall. By using the Navier-Stokes equations. determine the velocity profile and calculate the mean velocity and maximum velocity; Please give the details about how to simplify the N-S equation, how to integrate the simplified N-S equations with the proper boundary conditions, and the relationship between the mean velocity and maximum...
can you solve the last question
(e)
Q1. Consider a steady, two-dimensional, incompressible flow field has the velocity potential a) b) c) 2 (x-7)(x+y) Determine the velocity components and verify that continuity is satisfied. [4 marks] Verify that the flow is irrotational. [2 marks] Determine the corresponding stream function. [4 marks) Now, consider a steady, two-dimensional, incompressible flow defined by velocity components u = ax + b&v=-ay + cx, where a, b and care constants. Neglect gravity. d) e) Show...
PTUURBIJ + 5. Velocity field of a 2-dimensional flow motion of an inviscid and incompressible fluid is given by, u=x', v=y', w=0 a) Fluid velocity and the magnitude of velocity at a point M(-3,2). b) Fluid acceleration and its magnitude at a same point.
The velocity in a certain two-dimensional flow field is given by the equation: ✓ = 2xti – 2 yı where the velocity is in ft/s when x, y, and t are in feet and seconds, respectively. (a) Is flow steady or unsteady (b) Determine the expression of acceleration (c) Check if the flow is compressible or incompressible (d) Check if the flow is rotational or irrotational (e) Sketch the streamlines of t= ls on a x-y plane W
3. Show that the velocity field with components (in spherical coordinates) K,-(4kr-3-2)cosa, pa-(2kr-3 +2)sin θ, ν, 0, k > 0,0 is a possible fluid velocity for an incompressible flow. For k 4, determine the stagnation points of the flow, if any. Hint: For stagnation point (W.,Vo,V)-(0,0,0) @s 2
3. Show that the velocity field with components (in spherical coordinates) K,-(4kr-3-2)cosa, pa-(2kr-3 +2)sin θ, ν, 0, k > 0,0 is a possible fluid velocity for an incompressible flow. For k 4,...
C- A steady, incompressible, two-dimensional velocity field of a fluid is given by に(u, v) = (0.5 + 0.8x) velocity is in m/s. Determine: i+(1.5-0.8y) j where the x- and y-coordinates are in meters and the of 1-The stagnation point of the flow 2-The material acceleration at the point (x 2 m, y - 3m).
Question 2 Figure 2: Flow between two inclined plates Consider a two-dimensional plates, as shown in figure 2. Assume that pressure increases 30°. Acceleration due t o Pa and the channel height is h 10 cm inclined at te the velocity profile of the flow. State your assumptions and show your work. onal Newtonian, steady state, incompressible flow of a fluid be- by 1 kPa/ a dynamic viscosity of H1-1 x 10 amic viscosity of uo wall towards the right....
Problem 3. A 2D velocity field for an incompressible Newtonian fluid is given by u 12xy-62.3, u = 18x2y-4y3, where the velocity has unit m/s and x and y are in meters. (a) Determine the normal stresses ơzz and ơuy, and shear stress Try at the point x-1 m, y 1 m, where the pressure at this point is 6 kPa and dynamic viscosity is 1 Pa.s. (b) Sketch the magnitude and direction of the stress components.
