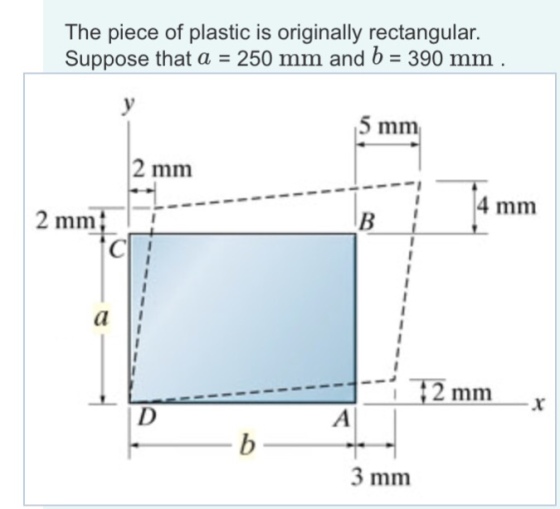

The piece of plastic is originally rectangular. Suppose that a-250 mm and 6 390 mm 5...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

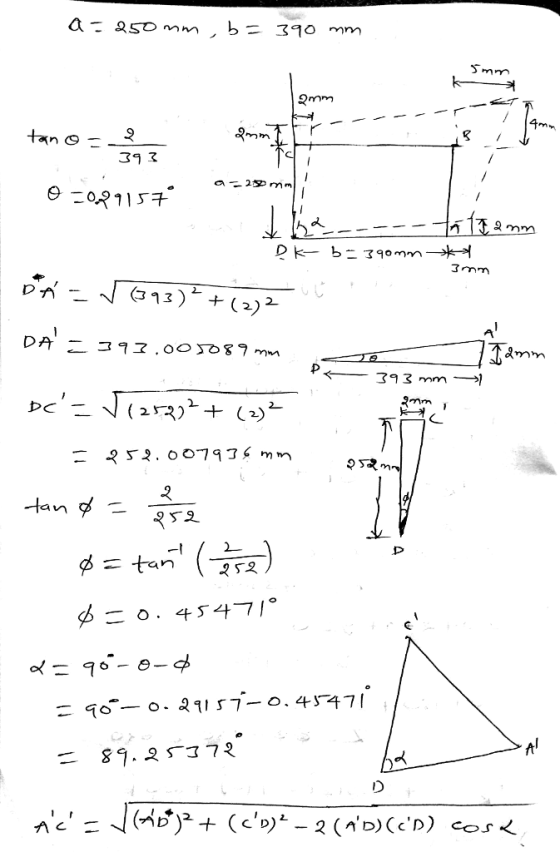

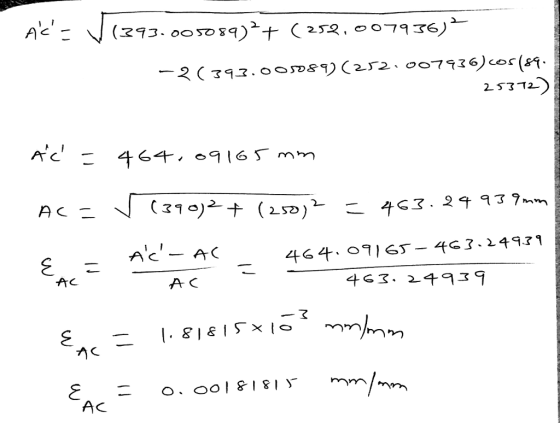

3 mm DA DAニコ9ュ.oo o 8 9mm ←一393mm → 0. 454-7 | a - 1o

Answer 2

Similar Homework Help Questions

7. The piece of plastic is originally rectangular. If the plastic distorts as shown by the...

7. The piece of plastic is originally rectangular. If the plastic distorts as shown by the dashed lines, determine a) The shear strain Vay at corner D. b) The average normal strain along diagonal DB. 6 mm 2 mm 4 mm 1 mm 200 mm 0.75 mm 450 mm 2 mm
Question 7-98 7-99 The piece of plastic is originally rectangular. Determine the shear strain gamma xy at corners D...

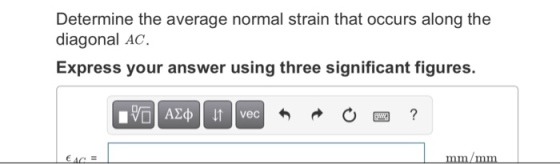

Question 7-98 7-99 The piece of plastic is originally rectangular. Determine the shear strain gamma xy at corners D and C if the plastic distorts as shown by the dashed lines. The piece of plastic is originally rectangular. Determine the average normal strain that occurs along the diagonals AC and DB.
Problem #3: The piece of rubber is originally rectangular. Determine the average shear strain Yxy at...

Problem #3: The piece of rubber is originally rectangular. Determine the average shear strain Yxy at A if the corners B and D are subjected to the displacements that cause the rubber to distort as shown by the dashed lines. 5mm 400mm 2mm B 300mm

Review Consider the channel shown in (Figure 1). Suppose that a = 390 mm, b =...

Review Consider the channel shown in (Figure 1). Suppose that a = 390 mm, b = 230 mm, c = 40 mm. Part B Determine the moment of inertia of the area about this axis. Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 HAO ? 4 1 - 1050000 mm Submit Previous Answers Request Answer * Incorrect; Try Again; 5 attempts remaining Provide Feedback Next > Pearson
You purchase a rectangular piece of metal that has dimensions 10.0 mm × 10.0 mm ×...

You purchase a rectangular piece of metal that has dimensions 10.0 mm × 10.0 mm × 25.0 mm and mass 1.92×10−2 kg . The seller tells you that the metal is gold. To check this, you compute the average density of the piece. What value do you get? Were you cheated? yes or no 6 of 15 Constants You are designing a hydraulic lift for an automobile garage. It will consist of two oil-filled cylindrical pipes of different diameters. A...
15 mm 30 mm 6 mm 15 mm 800 mm 250 mm 250 mm Take Eal...

15 mm 30 mm 6 mm 15 mm 800 mm 250 mm 250 mm Take Eal = 70 GPa. Part A Determine the elongation of the aluminum strap when it is subjected to an axial force of P = 25 kN. Express your answer to three significant figures and include appropriate units. 2: Å * A O O ? 8= 2.167 mm Submit Submit Previous Answers Request Answer

15 mm 50 mm 6 mm 15 mm 1800 mm 250 mm 250 mm Take Eal...

15 mm 50 mm 6 mm 15 mm 1800 mm 250 mm 250 mm Take Eal = 70 GPa. Part A Determine the elongation of the aluminum strap when it is subjected to an axial force of P=36 kN Express your answer to three significant figures and include appropriate units. CHA MO O ? = 2.21 mm Submit Previous Answers Request Answer X Incorrect; Try Again; 2 attempts remaining
The plastic distorts as shown by the dashed lines.The dimensions are L=460 mm,H=345 mm, d1=3 mm, d2=5 mm,d3=15 mm, d4=...

The plastic distorts as shown by the dashed lines.The dimensions are L=460 mm,H=345 mm, d1=3 mm, d2=5 mm,d3=15 mm, d4=8 mm, d5=3 mm, and d6=6 mm. Determine the shear strain ?xy at corner C. Determine the shear strain ?xy at corner D.
The H-beam is made of an elastic-plastic material for which σy = 400 MPa. Find the plastic moment...

The H-beam is made of an elastic-plastic material for which σy = 400 MPa. Find the plastic moment Mp and the maximum elastic moment Me and determine the shape factor for the cross section of the H-beam. Also, determine the residual stresses in the top and bottom of the beam after the plastic moment MP is applied and then released. Question 4 a The H-beam is made of an elastic-plastic material for which oy 400 MPa. Find the plastic moment...

(a) The H-beam is made of an elastic-plastic material for which σy = 400 MPa. Find the plastic mo...

(a) The H-beam is made of an elastic-plastic material for which σy = 400 MPa. Find the plastic moment Mp and the maximum elastic moment Me and determine the shape factor for the cross section of the H-beam. Also, determine the residual stresses in the top and bottom of the beam after the plastic moment MP is applied and then released. (b) The continuous beam shown in Figure is made of the same cross section as in part a and...
