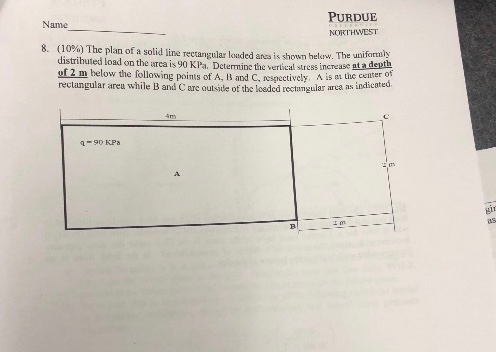

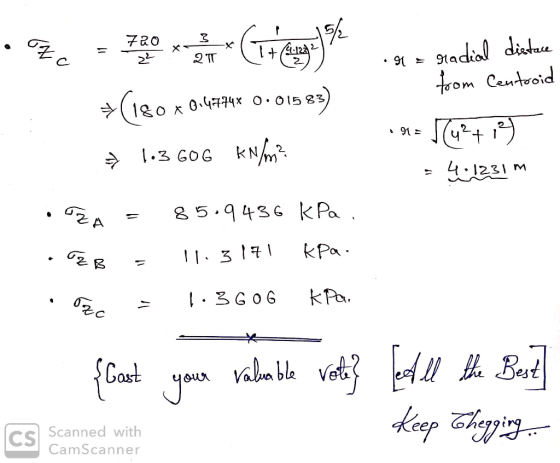

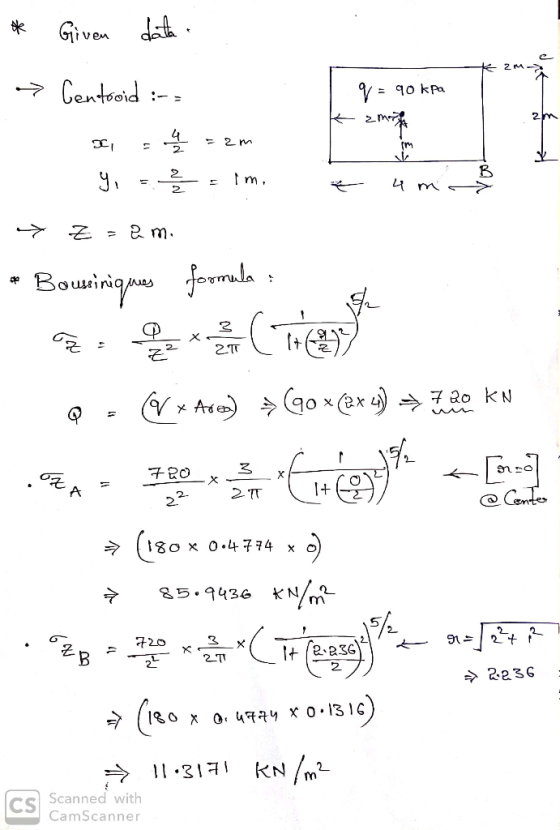

PURDUE NORTHIVEST Name (10%) The plan of a solid line rectangular loaded area is shown helow....
Problem IV (25%) KN force is uniformly distributed over a rectangular footing of size 3x2m shown ...
Problem IV (25%) KN force is uniformly distributed over a rectangular footing of size 3x2m shown c footing at D under the totat of 600 force below. Determine the vertical stress increase at a depth of 2m center. If another footing of size 3xlm with a total load of 400 KN is constructed adjoining the previous ootina what is the additional stress at point D at the same depth due to the construction of the nd footing? Fodting 1 2...
4. A 10 ft diameter flexible loaded area is subjected to a uniform pressure of 1200...
4. A 10 ft diameter flexible loaded area is subjected to a uniform pressure of 1200 lb/ft?. Plot the variation of the vertical stress increase beneath the center with a depth from 0 to 20ft. (20 points)
Solve only for point C and use Newmark Chart method. Ilyur 10. TU 10.17 Refer to...
Solve only for point C and use Newmark Chart method.
Ilyur 10. TU 10.17 Refer to Figure 10.47. A flexible rectangular area is subjected to a uniformly distributed load of g = 330 kN/m². Determine the increase in vertical stress, Ao,, at a depth of z = 6 m under points A, B, and C. - 18 m- 7.2 m 9 m 3.6 m ---- q=330 kN/m2
A high-rise structure is to be built over the soil profile shown below. The proposed rectangular...
A high-rise structure is to be built over the soil profile shown below. The proposed rectangular foundation footprint is 20 m x 40 m and is uniformly loaded with 800 kPa. A piezometer was installed in the ground directly below the center of the foundation at a depth of 10 m (below the ground surface) prior to construction to monitor pore water pressure. Using a unit weight of water equal to 10 kN/m], answer questions 6, 7, 8, 9, 10,...
A rectangular cross section at a location along a beam in bending is
(a). A rectangular cross section at a location along a beam in bending is acted upon by a bending moment and a shear force. The cross section is \(120 \mathrm{~mm}\) wide, \(300 \mathrm{~mm}\) deep and is orientated such that it is in bending about its major axis of bending. The magnitudes of the bending moment and shear force are \(315 \mathrm{kNm}\) and \(240 \mathrm{kN}\) respectively. Determine the maximum bending and shear stresses on the cross section. Plot the bending and...
Question 1 The motor shown in Fig. 1 supplies power to Gear C through solid steel...
Question 1 The motor shown in Fig. 1 supplies power to Gear C through solid steel motor shaft GF (having a diamet of 200 mm) and Gear F. The torque delivered to Gear C is 200 kNm. Gears A, B, D and E supply powers to er three machines. The torques delivered by gear A, gear B and gear E to the machines are 60 kNm, 30 kNm and 40 kNm, respectively. Shaft ABCDE is also made of steel (G...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
The administration of President Barack Obama has made Patient Protection and Affordable Care Act, often called...
The administration of President Barack Obama has made Patient Protection and Affordable Care Act, often called “Obamacare”, its chief domestic accomplishment and the centerpiece of Obama’s legacy. Essential to Obama’s health care reform plan is Healthcare.gov, a health insurance exchange Web site that facilitates the sale of private health insurance plans to U.S. residents, assists people eligible to sign up for Medicaid, and has a separate marketplace for small businesses. The site allows users to compare prices on health insurance...
Problem IV (25%) KN force is uniformly distributed over a rectangular footing of size 3x2m shown c footing at D under the totat of 600 force below. Determine the vertical stress increase at a depth of 2m center. If another footing of size 3xlm with a total load of 400 KN is constructed adjoining the previous ootina what is the additional stress at point D at the same depth due to the construction of the nd footing? Fodting 1 2...
4. A 10 ft diameter flexible loaded area is subjected to a uniform pressure of 1200 lb/ft?. Plot the variation of the vertical stress increase beneath the center with a depth from 0 to 20ft. (20 points)
Solve only for point C and use Newmark Chart method.
Ilyur 10. TU 10.17 Refer to Figure 10.47. A flexible rectangular area is subjected to a uniformly distributed load of g = 330 kN/m². Determine the increase in vertical stress, Ao,, at a depth of z = 6 m under points A, B, and C. - 18 m- 7.2 m 9 m 3.6 m ---- q=330 kN/m2
A high-rise structure is to be built over the soil profile shown below. The proposed rectangular foundation footprint is 20 m x 40 m and is uniformly loaded with 800 kPa. A piezometer was installed in the ground directly below the center of the foundation at a depth of 10 m (below the ground surface) prior to construction to monitor pore water pressure. Using a unit weight of water equal to 10 kN/m], answer questions 6, 7, 8, 9, 10,...
Question 1 The motor shown in Fig. 1 supplies power to Gear C through solid steel motor shaft GF (having a diamet of 200 mm) and Gear F. The torque delivered to Gear C is 200 kNm. Gears A, B, D and E supply powers to er three machines. The torques delivered by gear A, gear B and gear E to the machines are 60 kNm, 30 kNm and 40 kNm, respectively. Shaft ABCDE is also made of steel (G...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
