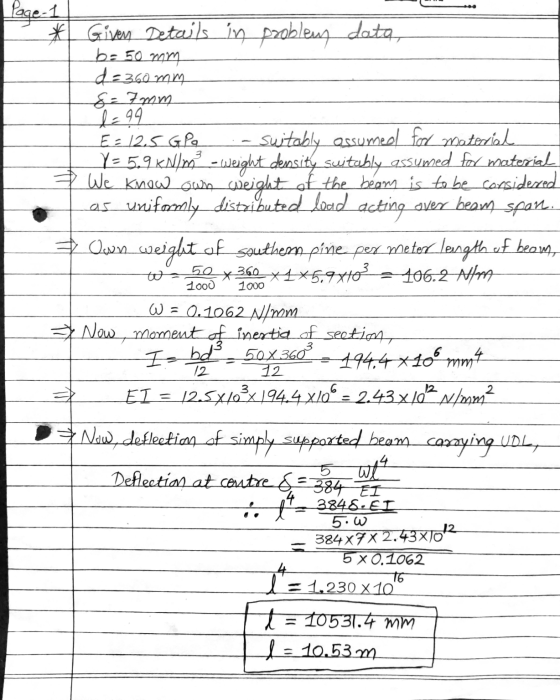

Please refer below image for the solution of given problem data.
A step by step easy to understand solution is provided.
Certain data required for the calculation has been assumed suitably for given material case.
Hope this will be helpful to you and will clear your concept.
Don't forget to rate the answer.

*** Please do rate my answer and let me know whether it is helpful to you or not. ***

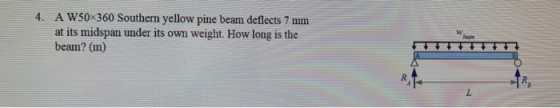

4. A W50X360 Southern yellow pine beam deflects 7 mm at its midspan under its own...
