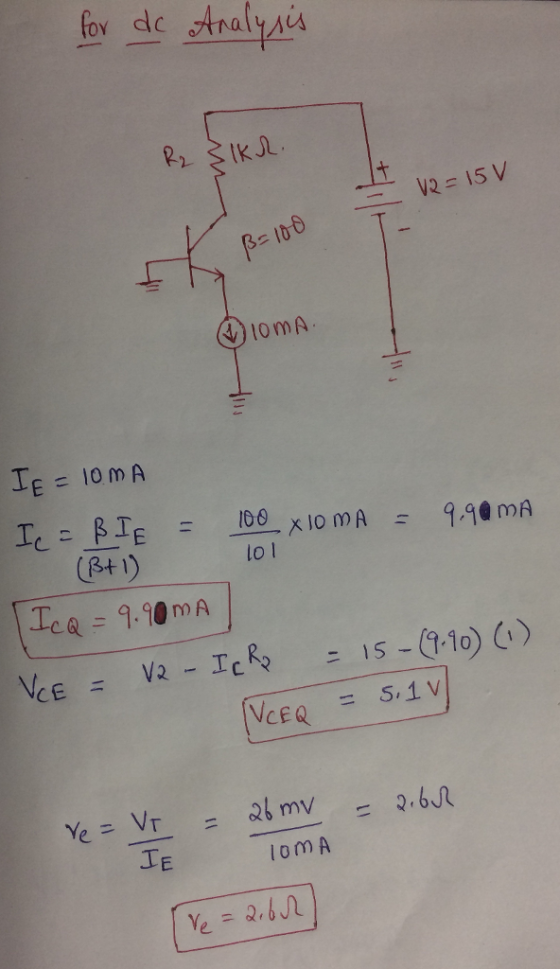

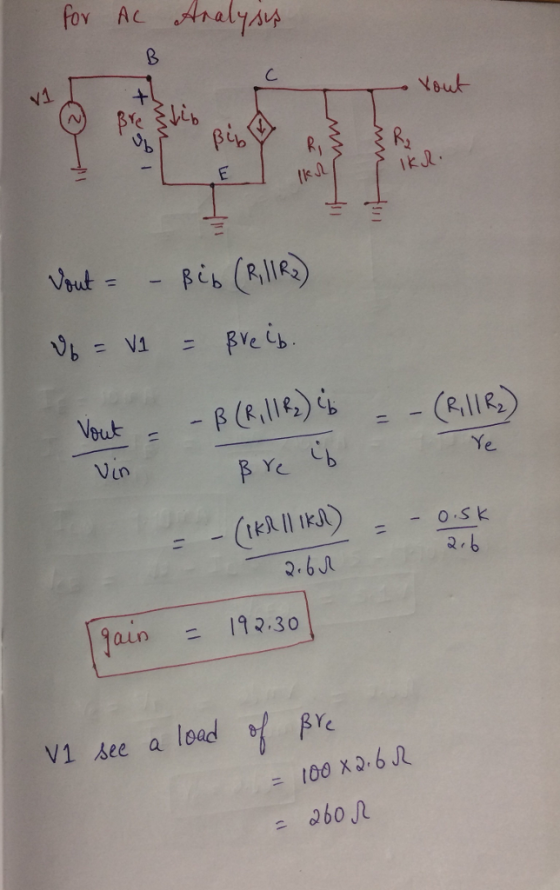

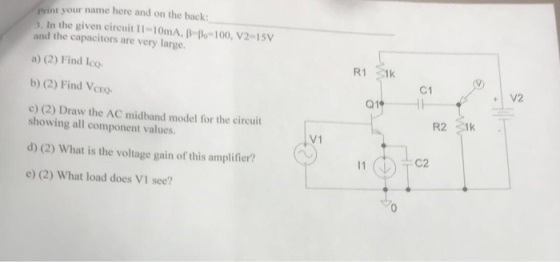

your name here and on the back: In the given circuit 11-10mA, B- po 100, V2-15V...
1. Find the operating point of the circuit below assuming the op amp is ideal 2. Estimate the midband voltage gain Avs-vo v, 3. Choose values for C1 and C2 so that the pole frequency associated with Ci is 1 Hz and the pole frequency associated with C is 400 Hz. 4. At what frequency fz does a zero occur? 6. Why does the amplifier's gain drop at high frequencies? C2 R1 R2 99K C2] 2K param C2 0.1uF U1...
Problem # 3 For the summing opamp circuit, assume that the opamp is powered with +15V and-15V. The input voltages are VI and V2 and the output voltage is Vout. Rf 15 V U1 R1 R2 Vout 741 V2 (A -15 V 1. Find the relation between the output Vout and the inputs VI and V2 2. Assume that RI-2kS2, R2-3 ㏀ and Rf-6kS2, Vin is a sinewave with viinpp-2V, V2DC- IV, plot Vin() and Vout(0) 3. Assume that you...
2. If the voltage gain of the amplifier is m (50 points) easured to be 50 dB, what is the value of Ru? R8 4.7 Ω C5 R6 R3 4.7kQ c3 R1 Q2 20pF 2N2222A 20pF C1 Q1 2N2222A V1 15V RL R9 1200 R4 V2 5mVpk R2 0° 120Ω R7 1kHz 22ka C4 R5 C2 3300.3 100 F 300 100uF
2. If the voltage gain of the amplifier is m (50 points) easured to be 50 dB, what is...
1-Clear handwriting
2-Correct answer
3-Organized
4-answer all the questions
Please
Problem 2 On the circuit on Figure P2, transi stor Q1 has a threshold voltage of Vt = 2 V and a transconductance parameter of k = 100 mA/V2. Note that Vcc = -Vee = 4.5 V. Moreover, capacitors C1, C2, and C3 can be assumed to be very large VDD 4.5.0 R3 25kQ R1 300kn C2 Vout C1 Rsig Q1 1k0 R2 200kn Vsig (R4 2kQ C3 -4.5V VSS...
Problem 2: In the circuit on Figure P2, BJT NPN Q1 and Q2 emulate a Darlington Pair (DP). It should be noted that Q1 and Q2 are such that their current gains are B1 B2 = B = 99. Moreover, capacitors C1 and C2 can be assumed to be very large. Note: The DC analysis of the DP circuit below can be done in a similar fashion as what you do when only dealing with one transistor. Express the current...
R1 C1 HH The V1 R2 11 R3 circuit shown is a simplified representation of a small signal transistor amplifier circuit. The AC input voltage is V1, with angular frequency w. The current through R2, is It. The dependent current source, 11, has value 100 IV. Let R1 = 500, and R2 = 1000. The load resistor, R3 has a value that is selectable by a design engineer. Let C1 = 10 pF, and L1 = 1 uH. (For reference,...
Consider the circuit on Figure P3. The characteristics of transistor 04 are IVA 200 V, with VA denoting the Early Voltage, V 1V for threshold voltage, and k 16mA/V2 for transconductance parameter Before starting: What type of transistor is Q4 in Figure P3? Assuming 04 is in saturation, derive and calculate the amplifier's voltage gain Av- vQut/vsig knowing that a pC measurement of the drain voltage reveals Vo 2 V. Capacitors C1 and C2 (on Figure P3) can be assumed...
1. Design the common source amplifier shown in Figure 1 with Ip- 1 mA and Vo 5 V Determine V2 and Ri. The MOSFET characteristics are V-50 V, k-0.093 A/V, gate-to- drain capacitance, Cd 40 pF, and Vi 1.1 V. (For PSpice simulations, use parameters: VTO. 1.1 LAMBDA-002 KP-0.093 CGDO-4E-7 w=100u L-I00u for the 2N7000 MOSFET.) a. Determine the gain and gm of the circuit b. Determine the low-frequency (high-pass response) poles of the common-source amplifier due to the coupling...
ECE 311 Test 1 Problem 3 3/9/11 Name In the given circuit, R2=100K, R?=1K, V2 = 25V, lima and the Zener diode has a breakdown voltage of 10 volts. The transistor has a ? of 100, Assume that a forward-biased diode has a .7V drop. R1 1k D4 a. Find V. b. Find VCE c. What is the operating mode of Q1? d. What is VCE if Vz=15V? e. If V1--1V, what is the operating mode of Q1? R2D3 D2...
Use Exact Analysis Use 4 decimal places, no commas. a. VCC = 15V b. R1 = 55 kΩ c. R2 = 15 kΩ d. RC = 2.5 kΩ e. RE = 1.5 kΩ f. RS = 15 Ω g. RL = 500 Ω h. βDC = 50 i. βac = 100 Single-stage, voltage-divider biased, common-emitter with **C1 and C2 are coupling capacitors. C3 is bypass capacitor Given: A. VB = [a] V ; B. VE = [b] V ; C....
