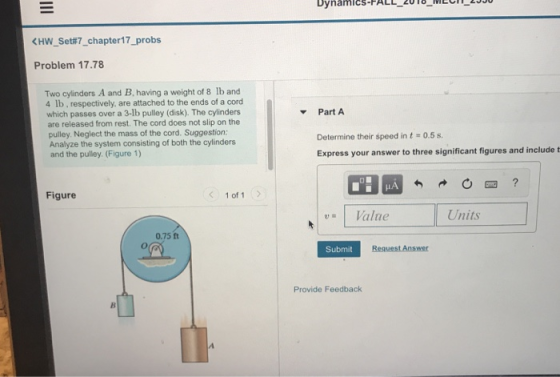

KHw-set#7-chapter17-probs Problem 17.78 Two cylinders A and B, having a weight of 8 lb and 4...
Two cylinders A and B, having a weight of 44.5 N and 22.25 respectively, are attached...

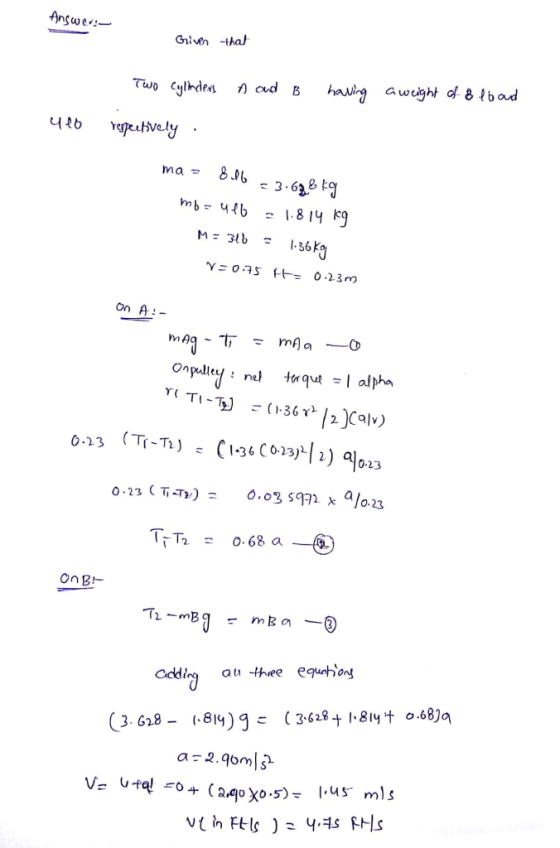

Two cylinders A and B, having a weight of 44.5 N and 22.25 respectively, are attached to the ends of a cord which passes over a 1.36 kg pulley (disk). If the cylinders are released from rest, determine their speed at t = 0.5 secs. The cord does not slip on the pulley. Neglect the mass of the cord. 4. 0.23 m
