Homework Answers
Add Answer to:

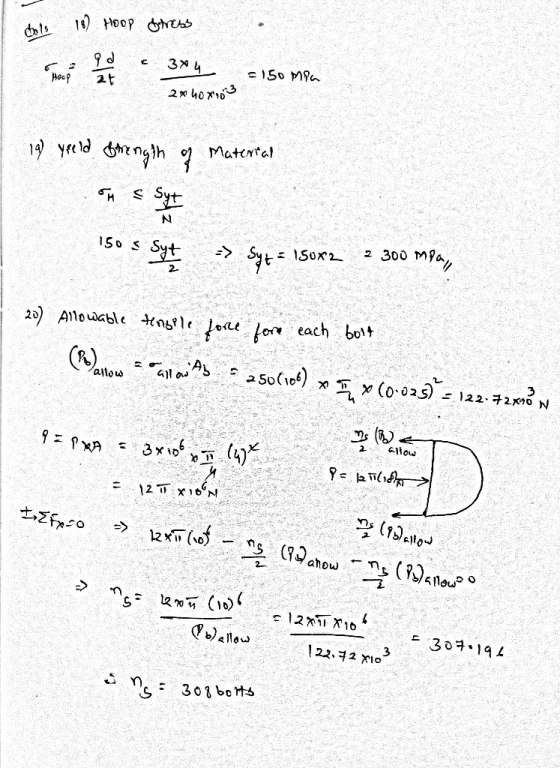

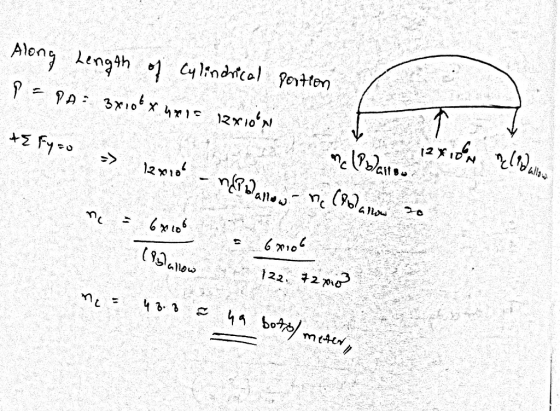

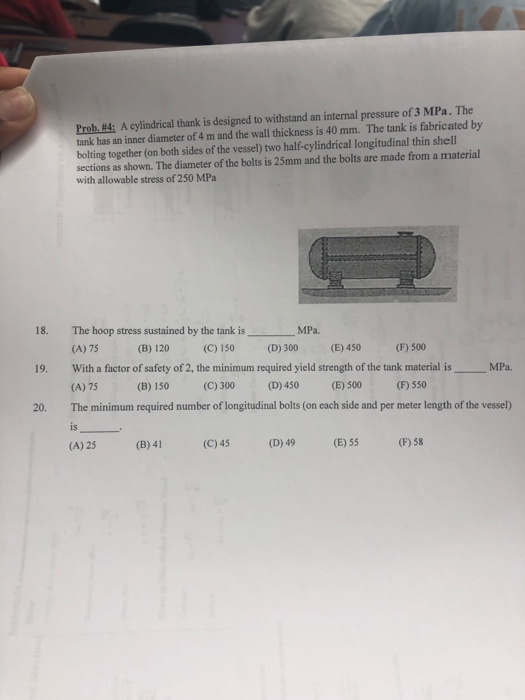

Prob #4 A cylindrical thank is designed to withstand an internal pressure of3 MPa. The tank...
