Question

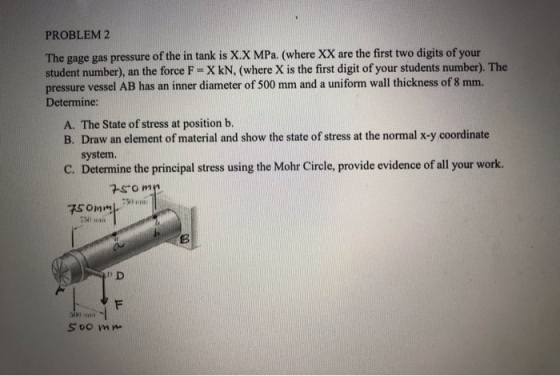

PROBLEM 2 The gage gas pressure of the in tank is X.X MPa. (where XX are the first two digits of your student number), an the force F=XKN, (where X is the first digit of your students number). The pressure vessel AB has an inner diameter of 500 mm and a uniform wall thickness of 8 mm. Determine: A. The State of stress at position b. B. Draw an element of material and show the state of stress at the normal x-y coordinate system. C. Determine the principal stress using the Mohr Circle, provide evidence of all your work. 7-som 750mm D F 500 mm

Answer 1

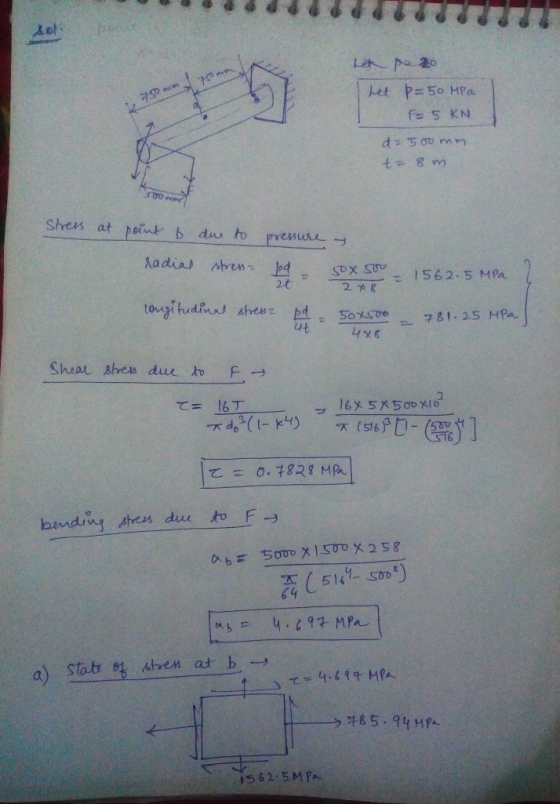

2013 70 mm het p=50 MPa = 5 KN de 500 mm t = 8 m 500 mm Stress at point b due to pressure y radial spren- lod 2t 2 x 8 longitudinal stresse ed 50x5th 446 Sox 50 1562.5 MPa 781.25 MPa Shear stress due to F → 16x5x500x10? T= 167 do? (1-44) a (5169 D-Connah'] T= 0.7828 MP to F bending stress due ab 5000 x 1500 X 258 5 ( 5169-5008) abs 4.697 MPa State of stress at b 2-4.694 MPa 1785.94 MPa 1562.5MPa

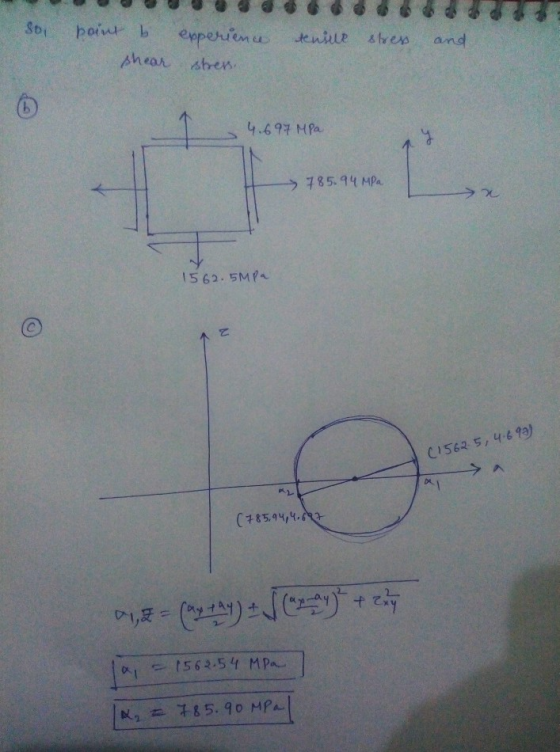

Soi point b experience tensule stress, shear stress. and 4.697 MPa 785.94 MPa 1562.5Mpa と (1562.5, 4.690) A (785,94,4.597 21,2 = (nyt) Cy) + zby x = 156 2.54 MPa x2 = 785.90 MPa
hope , it will helps u!!?
