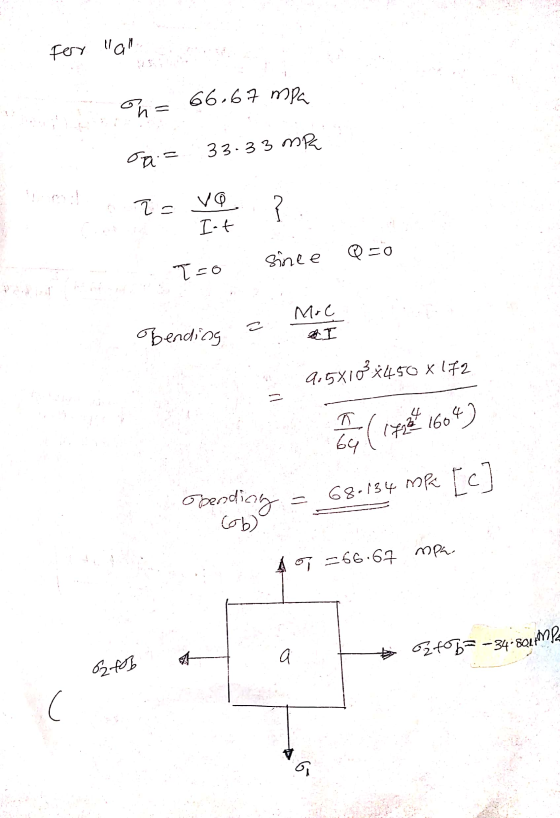

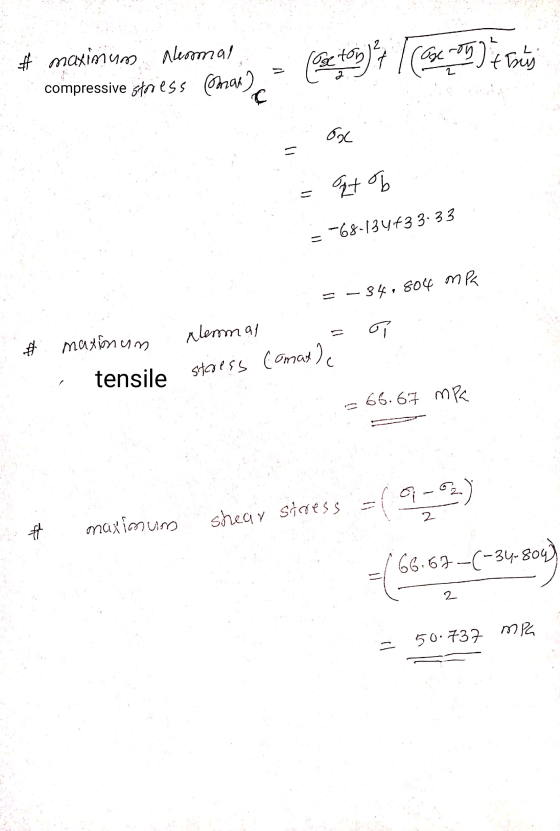

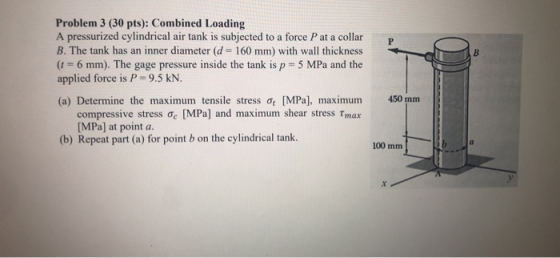

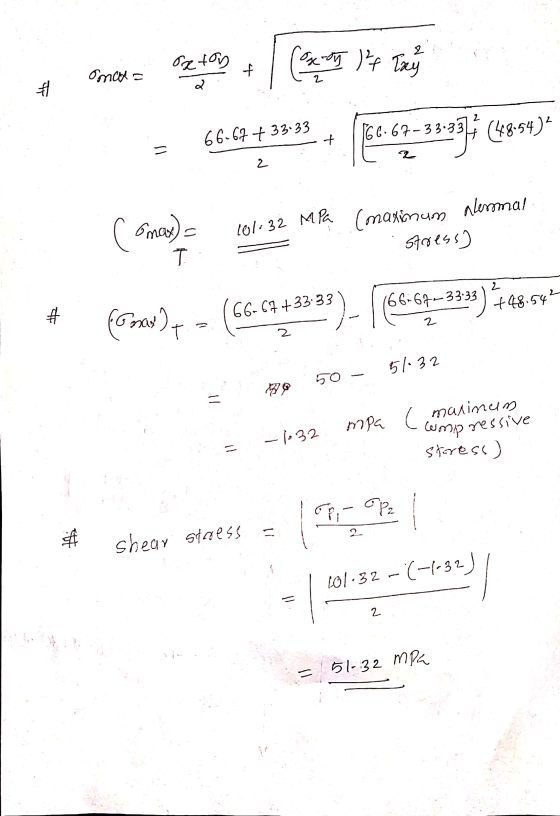

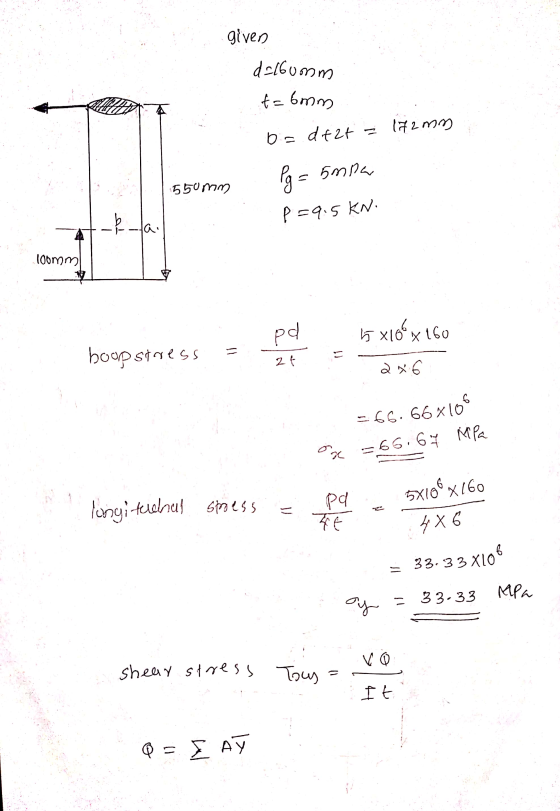

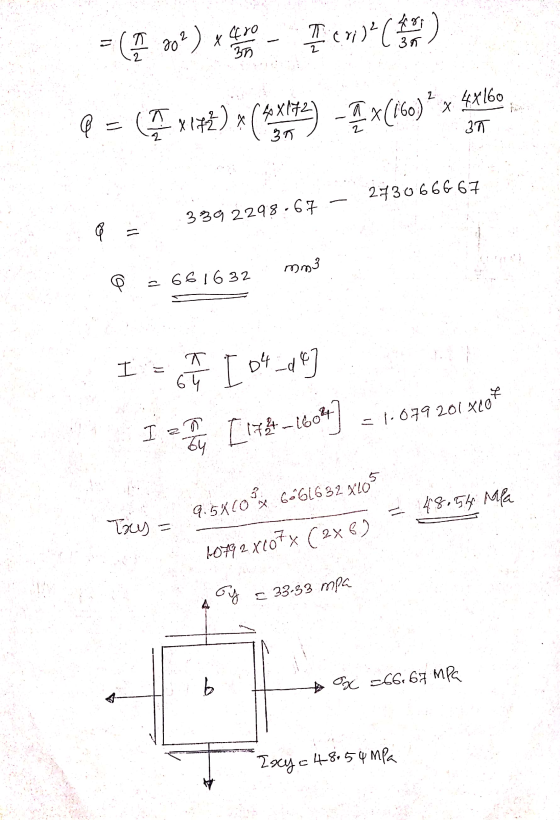

P Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to a force P at a collar B. The tank has an inner diameter (d= 160 mm) with wall thickness (t = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P=9.5 kN. B 450 mm (a) Determine the maximum tensile stress 0 [MPa], maximum compressive stress oc [MPa] and maximum shear stress Tmax [MPa] at point...
P B A pressurized cylindrical air tank is subjected to a force P at a collar...
P B A pressurized cylindrical air tank is subjected to a force P at a collar B. The tank has an inner diameter (d = 160 mm) with wall thickness (1 = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P = 9.5 kN. (a) Determine the maximum tensile stress o [MPa), maximum compressive stress oc [MPa] and maximum shear stress imax [MPa) at point a. (b) Repeat part (a)...
A pressurized cylindrical tank with flat ends is loaded by torques T and tensile forces P...
A pressurized cylindrical tank with flat ends is loaded by torques T and tensile forces P (see figure). The tank has an inner radims r = 125 mm and wall thickness t = 6.5 mm. The internal pressure p = 7.25 MPa and the torque T-850 N-m. If forces P = 114 kN, what is the axial stress (MPa) in the tank?
Problem 5. (20 pts) A vertical propane tank with an outside diameter of D 300 mm...
Problem 5. (20 pts) A vertical propane tank with an outside diameter of D 300 mm and a wall-thickness of t-9 mm is subjected to a horizontal force of P 41 kN. The gage pressure inside the tank is 7 MPa. [D-300 mm, te9 mm, P 41 kN] a) Determine the maximum normal stress at point K b) Determine the shear stress produced by the applied force. c) Determine the maximum shear stress in the 3d stress element.
8.5-8 A pressurized cylindrical tank with flat ends is loaded by torques Tand tensile forces P...
8.5-8 A pressurized cylindrical tank with flat ends is loaded by torques Tand tensile forces P (see figure). The tank has a radius of r = 125 mm and wall thick- ness t 6.5 mm. The internal pressure p = 7.25 MPa and the torque T = 850 N·m. (a) What is the maximum permissible value of the forces P if the allowable tensile stress in the wall of the cylinder is 160 MPa? (b) If forces P 400 kN,...
please make your answers clear and organized . Problem 8.5-3 A cylindrical pressure vessel having radius...
please make your answers clear and organized .
Problem 8.5-3 A cylindrical pressure vessel having radius r-300 mm and wall thickness t 15 mm is subjected to internal pressure p 2.5 MPa. In addition, a torque T120 kN-m acts at each end of the cylinder (see figure) (a) Determine the maximum tensile stress ?mix and the maximum in-plane shear stress Tmax in the wall of the cylinder torque T? 30 MPa and 76 MPa, respectively, what is the minimum required...
A cylindrical tank holding oxygen at 5000 kPa pressure has an outside diameter of 500 mm...
A cylindrical tank holding oxygen at 5000 kPa pressure has an outside diameter of 500 mm and a wall thickness of 10 mm. It has been determined that a critical point on the tank is subjected to the tensile stress of 465 MPa in x-direction, compressive stress of 350 MPa in y-direction and shearing stress of 600 MPa. By using Mohr’s Circle; Sketch the plane stresses element for the critical point. Determine the principal stresses and their locations. Determine the...
A cylindrical tank holding oxygen at 4000 kPa pressure has an outside diameter of 500 mm and a wa...
A cylindrical tank holding oxygen at 4000 kPa pressure has an outside diameter of 500 mm and a wall thickness of 10 mm. It has been determined that a critical point on the tank is subjected to the tensile stress of 464 MPa in x-direction, compressive stress of 340 MPa in y-direction and shearing stress of 600 MPa. By using Mohr’s Circle; Sketch the plane stresses element for the critical point. Determine the principal stresses and their locations. Determine the...
Combined loading A rod with the diameter of 20 mm is subjected to a force P...
Combined loading A rod with the diameter of 20 mm is subjected to a force P - 1800 N, as shown in the figure. The rod is fixed to the wall at Point C.L.- 50 mm and L-200 mm. Determine the magnitude of the shear stress MPa at Point Blocated on the surface of the rod on the designated positive z axis (rounding to two decimal places).
air under a pressure to 16 MPa. The tank has a 180 mm inner diameter and a 12 mm wall thickness (40 points) A torque of magnitude T-24kN-m is applied to the end of a tank containing 3. Part A. Fo...
air under a pressure to 16 MPa. The tank has a 180 mm inner diameter and a 12 mm wall thickness (40 points) A torque of magnitude T-24kN-m is applied to the end of a tank containing 3. Part A. For a point on the outer surface of the tank, determine: a. the maximum normal stress b. the maximum shearing stress Part B. As a result of several tensile tests, it has been found that the tensile yield strength for...
P Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to a force P at a collar B. The tank has an inner diameter (d= 160 mm) with wall thickness (t = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P=9.5 kN. B 450 mm (a) Determine the maximum tensile stress 0 [MPa], maximum compressive stress oc [MPa] and maximum shear stress Tmax [MPa] at point...
P B A pressurized cylindrical air tank is subjected to a force P at a collar B. The tank has an inner diameter (d = 160 mm) with wall thickness (1 = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P = 9.5 kN. (a) Determine the maximum tensile stress o [MPa), maximum compressive stress oc [MPa] and maximum shear stress imax [MPa) at point a. (b) Repeat part (a)...
A pressurized cylindrical tank with flat ends is loaded by torques T and tensile forces P (see figure). The tank has an inner radims r = 125 mm and wall thickness t = 6.5 mm. The internal pressure p = 7.25 MPa and the torque T-850 N-m. If forces P = 114 kN, what is the axial stress (MPa) in the tank?
Problem 5. (20 pts) A vertical propane tank with an outside diameter of D 300 mm and a wall-thickness of t-9 mm is subjected to a horizontal force of P 41 kN. The gage pressure inside the tank is 7 MPa. [D-300 mm, te9 mm, P 41 kN] a) Determine the maximum normal stress at point K b) Determine the shear stress produced by the applied force. c) Determine the maximum shear stress in the 3d stress element.
8.5-8 A pressurized cylindrical tank with flat ends is loaded by torques Tand tensile forces P (see figure). The tank has a radius of r = 125 mm and wall thick- ness t 6.5 mm. The internal pressure p = 7.25 MPa and the torque T = 850 N·m. (a) What is the maximum permissible value of the forces P if the allowable tensile stress in the wall of the cylinder is 160 MPa? (b) If forces P 400 kN,...
please make your answers clear and organized .
Problem 8.5-3 A cylindrical pressure vessel having radius r-300 mm and wall thickness t 15 mm is subjected to internal pressure p 2.5 MPa. In addition, a torque T120 kN-m acts at each end of the cylinder (see figure) (a) Determine the maximum tensile stress ?mix and the maximum in-plane shear stress Tmax in the wall of the cylinder torque T? 30 MPa and 76 MPa, respectively, what is the minimum required...
Combined loading A rod with the diameter of 20 mm is subjected to a force P - 1800 N, as shown in the figure. The rod is fixed to the wall at Point C.L.- 50 mm and L-200 mm. Determine the magnitude of the shear stress MPa at Point Blocated on the surface of the rod on the designated positive z axis (rounding to two decimal places).
air under a pressure to 16 MPa. The tank has a 180 mm inner diameter and a 12 mm wall thickness (40 points) A torque of magnitude T-24kN-m is applied to the end of a tank containing 3. Part A. For a point on the outer surface of the tank, determine: a. the maximum normal stress b. the maximum shearing stress Part B. As a result of several tensile tests, it has been found that the tensile yield strength for...
