8.5-8 A pressurized cylindrical tank with flat ends is loaded by torques Tand tensile forces P...
A pressurized cylindrical tank with flat ends is loaded by torques T and tensile forces P...

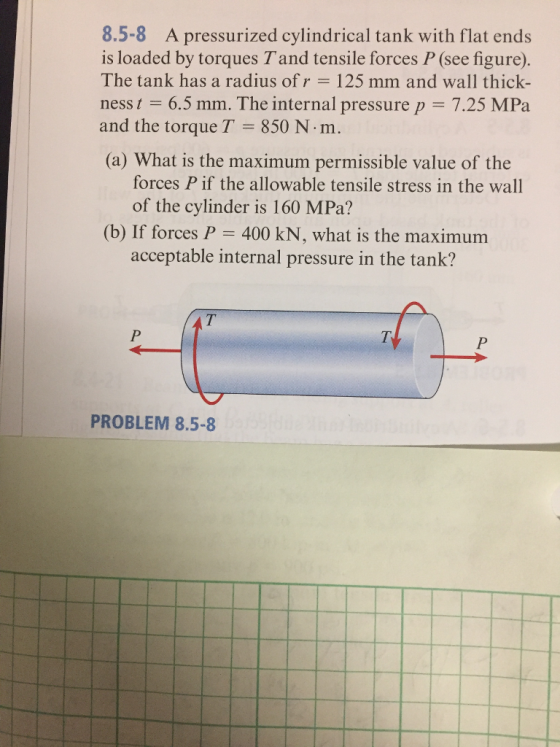

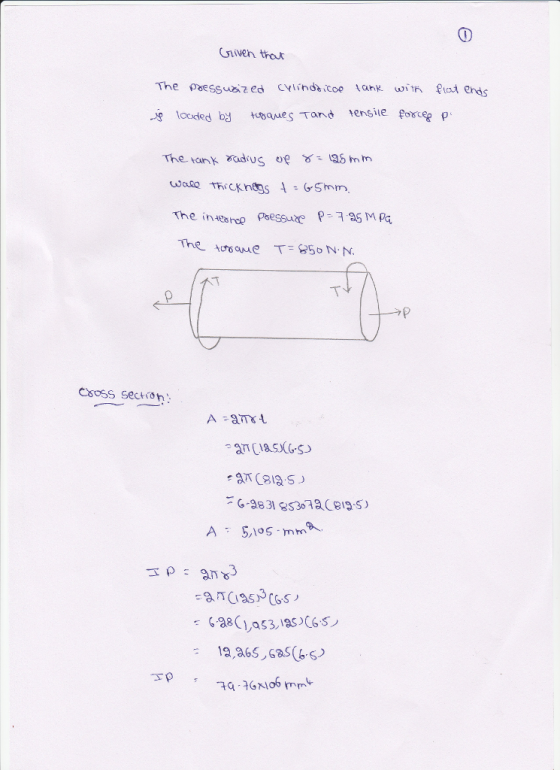

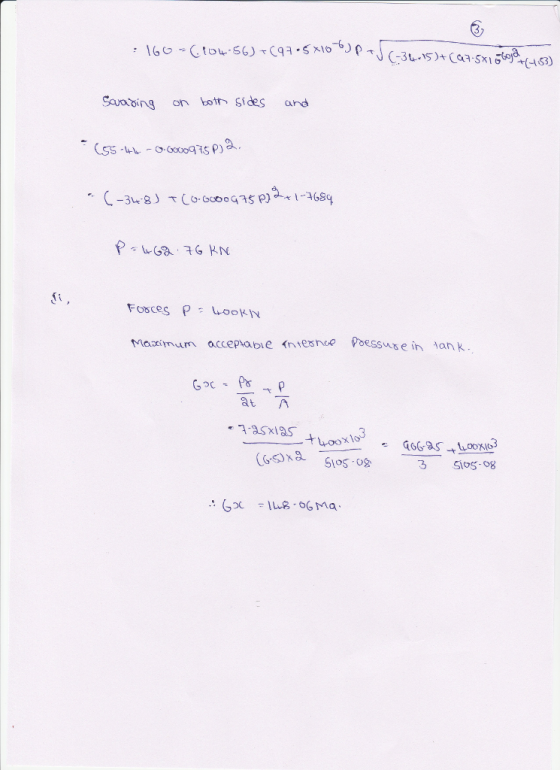

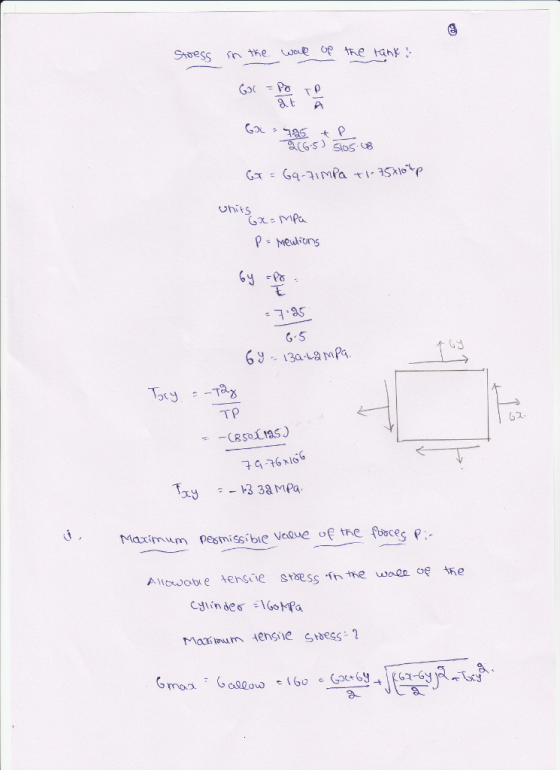

A pressurized cylindrical tank with flat ends is loaded by torques T and tensile forces P (see figure). The tank has an inner radims r = 125 mm and wall thickness t = 6.5 mm. The internal pressure p = 7.25 MPa and the torque T-850 N-m. If forces P = 114 kN, what is the axial stress (MPa) in the tank?
P B A pressurized cylindrical air tank is subjected to a force P at a collar...
P B A pressurized cylindrical air tank is subjected to a force P at a collar B. The tank has an inner diameter (d = 160 mm) with wall thickness (1 = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P = 9.5 kN. (a) Determine the maximum tensile stress o [MPa), maximum compressive stress oc [MPa] and maximum shear stress imax [MPa) at point a. (b) Repeat part (a)...
P Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to a...
P Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to a force P at a collar B. The tank has an inner diameter (d= 160 mm) with wall thickness (t = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P=9.5 kN. B 450 mm (a) Determine the maximum tensile stress 0 [MPa], maximum compressive stress oc [MPa] and maximum shear stress Tmax [MPa] at point...
P B Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to...
P B Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to a force Pat a collar B. The tank has an inner diameter (d = 160 mm) with wall thickness (t = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P=9.5 kN. (a) Determine the maximum tensile stress o [MPa], maximum compressive stress oc [MPa] and maximum shear stress Tmax [MPa] at point a. (b)...
please make your answers clear and organized . Problem 8.5-3 A cylindrical pressure vessel having radius...
please make your answers clear and organized .
Problem 8.5-3 A cylindrical pressure vessel having radius r-300 mm and wall thickness t 15 mm is subjected to internal pressure p 2.5 MPa. In addition, a torque T120 kN-m acts at each end of the cylinder (see figure) (a) Determine the maximum tensile stress ?mix and the maximum in-plane shear stress Tmax in the wall of the cylinder torque T? 30 MPa and 76 MPa, respectively, what is the minimum required...

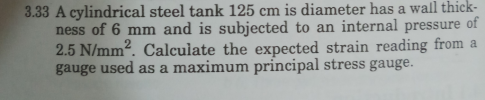

3.33 A cylindrical steel tank 125 cm is diameter has a wall thick- ness of 6...
3.33 A cylindrical steel tank 125 cm is diameter has a wall thick- ness of 6 mm and is subjected to an internal pressure of 2.5 N/mm2. Calculate the expected strain reading from a gauge used as a maximum principal stress gauge.
MEE2001/2015 Q5. A thin walled steel cylinder with 10 mm wall thickness and internal diameter of 200 mm (Fig. Q5) is subjected to an internal pressure, p. The steel used for the cylinder has a yie...
MEE2001/2015 Q5. A thin walled steel cylinder with 10 mm wall thickness and internal diameter of 200 mm (Fig. Q5) is subjected to an internal pressure, p. The steel used for the cylinder has a yield stress of 240 MPa. +F 200 mm Fig. Q5 (a) If a tensile axial force of 1MN is applied to the end plate, show that the maximum internal pressure that can be applied before the cylinder yields according to the Tresca criterion is 16.2...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
A pressurized cylindrical tank with flat ends is loaded by torques T and tensile forces P (see figure). The tank has an inner radims r = 125 mm and wall thickness t = 6.5 mm. The internal pressure p = 7.25 MPa and the torque T-850 N-m. If forces P = 114 kN, what is the axial stress (MPa) in the tank?
P B A pressurized cylindrical air tank is subjected to a force P at a collar B. The tank has an inner diameter (d = 160 mm) with wall thickness (1 = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P = 9.5 kN. (a) Determine the maximum tensile stress o [MPa), maximum compressive stress oc [MPa] and maximum shear stress imax [MPa) at point a. (b) Repeat part (a)...
P Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to a force P at a collar B. The tank has an inner diameter (d= 160 mm) with wall thickness (t = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P=9.5 kN. B 450 mm (a) Determine the maximum tensile stress 0 [MPa], maximum compressive stress oc [MPa] and maximum shear stress Tmax [MPa] at point...
P B Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to a force Pat a collar B. The tank has an inner diameter (d = 160 mm) with wall thickness (t = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P=9.5 kN. (a) Determine the maximum tensile stress o [MPa], maximum compressive stress oc [MPa] and maximum shear stress Tmax [MPa] at point a. (b)...
please make your answers clear and organized .
Problem 8.5-3 A cylindrical pressure vessel having radius r-300 mm and wall thickness t 15 mm is subjected to internal pressure p 2.5 MPa. In addition, a torque T120 kN-m acts at each end of the cylinder (see figure) (a) Determine the maximum tensile stress ?mix and the maximum in-plane shear stress Tmax in the wall of the cylinder torque T? 30 MPa and 76 MPa, respectively, what is the minimum required...
3.33 A cylindrical steel tank 125 cm is diameter has a wall thick- ness of 6 mm and is subjected to an internal pressure of 2.5 N/mm2. Calculate the expected strain reading from a gauge used as a maximum principal stress gauge.
MEE2001/2015 Q5. A thin walled steel cylinder with 10 mm wall thickness and internal diameter of 200 mm (Fig. Q5) is subjected to an internal pressure, p. The steel used for the cylinder has a yield stress of 240 MPa. +F 200 mm Fig. Q5 (a) If a tensile axial force of 1MN is applied to the end plate, show that the maximum internal pressure that can be applied before the cylinder yields according to the Tresca criterion is 16.2...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
