A cylindrical tank holding oxygen at 5000 kPa pressure has an outside diameter of 500 mm...
- A cylindrical tank holding oxygen at 5000 kPa pressure has an outside diameter of

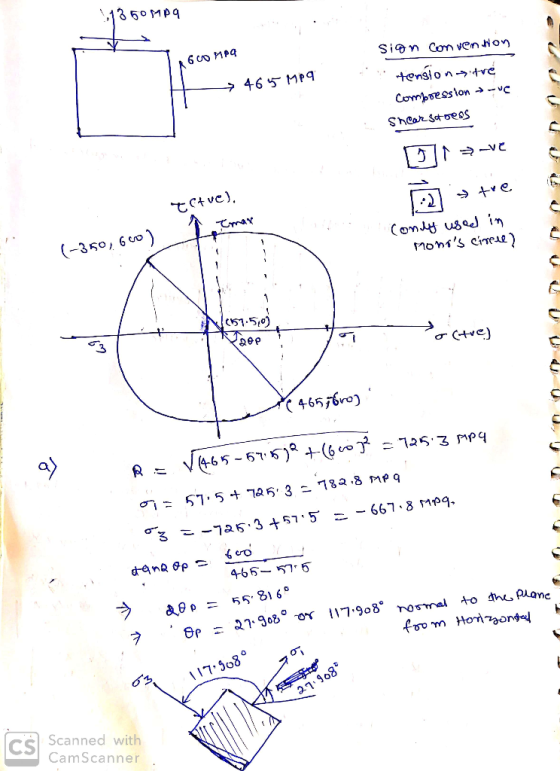

500 mm and a wall thickness of 10 mm. It has been determined that a critical point on the tank is subjected to the tensile stress of 465 MPa in x-direction, compressive stress of 350 MPa in y-direction and shearing stress of 600 MPa. By using Mohr’s Circle;
- Sketch the plane stresses element for the critical point.
- Determine the principal stresses and their locations.
- Determine the maximum shearing stresses and their locations.

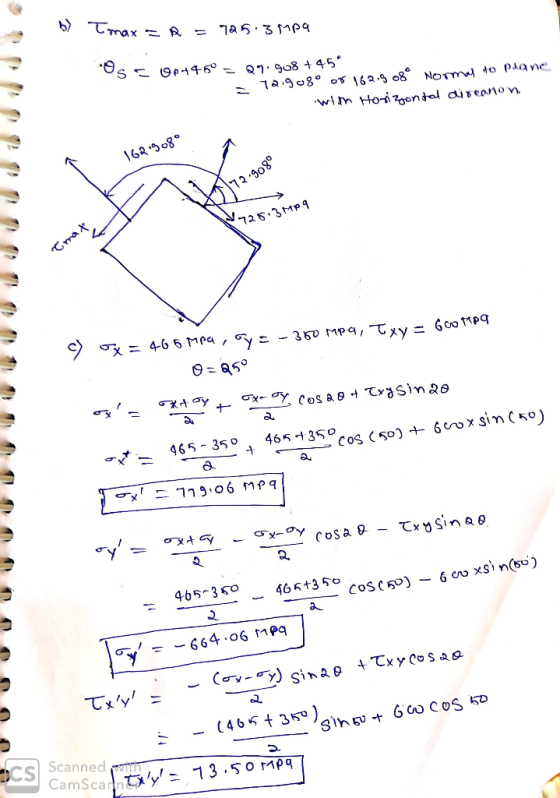

- If the critical point on tank is rotated to an angle of 25° clockwise from the x-axis, determine the normal and shear stresses on the plane.
Homework Answers
Add Answer to:
A cylindrical tank holding oxygen at 5000 kPa pressure has an
outside diameter of
500 mm...
A cylindrical tank holding oxygen at 4000 kPa pressure has an outside diameter of 500 mm and a wa...
A cylindrical tank holding oxygen at 4000 kPa pressure has an outside diameter of 500 mm and a wall thickness of 10 mm. It has been determined that a critical point on the tank is subjected to the tensile stress of 464 MPa in x-direction, compressive stress of 340 MPa in y-direction and shearing stress of 600 MPa. By using Mohr’s Circle; Sketch the plane stresses element for the critical point. Determine the principal stresses and their locations. Determine the...
(50 Marks) a) As part of the product development process for go-kart drive shaft, the engineer has instrumented a critical area of the shaft with a solid bar. A drive shaft bar is designed to car...
(50 Marks) a) As part of the product development process for go-kart drive shaft, the engineer has instrumented a critical area of the shaft with a solid bar. A drive shaft bar is designed to carry a tensile load. The engineer has proposed a circular bar with cross-section having a radius of 2X mm. It carries an axial tensile load of İY0 kN. By using equation; i) Calculate the values of principal stresses at the critical area of the bar....
P B A pressurized cylindrical air tank is subjected to a force P at a collar...
P B A pressurized cylindrical air tank is subjected to a force P at a collar B. The tank has an inner diameter (d = 160 mm) with wall thickness (1 = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P = 9.5 kN. (a) Determine the maximum tensile stress o [MPa), maximum compressive stress oc [MPa] and maximum shear stress imax [MPa) at point a. (b) Repeat part (a)...
P Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to a...
P Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to a force P at a collar B. The tank has an inner diameter (d= 160 mm) with wall thickness (t = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P=9.5 kN. B 450 mm (a) Determine the maximum tensile stress 0 [MPa], maximum compressive stress oc [MPa] and maximum shear stress Tmax [MPa] at point...
P B Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to...
P B Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to a force Pat a collar B. The tank has an inner diameter (d = 160 mm) with wall thickness (t = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P=9.5 kN. (a) Determine the maximum tensile stress o [MPa], maximum compressive stress oc [MPa] and maximum shear stress Tmax [MPa] at point a. (b)...
A cylindrical pressure vessel of 250 mm mean diameter and 6 mm wall thickness is fabricated...
A cylindrical pressure vessel of 250 mm mean diameter and 6 mm
wall thickness is fabricated from a 1.2 m length of spirally welded
pipe AB as shown. Tank gauge pressure is 4 MPa and centric axial
forces P and P1 of 240 kN act through rigid end plates. Determine:
(a) Net longitudinal and hoop stresses. (b) Normal stress acting
perpendicular to weld and shear stress parallel to weld (show
sketch of Mohr’s circle). (c) Determine the Factor of Safety...
- 3. A propane storage tank is constructed by welding two hemispherical end caps onto a...
- 3. A propane storage tank is constructed by welding two hemispherical end caps onto a cylindrical main body. The cylindrical body is manufactured from a helical welded pipe which has an outside diameter of 750 mm and a wall thickness of 6 mm. The tank is designed to hold gas at an internal gauge pressure of 6 MPa. a) Draw the Mohr’s circle and determine the normal and shear stresses on the weld in the cylindrical main body portion...
air under a pressure to 16 MPa. The tank has a 180 mm inner diameter and a 12 mm wall thickness (40 points) A torque of magnitude T-24kN-m is applied to the end of a tank containing 3. Part A. Fo...
air under a pressure to 16 MPa. The tank has a 180 mm inner diameter and a 12 mm wall thickness (40 points) A torque of magnitude T-24kN-m is applied to the end of a tank containing 3. Part A. For a point on the outer surface of the tank, determine: a. the maximum normal stress b. the maximum shearing stress Part B. As a result of several tensile tests, it has been found that the tensile yield strength for...
please make your answers clear and organized . Problem 8.5-3 A cylindrical pressure vessel having radius...
please make your answers clear and organized .
Problem 8.5-3 A cylindrical pressure vessel having radius r-300 mm and wall thickness t 15 mm is subjected to internal pressure p 2.5 MPa. In addition, a torque T120 kN-m acts at each end of the cylinder (see figure) (a) Determine the maximum tensile stress ?mix and the maximum in-plane shear stress Tmax in the wall of the cylinder torque T? 30 MPa and 76 MPa, respectively, what is the minimum required...
Problem 6. (15 pts) A pressure vessel with an inside diameter of d-575 mm and a...
Problem 6. (15 pts) A pressure vessel with an inside diameter of d-575 mm and a uniform wall thickness of t-6 mm is holding a fluid with an inside pressure of 1.5 MPa. The vessel is subjected to a vertical force of P 7 kN as shown in the figure. [d-575 mm, t-6 mm, P=7 kN, Lle 750 mm, L2 = 750 mm, w 500 mm] a) b) Determine the maximum normal stress at point K on the top of...
(50 Marks) a) As part of the product development process for go-kart drive shaft, the engineer has instrumented a critical area of the shaft with a solid bar. A drive shaft bar is designed to carry a tensile load. The engineer has proposed a circular bar with cross-section having a radius of 2X mm. It carries an axial tensile load of İY0 kN. By using equation; i) Calculate the values of principal stresses at the critical area of the bar....
P B A pressurized cylindrical air tank is subjected to a force P at a collar B. The tank has an inner diameter (d = 160 mm) with wall thickness (1 = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P = 9.5 kN. (a) Determine the maximum tensile stress o [MPa), maximum compressive stress oc [MPa] and maximum shear stress imax [MPa) at point a. (b) Repeat part (a)...
P Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to a force P at a collar B. The tank has an inner diameter (d= 160 mm) with wall thickness (t = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P=9.5 kN. B 450 mm (a) Determine the maximum tensile stress 0 [MPa], maximum compressive stress oc [MPa] and maximum shear stress Tmax [MPa] at point...
P B Problem 3 (30 pts): Combined Loading A pressurized cylindrical air tank is subjected to a force Pat a collar B. The tank has an inner diameter (d = 160 mm) with wall thickness (t = 6 mm). The gage pressure inside the tank is p = 5 MPa and the applied force is P=9.5 kN. (a) Determine the maximum tensile stress o [MPa], maximum compressive stress oc [MPa] and maximum shear stress Tmax [MPa] at point a. (b)...
A cylindrical pressure vessel of 250 mm mean diameter and 6 mm
wall thickness is fabricated from a 1.2 m length of spirally welded
pipe AB as shown. Tank gauge pressure is 4 MPa and centric axial
forces P and P1 of 240 kN act through rigid end plates. Determine:
(a) Net longitudinal and hoop stresses. (b) Normal stress acting
perpendicular to weld and shear stress parallel to weld (show
sketch of Mohr’s circle). (c) Determine the Factor of Safety...
- 3. A propane storage tank is constructed by welding two hemispherical end caps onto a cylindrical main body. The cylindrical body is manufactured from a helical welded pipe which has an outside diameter of 750 mm and a wall thickness of 6 mm. The tank is designed to hold gas at an internal gauge pressure of 6 MPa. a) Draw the Mohr’s circle and determine the normal and shear stresses on the weld in the cylindrical main body portion...
air under a pressure to 16 MPa. The tank has a 180 mm inner diameter and a 12 mm wall thickness (40 points) A torque of magnitude T-24kN-m is applied to the end of a tank containing 3. Part A. For a point on the outer surface of the tank, determine: a. the maximum normal stress b. the maximum shearing stress Part B. As a result of several tensile tests, it has been found that the tensile yield strength for...
please make your answers clear and organized .
Problem 8.5-3 A cylindrical pressure vessel having radius r-300 mm and wall thickness t 15 mm is subjected to internal pressure p 2.5 MPa. In addition, a torque T120 kN-m acts at each end of the cylinder (see figure) (a) Determine the maximum tensile stress ?mix and the maximum in-plane shear stress Tmax in the wall of the cylinder torque T? 30 MPa and 76 MPa, respectively, what is the minimum required...
Problem 6. (15 pts) A pressure vessel with an inside diameter of d-575 mm and a uniform wall thickness of t-6 mm is holding a fluid with an inside pressure of 1.5 MPa. The vessel is subjected to a vertical force of P 7 kN as shown in the figure. [d-575 mm, t-6 mm, P=7 kN, Lle 750 mm, L2 = 750 mm, w 500 mm] a) b) Determine the maximum normal stress at point K on the top of...
