The XNOR operation is the opposite of the XOR; note that it selects the homogeneous states,...

The XNOR operation is the opposite of the XOR; note that it selects the homogeneous states, while the XOR selects the mixed states.
- Write a truth table for the Not Exclusive OR (XNOR) function in the space below.
- Write and simplify a Boolean expression for the XNOR function.
- Implement an XNOR function using NAND gates. Draw the circuit below.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

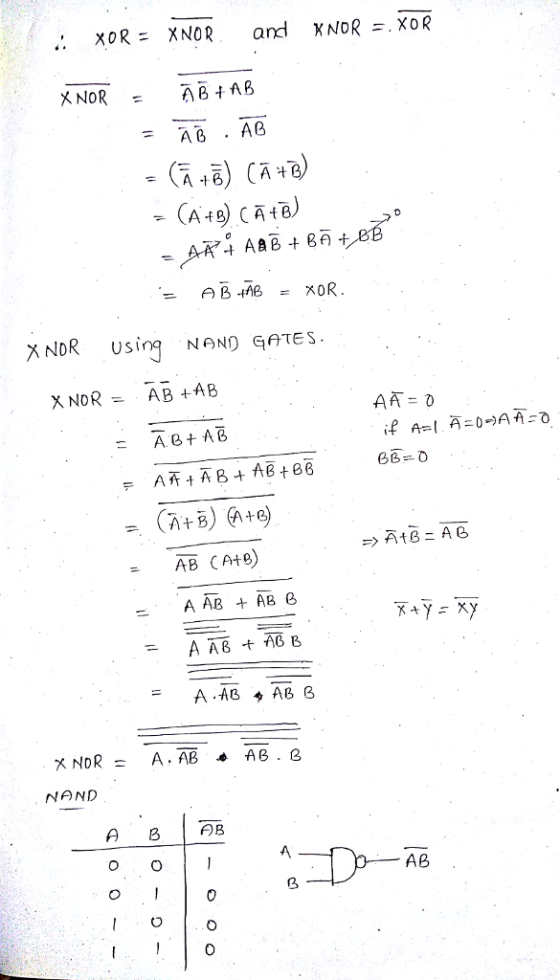

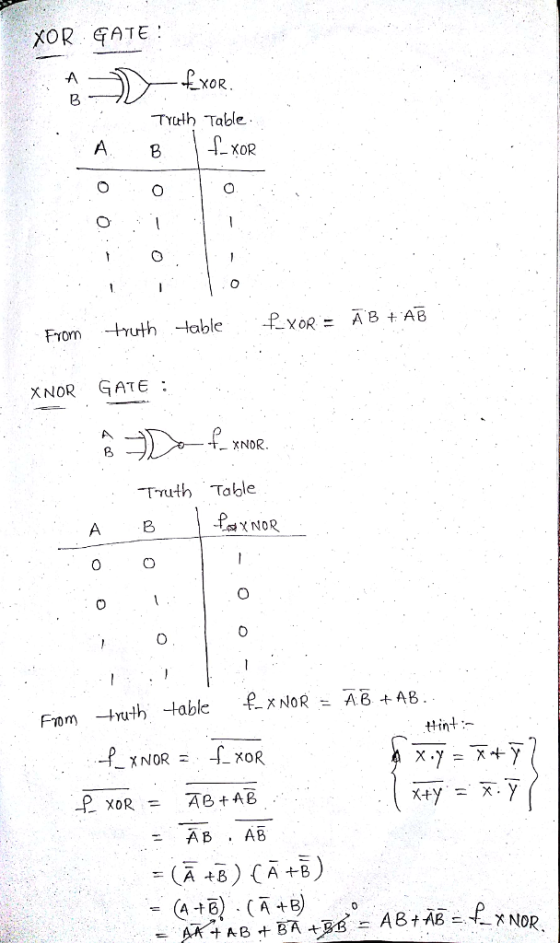

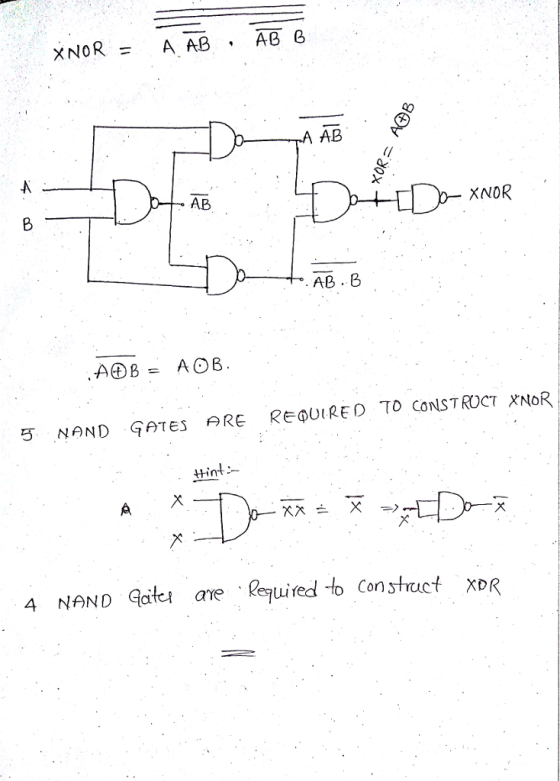

XOR TATE ●XOR TYoth Table - XOR From truth-able -exoR= AB + AB XNOR GATE: - XNDR Truth Talble A B NOR 0 - XOR AB. AB
