Determine the required tension in cable BC if the resultant of the three forces exerted at...

Question

Question

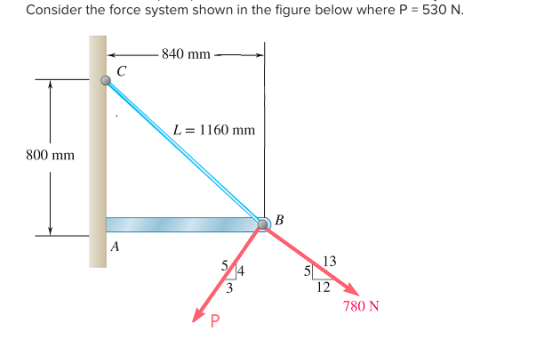

Consider the force system shown in the figure below where P = 530 N. - 840 mm - L= 1160 mm 800 mm B 780 N

Determine the required tension in cable BC if the resultant of the three forces exerted at Point B is to be vertical.

The required tension in cable BC is _____N

Determine the corresponding magnitude of the resultant.

The corresponding magnitude of the resultant is _____N

engineering Civil-Engineering

Answer 1

Answer #1

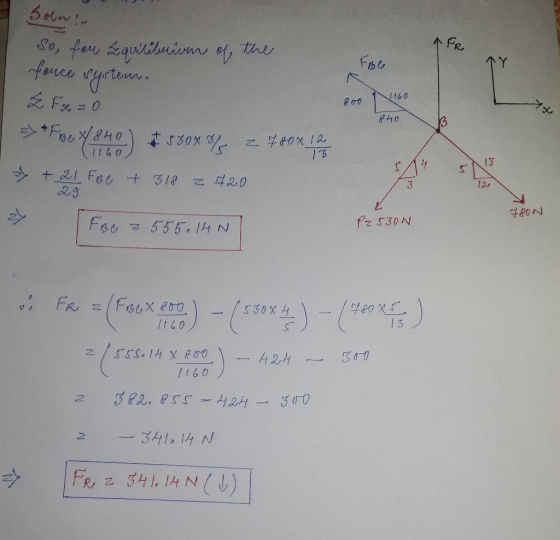

FR Foo 160 &HO S30x 1160 13 +21 Fn 318 12s 480N fz 530N Foc 555.14 N NO ( Fex FRI 530X 4 13 I160 - A2H 2 - 341, 14 N 341. 14

Answer 2
