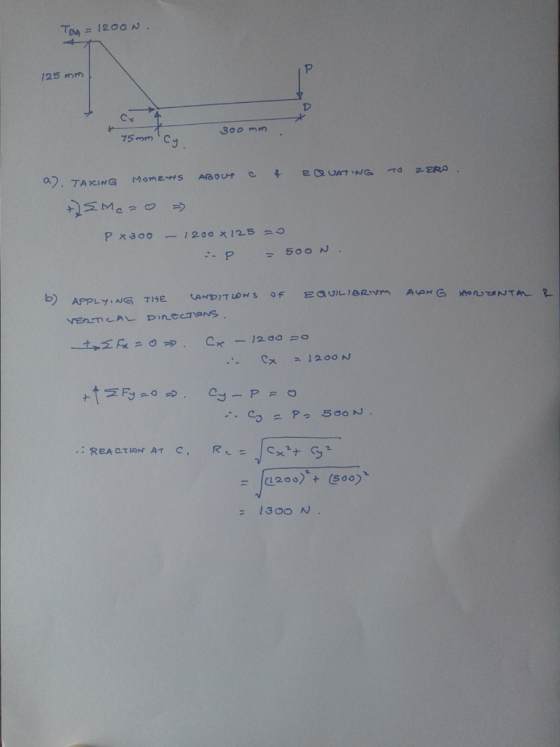

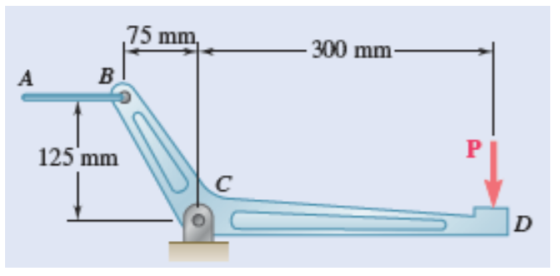

The required tension in cable AB is 1200 N. Determine (a) the vertical force P that must be applied to the pedal, (b) the corresponding reaction at C.
Homework Answers
Add Answer to:
The required tension in cable AB is 1200 N. Determine (a) the
vertical force P that must be applied to the pedal, (b) t...
The required tension cable AB 2001. Determine Vetem Torce PTT ist be applied to the pedal...
The required tension cable AB 2001. Determine Vetem Torce PTT ist be applied to the pedal corresponding reaction at the by the Problem 6. PROBLEM 4.32 Neglecting friction. determine the tension m cable ABD and the reaction at C when e = 45° SO
Determine the required tension in cable BC if the resultant of the three forces exerted at...
Determine the required tension in cable BC if the
resultant of the three forces exerted at Point B is to be
vertical.
The required tension in cable BC is _____N
Determine the corresponding magnitude of the resultant.
The corresponding magnitude of the resultant is _____N
Consider the force system shown in the figure below where P = 530 N. - 840 mm - L= 1160 mm 800 mm B 780 N
If the tension in the cable AB is 125 lb, determine the axial force in the...
If the tension in the cable AB is 125 lb, determine the axial force in the rod, the tension in cable AC. and the weight W, for equilibrium. Please note that the orientation of the x-y-z axes is not what has been generally used in class.
Part C If cable AB is subjected to a tension of 750 N, determine the magnitude...
Part C If cable AB is subjected to a tension of 750 N, determine the magnitude of the vertical force F. Figure < 1 of 1 > Express your answer to three significant figures and include the appropriate units. R 2 ? 19 Å F= 1135.715 O kN 2 m Submit Previous Answers Request Answer 1.5 m X Incorrect; Try Again; 4 attempts remaining 6 m 3m7 B Provide Feedback
Question 12 4 pts If cable AB is subjected to a tension of 776 N, determine...
Question 12 4 pts If cable AB is subjected to a tension of 776 N, determine the magnitude of the vertical force F. Question 13
Help please Knowing that the tension in cable AB is 1425 N, determine the components of...
Help please
Knowing that the tension in cable AB is 1425 N, determine the components of the force exerted on the plate at B. 360 mm 920 mm 600 mm D A force acts at the origin of a coordinate system in a direction defined by the angles a-70.go and θ'-144.ge, Knowing that the z component of the force is -52.0 lb, determine (a) the angle 8,, (b) the other components and the magnitude of the force. 82
A force P is applied on the crate at A as shown. Determine
A force P is applied on the crate at A as shown. Determine(a) the moment of the force P about C,(b) the magnitude and sense of the vertical force applied at E that creates the same moment about C,(c) the magnitude and direction (from horizontal) of the smallest force applied at E that creates the same moment about C.If P=500 N, a=25°, a=300 mm, b=500 mm, c=350 mm, d=50 mma) Moment of P about C(N · m, 3 sigfig, CW+)=b)...
MAE 211: Engineering Mechanics 1. A 350-N force acts on a brake pedal, as shown in...
MAE 211: Engineering Mechanics 1. A 350-N force acts on a brake pedal, as shown in (a) If the pedal is in equilibrium in the position shown, what is the tension in the spring? (b) If the total de to 5 mm when the 350-N pedal force is at A is to be limited applied, what is the minimum required spring stiffness k? c) What are the pin reactions at D? First, draw the FBDI! 100 mm 50 mm 40...
Knowing that the tension in cable AC is 2180 N, determine the components of the force...
Knowing that the tension in cable AC is 2180 N, determine the components of the force exerted on the plate at C. (Round the final answers to the nearest whole number.) 2. 360 mm- lhigedal and Vtioal 920 inm fcos (a) lo 9=tSin (a) 600 mm 900 mm Groen: Tre = 2180N 99tm 960 AC CA A crate of mass 90 kg is held in the position shown. 3. fe Bodly biaghom 0.6 m 0.6 m- D.ot0.6=1.2 90 Ky B...
for problem 2, part b, perpendocular to rod ABC not ABD! Problem 1. The force P is applied to the cable at the frict...
for problem 2, part b, perpendocular to rod ABC not
ABD!
Problem 1. The force P is applied to the cable at the frictionless pulley C to hold the 1200N weight in the equilibrium position shown in the figure. Determine: (a) the magnitude of the force P, (b) tension in cable AB, and (c) tension in cable BC, Please draw the free body diagram of the particle under consideration clearly. B 28 200N Problem 2. A force F of magnitude...
The required tension cable AB 2001. Determine Vetem Torce PTT ist be applied to the pedal corresponding reaction at the by the Problem 6. PROBLEM 4.32 Neglecting friction. determine the tension m cable ABD and the reaction at C when e = 45° SO
Determine the required tension in cable BC if the
resultant of the three forces exerted at Point B is to be
vertical.
The required tension in cable BC is _____N
Determine the corresponding magnitude of the resultant.
The corresponding magnitude of the resultant is _____N
Consider the force system shown in the figure below where P = 530 N. - 840 mm - L= 1160 mm 800 mm B 780 N
If the tension in the cable AB is 125 lb, determine the axial force in the rod, the tension in cable AC. and the weight W, for equilibrium. Please note that the orientation of the x-y-z axes is not what has been generally used in class.
Part C If cable AB is subjected to a tension of 750 N, determine the magnitude of the vertical force F. Figure < 1 of 1 > Express your answer to three significant figures and include the appropriate units. R 2 ? 19 Å F= 1135.715 O kN 2 m Submit Previous Answers Request Answer 1.5 m X Incorrect; Try Again; 4 attempts remaining 6 m 3m7 B Provide Feedback
Question 12 4 pts If cable AB is subjected to a tension of 776 N, determine the magnitude of the vertical force F. Question 13
Help please
Knowing that the tension in cable AB is 1425 N, determine the components of the force exerted on the plate at B. 360 mm 920 mm 600 mm D A force acts at the origin of a coordinate system in a direction defined by the angles a-70.go and θ'-144.ge, Knowing that the z component of the force is -52.0 lb, determine (a) the angle 8,, (b) the other components and the magnitude of the force. 82
MAE 211: Engineering Mechanics 1. A 350-N force acts on a brake pedal, as shown in (a) If the pedal is in equilibrium in the position shown, what is the tension in the spring? (b) If the total de to 5 mm when the 350-N pedal force is at A is to be limited applied, what is the minimum required spring stiffness k? c) What are the pin reactions at D? First, draw the FBDI! 100 mm 50 mm 40...
Knowing that the tension in cable AC is 2180 N, determine the components of the force exerted on the plate at C. (Round the final answers to the nearest whole number.) 2. 360 mm- lhigedal and Vtioal 920 inm fcos (a) lo 9=tSin (a) 600 mm 900 mm Groen: Tre = 2180N 99tm 960 AC CA A crate of mass 90 kg is held in the position shown. 3. fe Bodly biaghom 0.6 m 0.6 m- D.ot0.6=1.2 90 Ky B...
for problem 2, part b, perpendocular to rod ABC not
ABD!
Problem 1. The force P is applied to the cable at the frictionless pulley C to hold the 1200N weight in the equilibrium position shown in the figure. Determine: (a) the magnitude of the force P, (b) tension in cable AB, and (c) tension in cable BC, Please draw the free body diagram of the particle under consideration clearly. B 28 200N Problem 2. A force F of magnitude...
