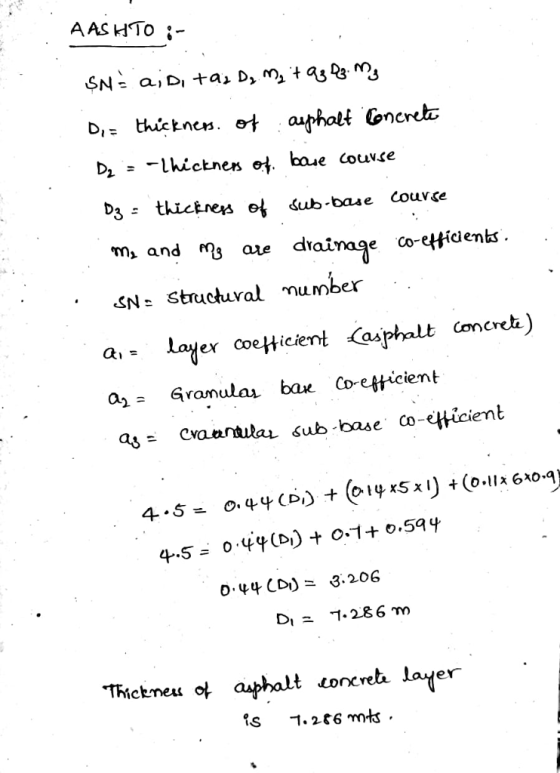

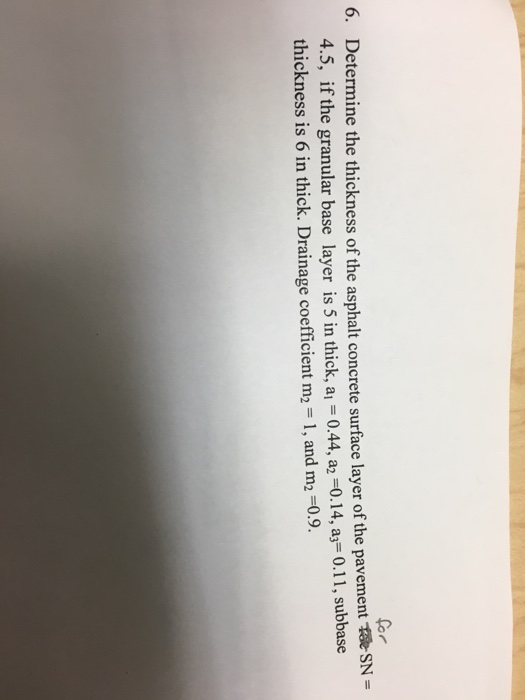

ine the thickness of the asphalt concrete surface layer of the pavement SN 4.5, if the...
Q3: A flexible pavement is to be designed according to the AASHTO design method. The total...
Q3: A flexible pavement is to be designed according to the AASHTO design method. The total expected ESAL for a new highway = 9 x10®, APSI= 2, reliability = 99%, overall standard deviation = 0.4, if the pavement layers are: Layer Thickness (inch) Structural layer coefficient Wearing surface 4 ai = 0.44 Base 4 a2 = 0.14 Subbase ? az = 0.11 The subgrade resilient modulus=20,000 psi, m2, mz=1, determine the thickness required for the subbase layer?
(20 pts) Given the conditions below, determine the layer thicknesses (D1 and D2) of flexible pavement based on 1993 AASHTO flexible pavement design concepts. Show all the tables and diagram used and...
(20 pts) Given the conditions below, determine the layer thicknesses (D1 and D2) of flexible pavement based on 1993 AASHTO flexible pavement design concepts. Show all the tables and diagram used and assume other conditions if needed 8. Given Two layer system (asphalt layer (Dı) and granular base (D2)) on subgrade Design Period 20 years Expected ESALs, W18 30x106 ESALs Reliability-90% . ZR--1.282 .So- 0.45 APSI 1.7 Subgrade (MR) 12000 psi Granular Base AASHTO A-1-a (40000 psi) Granular Base Coefficient...
4) For a design structural number, SN 5.0. selected. The base material has to be at...
4) For a design structural number, SN 5.0. selected. The base material has to be at least 6 inches thick as set by policy (A2 0.14). What thickness should be used for the subbase (A3-0.10) to ensure the pavement design meets the required structural number. A 4 inch ACC pavement (A1 0.44) has been
Flexible Pavement Design Homework Based on the data presented in following pages, determine structural layers' t...
Flexible Pavement Design Homework Based on the data presented in following pages, determine structural layers' thickness (asphalt concrete, base, and subbase layers) for 15 years (Skip stage construction) Some hints to solve the problem 1- Calculate effective roadbed soil resilient modulus 2- Assume related drainage coefficient 3- Calculate layer coefficients 4- Make a good assumption for data that are not directly mentioned. Some of the important graphs and charts that you may need are also presented
Flexible Pavement Design Homework...
highway engineering Q2: Truck A has two single axles. One axle weighs 12,000 lb and the...
highway engineering
Q2: Truck A has two single axles. One axle weighs 12,000 lb and the other weighs 23,000 lb. Truck B has an 8000-1b single axle and a 43,000-1b tandem axle. On a flexible pavement with 3-inch hot-mix asphalt (HMA) wearing surface (a1 +0.44), 6-inch granular base (a2 = 0.2), and 8-inch crushed stone subbase (a3 = 0.11), which truck will cause more pavement damage? (Assume drainage coefficients are 1.0.)
A flexible pavement is designed with 4 inches of sand-mix asphalt wearing surface, 6 inches of...
A flexible pavement is designed with 4 inches of sand-mix asphalt wearing surface, 6 inches of dense-graded crushed stone base, and 8 inches of crushed stone subbase. All drainage coefficients are 1.0. The initial PSI is 4.5, the TSI is 2.5, the soil resilient modulus is 12,000 lb/in2, reliability is 90%, the overall standard deviation is 0.4, and the design life is 15 years. A design mistake was made that ignored 100 daily passes of trucks with 22-kip single and...
what is the source book of this question or could any one please solve it Question...
what is the source book of this question
or could any one please solve it
Question 1 Design the flexible pavement layer thicknesses using the data given below. Design period: 20 years Pi- 4.2; Pt 2 Reliability (R)-90 % Standart deviation (So) 0.40 Vehicle Type AADT Axle load (ton) Growth rate (%) Car Truck Bus 10000 1500 800 1.8 13 10 4 1.5 a 1-0.44 (asphalt concrete) a2-0.14 (granular base, CBR 100) a3- 0.10 (granular subbase, CBR- 40) Subgrade CBR...
1- (18%) An engineer wants to design a flexible pavement which has a 4-inch sand-mix asphalt...
1- (18%) An engineer wants to design a flexible pavement which has a 4-inch sand-mix asphalt wearing surface, 11-inch soil cement base, and a 11-inch crushed stone subbase. It is designed to withstand 400 22-kip single-axle loads and 800 34-kip tandem axle loads per day. The subgrade CBR is 8, the overall standard deviation is 0.45, the initial PSI is 4.2, and the final PSI is 2.5. What is the probability that this pavement will have a PSI above 2.5...
1- (18%) An engineer wants to design a flexible pavement which has a 4-inch sand-mix asphalt...
1- (18%) An engineer wants to design a flexible pavement which has a 4-inch sand-mix asphalt wearing surface, 11-inch soil cement base, and a 11-inch crushed stone subbase. It is designed to withstand 400 22-kip single-axle loads and 800 34-kip tandem axle loads per day. The subgrade CBR is 8, the overall standard deviation is 0.45, the initial PSI is 4.2, and the final PSI is 2.5. What is the probability that this pavement will have a PSI above 2.5...
1- (18%) An engineer wants to design a flexible pavement which has a 4-inch sand-mix asphalt...
1- (18%) An engineer wants to design a flexible pavement which has a 4-inch sand-mix asphalt wearing surface, 11-inch soil cement base, and a 11- inch crushed stone subbase. It is designed to withstand 400 22-kip single-axle loads and 800 34-kip tandem axle loads per day. The subgrade CBR is 8, the overall standard deviation is 0.45, the initial PSI is 4.2, and the final PSI is 2.5. What is the probability that this pavement will have a PSI above...
Q3: A flexible pavement is to be designed according to the AASHTO design method. The total expected ESAL for a new highway = 9 x10®, APSI= 2, reliability = 99%, overall standard deviation = 0.4, if the pavement layers are: Layer Thickness (inch) Structural layer coefficient Wearing surface 4 ai = 0.44 Base 4 a2 = 0.14 Subbase ? az = 0.11 The subgrade resilient modulus=20,000 psi, m2, mz=1, determine the thickness required for the subbase layer?
(20 pts) Given the conditions below, determine the layer thicknesses (D1 and D2) of flexible pavement based on 1993 AASHTO flexible pavement design concepts. Show all the tables and diagram used and assume other conditions if needed 8. Given Two layer system (asphalt layer (Dı) and granular base (D2)) on subgrade Design Period 20 years Expected ESALs, W18 30x106 ESALs Reliability-90% . ZR--1.282 .So- 0.45 APSI 1.7 Subgrade (MR) 12000 psi Granular Base AASHTO A-1-a (40000 psi) Granular Base Coefficient...
4) For a design structural number, SN 5.0. selected. The base material has to be at least 6 inches thick as set by policy (A2 0.14). What thickness should be used for the subbase (A3-0.10) to ensure the pavement design meets the required structural number. A 4 inch ACC pavement (A1 0.44) has been
Flexible Pavement Design Homework Based on the data presented in following pages, determine structural layers' thickness (asphalt concrete, base, and subbase layers) for 15 years (Skip stage construction) Some hints to solve the problem 1- Calculate effective roadbed soil resilient modulus 2- Assume related drainage coefficient 3- Calculate layer coefficients 4- Make a good assumption for data that are not directly mentioned. Some of the important graphs and charts that you may need are also presented
Flexible Pavement Design Homework...
highway engineering
Q2: Truck A has two single axles. One axle weighs 12,000 lb and the other weighs 23,000 lb. Truck B has an 8000-1b single axle and a 43,000-1b tandem axle. On a flexible pavement with 3-inch hot-mix asphalt (HMA) wearing surface (a1 +0.44), 6-inch granular base (a2 = 0.2), and 8-inch crushed stone subbase (a3 = 0.11), which truck will cause more pavement damage? (Assume drainage coefficients are 1.0.)
what is the source book of this question
or could any one please solve it
Question 1 Design the flexible pavement layer thicknesses using the data given below. Design period: 20 years Pi- 4.2; Pt 2 Reliability (R)-90 % Standart deviation (So) 0.40 Vehicle Type AADT Axle load (ton) Growth rate (%) Car Truck Bus 10000 1500 800 1.8 13 10 4 1.5 a 1-0.44 (asphalt concrete) a2-0.14 (granular base, CBR 100) a3- 0.10 (granular subbase, CBR- 40) Subgrade CBR...
1- (18%) An engineer wants to design a flexible pavement which has a 4-inch sand-mix asphalt wearing surface, 11-inch soil cement base, and a 11-inch crushed stone subbase. It is designed to withstand 400 22-kip single-axle loads and 800 34-kip tandem axle loads per day. The subgrade CBR is 8, the overall standard deviation is 0.45, the initial PSI is 4.2, and the final PSI is 2.5. What is the probability that this pavement will have a PSI above 2.5...
1- (18%) An engineer wants to design a flexible pavement which has a 4-inch sand-mix asphalt wearing surface, 11-inch soil cement base, and a 11-inch crushed stone subbase. It is designed to withstand 400 22-kip single-axle loads and 800 34-kip tandem axle loads per day. The subgrade CBR is 8, the overall standard deviation is 0.45, the initial PSI is 4.2, and the final PSI is 2.5. What is the probability that this pavement will have a PSI above 2.5...
