Question

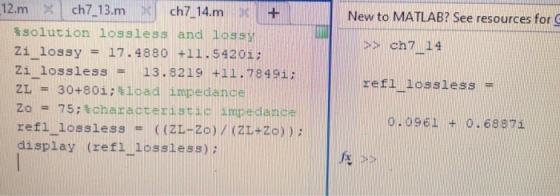

Provide step by step code in matlab, I’m getting wrong answer

lussleos

Answer 1

MATLAB code:

clc;
clear all;
close all;

Z_L=30+1i*80; %Load impedance
Z_0=75; % Characteristic imppedance

refl_lossless= (Z_L-Z_0)/(Z_L+Z_0);
display(refl_lossless); %display the coefficient gamma in complex form

disp('Magnitude of refl_lossless');
disp(abs(refl_lossless)); %display the gamma coefficient magnitude
disp('Phase of refl_loss');
disp(angle(refl_lossless)); %display the gamma coefficient phase in radians

Output:

refl_lossless =

0.0961 + 0.6887i

Magnitude of refl_lossless

ans =

0.6953

Phase of refl_loss

ans =

1.4321
