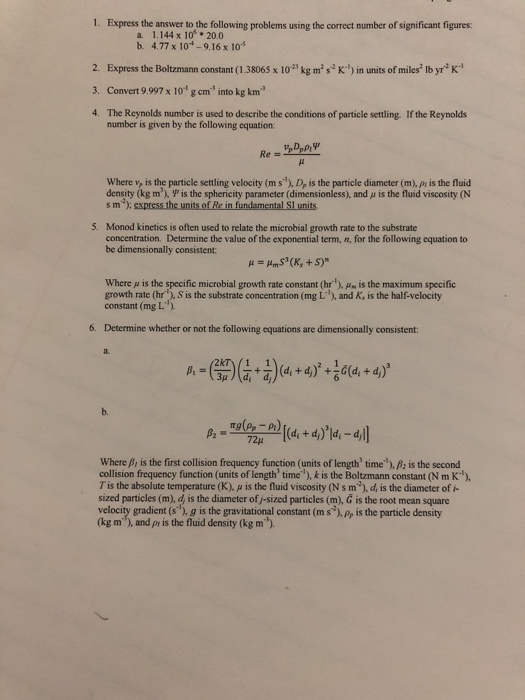

1. Express the answer to the following problems using the correct number of significant figures a....
Reynolds number is a dimensionless number that is used in Fluid Mechanics to distinguish between the laminar and turbulent flows particularly in pipes. Consider a pipe where the flowing fluid has the following properties: ρ is the density of the fluid (SI units: kg/m^3) u is the velocity of the fluid with respect to the object (m/s) D is pipe diameter (m) μ is the dynamic viscosity of the fluid (Pa·s or N·s/m^2 or kg/m·s) m is he mass of...
Part B
mework 7 blem 11.79-Enhanced-with Hints and Feedback Determine the velocity of the particle at which Stokes' law becomes invalid, at about Re Express your answer to three significant figures and include the appropriate units Review A 2.3-mm-diameter sand particle having a density of 2.40 Mg/m3 is released from rest at the surface of oi that is contained in the tube. As the particle fails downward, "creeping flow' will be established around it. The oil has a density of...
Density p [kg/m2], viscosity - u [kg/ms], surface tension - o (N/m=kg/s2] compressibility K [Pa-kg/ms2] 1. For particles settling in a stationary fluid it is thought that the drag force FD of a small sphere is a function of the settling velocity of the sphere - V, the diameter of the sphere - d, and the density p, and viscosity of the fluid - . Determine the dimensionless relationship(s) between these variables (FD/HVd, pdV/H) 2. (a) The efficiency of a...
3 x 10-6 m2/s, estimate the i) (1 pes.) The kinematic viscosity Reynolds number for the flow around a particle of size on the order of 1 μ m (= 10° m), assuming the velocity of the flow is on the order of 1 cm/s. Would "creeping flow" be a good approximation to the flow? Recall Re pULIp. し μ/ρ of a fluid is about
Please explain selection of answer in #1
Sedimentation A town is designing a rectangular, 4m deep settling tank for treating surface water intake. The tank will have a flow velocity of 5 cm/s. The untreated water has particles with the following properties: d=0.025 mm and density of 2,650 kg m 3 The settler is placed following a coagulation-flocculation step which is able to do one of the following: a) Triple the diameter of the particles but have no impact on...
Perform the following operations and express your answers using the appropriate number of significant figures. 60.0 kg + 22.1 kg + 0.52 kg 8.75 ms − 750.0 μ s ( 1.50 × 10 4 m/s ) × 120.0 s π ( 0.22 m 2 + 220 cm 2 ) sin 65.0 ∘ × cos 25.05
Stokes' law describes sedimentation of particles in liquids and can be used to measure viscosity. Particles in liquids achieve terminal velocity quickly. One can measure the time it takes for a particle to fall a certain distance and then use Stokes' law to calculate the viscosity of the liquid. Suppose a steel ball bearing (density 7.8 x 103 kg/m3, diameter 2.0 mm) is dropped in a container of motor oil. It takes 11 s to fall a distance of 0.65...
3 The fluid is flows through porous medium at 30°C with following configurations of packed bed column. Diameter of particle: 0.00168 m, velocity: 1.524 m/s, viscosity: 0.001 kg/m s & Density of fluid: 999 kg/m”, Bed Porosity: 0.033. The inside diameter of the packed bed column or pipe is 2 inch. Determine the draw the suitable schematic, Identify the flow pattern, Pressure Gradient (AP/AX), and Volumetric Flow rate (Q). (5 Marks)
The fluid is flows through porous medium at 30°C with following configurations of packed bed column. Diameter of particle: 0.00168 m, velocity: 1.524 m/s, viscosity: 0.001 kg/m s & Density of fluid: 999 kg/m², Bed Porosity: 0.033. The inside diameter of the packed bed column or pipe is 2 inch. Determine the draw the suitable schematic, Identify the flow pattern, Pressure Gradient (AP/AX), and Volumetric Flow rate (Q). plz answer all question .
could you please make clear
answer?
2. A plastic sphere with 4mm in diameter is dropped into water. The terminal velocity of the sphere in water is to be determined. Assumptions 1 The fluid flow over the sphere is laminar (to be verified). 2 The drag coefficient remains constant. Properties The density of plastic sphere is 1150 kg/m . The density and dynamic viscosity of water at -3 20°C are ρ-998 kg/mand μ-1.002x10 kg/ms. respectively. The drag coefficient for a...
