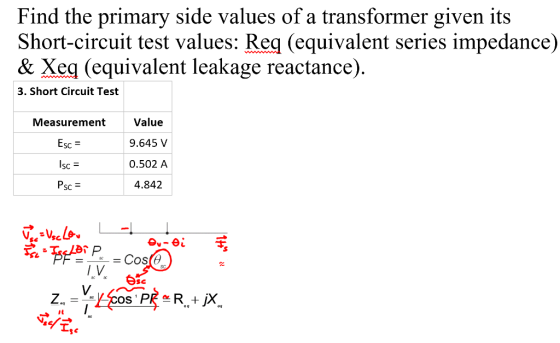

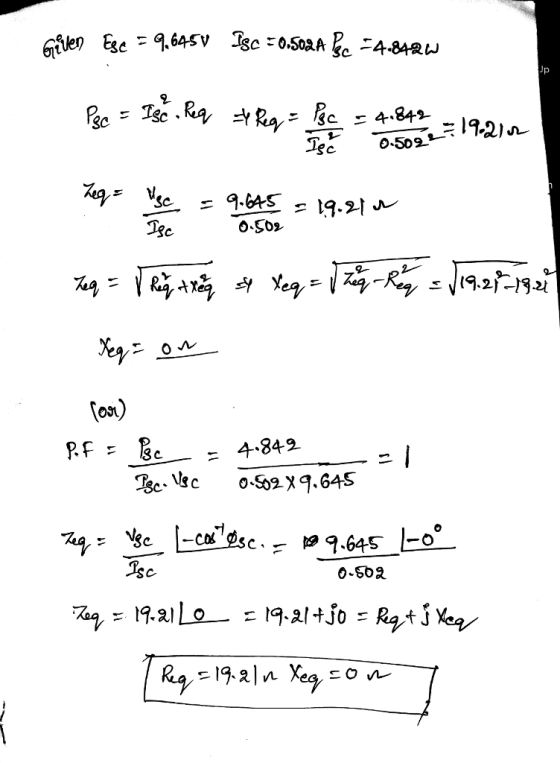

Find the primary side values of a transformer given its Short-circuit test values: Req (equivalent series...
Question 31 (17 points) 120/120 single-phase transformer. Calculate the values for the equivalent circuit for the single-phase transformer for the given short and open circuit test shown below. (2 po...
Question 31 (17 points) 120/120 single-phase transformer. Calculate the values for the equivalent circuit for the single-phase transformer for the given short and open circuit test shown below. (2 points) Draw the equivalent circuit. (1 point each) Find Ssc, QSC, Soc, Qoc, R1, R2, XI, X2, Rc, Xm, PFsc, PFoc, (esc θ。c) phase angel between V and I. What is the power rating of this transformer? Short circuit test (performed at High Voltage side) Vsc 16.20V rms, Isc 5.00 A...
The following Short Circuit test results are obtained for a 10KVA, 600V : 240V transformer. V...
The following Short Circuit test results are obtained for a 10KVA, 600V : 240V transformer. V = 20.7 V; I = 41.7 A; P = 37 W. Find the total leakage inductance Xeq referred to the primary side. Express your answer in Ohms and enter it with two digits after the decimal point (as in 12.34)
A 1000-VA 230/115-V transformer has been tested to determine its equivalent circuit. The results of the...
A 1000-VA 230/115-V transformer has been tested to determine its equivalent circuit. The results of the tests are shown below Open-circuit test Voc= 230 V loc= 0.45 A Poc 30 W Short-circuit test Vsc= 19.1 V lsc=8.7 A Psc= 42.3 W All data given were taken from the primary side of the transformer. Determine all the transformer parameters shown in Fig. 3. jXM Ns V. Ideal transformer Fig. 3
10-30 During a short-circuit test on a 10 MVA. 66 kV/7.2 kV transformer (see Fig. 10.28),...
10-30 During a short-circuit test on a 10 MVA. 66 kV/7.2 kV transformer (see Fig. 10.28), the following results were obtained: E, = 2640 V 72 A Calculate the following: a. The oal resistance and the total leakage re- actance referred to the 66 kV primary side b. The nominal impedance of the transformer referred to the primary side c. The percent impedance of the transformer
4.16 Consider a 50kVA, 2400/240V, 60Hz distribution transformer. Assume that the open-circuit and short-circuit tests were...
4.16 Consider a 50kVA, 2400/240V, 60Hz distribution transformer. Assume that the open-circuit and short-circuit tests were performed on the primary side of the transformer and that the following data were obtained: Voltmeter Ammeter Wattmeter Open-Circuit Test (on Primary) Voc = 2400 V 1oc=0.2083 A Poc=185 W Short-Circuit Test (on Primary) Vcc=52 V 15c=20.8333 A Psc=615W Determine the impedances of the approximate equivalent circuit referred to the primary side.
Problem 1 A 60Hz transformer is rated 30 (kVA), 4000(V)/120(V). The open circuit test, with the...
Problem 1 A 60Hz transformer is rated 30 (kVA), 4000(V)/120(V). The open circuit test, with the high voltage side open, gives Po= 100 (W), loc = 1.1455 (A). The short circuit test, measured with the low voltage side shorted, gives Pse = 180 (W), Vse = 129.79 (V). a) Determine the equivalent circuit for the transformer (both open and short circuit) b) Calculate the circuit components. (Req, Xeq, Rc, Xm)
(a) Describe the tests carried out on a single-phase transformer to determine its equivalent circuit parameters...
(a) Describe the tests carried out on a single-phase transformer to determine its equivalent circuit parameters and explain how each parameter is determined based on the test results. (b) A 2200/220 V, 15 kVA, single phase transformer has the following equivalent circuit parameters: The HV winding resistance and leakage reactance are 0.2Ω and 0.3Ω respectively. The LV winding resistance and leakage reactance are 0.012Ω and 0.03 Ω respectively. The magnetic circuit resistance and reactance referred to the HV side are...
A 2.2KVA 600/120 V, transformer has the following data for its OC test and SC test:...
A 2.2KVA 600/120 V, transformer has the following data for its OC test and SC test: OC Test: Voc: 120V Ioc: 0.6A Poc: 16W SC Test Vsc = 12V Isc = 3.67A Psc= 30W (a) Find the equivalent circuit referred to its HV and LV side. (b) If it operating as a step-down transformer, and delivering its rated current at the rated voltage and 0.85 pf lagging, find what will be the input voltage. (c) Find the Voltage regulation of...
lI. A single-phase 100 KVA, 2000/200 V transformer has the following test results Open-circuit (OC) test (LV side): 200 V, 8,0 A, 600 W Short-Circuit (SC) test (HV side): 100 V,50 A, 2000 W a. De...
lI. A single-phase 100 KVA, 2000/200 V transformer has the following test results Open-circuit (OC) test (LV side): 200 V, 8,0 A, 600 W Short-Circuit (SC) test (HV side): 100 V,50 A, 2000 W a. Determine the approximate equivalent circuit referred to the HV side. b. Find the voltage regulation at full-rated current delivering rated voltage and PF of 0.8 lagging. c. Calculate efficiency of transformer d. Assume that, voltage at HV side is 2000 V. Calculate the voltage at...
The short-circuit test readings for a 50-kVA 2400:240-V transformer are 48 V, 20.8 A, and 617...
The short-circuit test readings for a 50-kVA 2400:240-V transformer are 48 V, 20.8 A, and 617 W, with the instruments located on the high-voltage side and the low-voltage side short- circuited. An open-circuit test with the low-voltage side energized gives instrument readings on that side of 240 V, 5.41 A, and 186 W. 1. Calculate the equivalent parameters of the transformer as referred to the high-voltage side. 2. Draw the equivalent approximate circuit of that transformer referred to the high...
Question 31 (17 points) 120/120 single-phase transformer. Calculate the values for the equivalent circuit for the single-phase transformer for the given short and open circuit test shown below. (2 points) Draw the equivalent circuit. (1 point each) Find Ssc, QSC, Soc, Qoc, R1, R2, XI, X2, Rc, Xm, PFsc, PFoc, (esc θ。c) phase angel between V and I. What is the power rating of this transformer? Short circuit test (performed at High Voltage side) Vsc 16.20V rms, Isc 5.00 A...
A 1000-VA 230/115-V transformer has been tested to determine its equivalent circuit. The results of the tests are shown below Open-circuit test Voc= 230 V loc= 0.45 A Poc 30 W Short-circuit test Vsc= 19.1 V lsc=8.7 A Psc= 42.3 W All data given were taken from the primary side of the transformer. Determine all the transformer parameters shown in Fig. 3. jXM Ns V. Ideal transformer Fig. 3
10-30 During a short-circuit test on a 10 MVA. 66 kV/7.2 kV transformer (see Fig. 10.28), the following results were obtained: E, = 2640 V 72 A Calculate the following: a. The oal resistance and the total leakage re- actance referred to the 66 kV primary side b. The nominal impedance of the transformer referred to the primary side c. The percent impedance of the transformer
4.16 Consider a 50kVA, 2400/240V, 60Hz distribution transformer. Assume that the open-circuit and short-circuit tests were performed on the primary side of the transformer and that the following data were obtained: Voltmeter Ammeter Wattmeter Open-Circuit Test (on Primary) Voc = 2400 V 1oc=0.2083 A Poc=185 W Short-Circuit Test (on Primary) Vcc=52 V 15c=20.8333 A Psc=615W Determine the impedances of the approximate equivalent circuit referred to the primary side.
Problem 1 A 60Hz transformer is rated 30 (kVA), 4000(V)/120(V). The open circuit test, with the high voltage side open, gives Po= 100 (W), loc = 1.1455 (A). The short circuit test, measured with the low voltage side shorted, gives Pse = 180 (W), Vse = 129.79 (V). a) Determine the equivalent circuit for the transformer (both open and short circuit) b) Calculate the circuit components. (Req, Xeq, Rc, Xm)
lI. A single-phase 100 KVA, 2000/200 V transformer has the following test results Open-circuit (OC) test (LV side): 200 V, 8,0 A, 600 W Short-Circuit (SC) test (HV side): 100 V,50 A, 2000 W a. Determine the approximate equivalent circuit referred to the HV side. b. Find the voltage regulation at full-rated current delivering rated voltage and PF of 0.8 lagging. c. Calculate efficiency of transformer d. Assume that, voltage at HV side is 2000 V. Calculate the voltage at...
The short-circuit test readings for a 50-kVA 2400:240-V transformer are 48 V, 20.8 A, and 617 W, with the instruments located on the high-voltage side and the low-voltage side short- circuited. An open-circuit test with the low-voltage side energized gives instrument readings on that side of 240 V, 5.41 A, and 186 W. 1. Calculate the equivalent parameters of the transformer as referred to the high-voltage side. 2. Draw the equivalent approximate circuit of that transformer referred to the high...
