Homework Answers
Add Answer to:

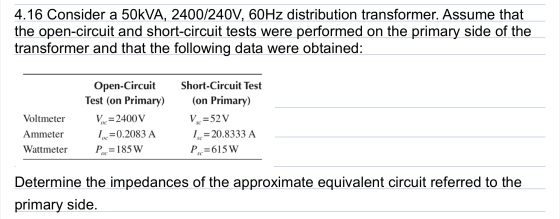

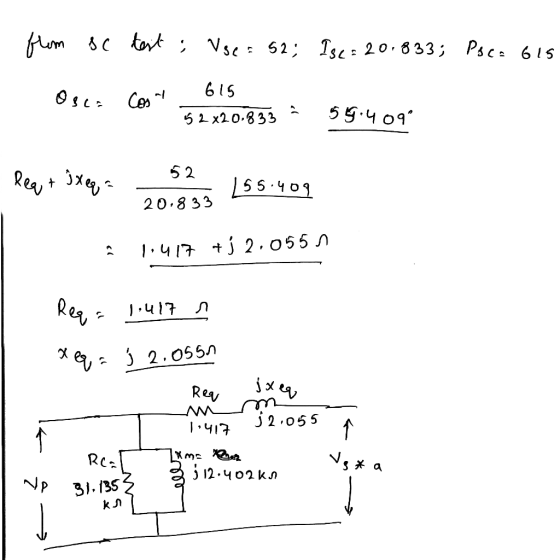

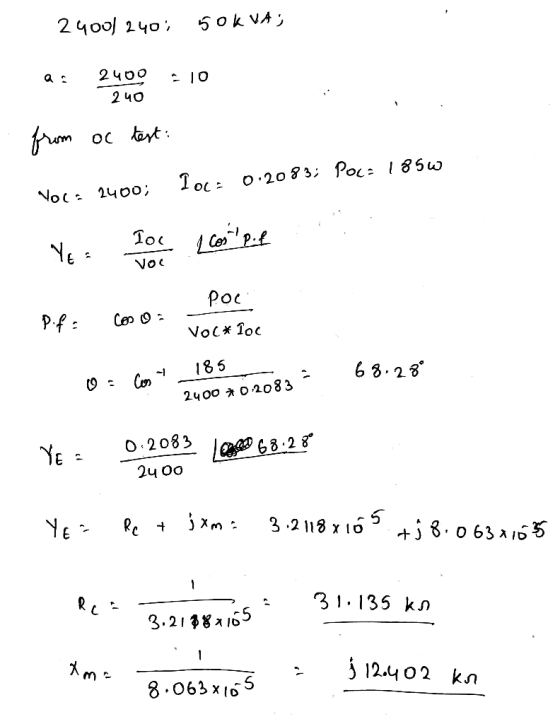

4.16 Consider a 50kVA, 2400/240V, 60Hz distribution transformer. Assume that the open-circuit and short-circuit tests were...
2) A 50kVA, 2400/240V single phase transformer has the test measurements: (20) Open circuit test: 240V,...
2) A 50kVA, 2400/240V single phase transformer has the test measurements: (20) Open circuit test: 240V, 5.0A, 450W (HV open) Short circuit test: 55V, 20.8A, 600W (LV short) a Caleulate the transformer equivalent circuit parameters and draw the transformer equivalent circuit. b) Find the voltage regulation and efficiency when the transformer is connected to a load that is 75% of the rated load current at 0.8 pf lagging. c) Find the voltage regulation and efficiency when the transformer is full...
A 20 kVA, 60 Hz, 2400/240 V single-phase distribution transformer has been tested to determine its...
A 20 kVA, 60 Hz, 2400/240 V single-phase distribution transformer has been tested to determine its equivalent circuit. The results of the test are shown below: Open circuit Test (on low voltage side) Voc=240V, Ioc=1.028A, Poc=122W. Short circuit test (On high voltage side) Vsc=61.3V, Isc=8.33A, Psc=257W. The transformer is supplying power to a load that draws 15 kVA at 240 V. The load power factor is 0.90 lagging. Calculate the voltage regulation for this operation condition.
The following data was obtained when open circuit and short circuit tests were performed on a...
The following data was obtained when open circuit and short circuit tests were performed on a single phase, 50 KVA, 2,400:240 V, 60 Hz distribution transformer: With high voltage winding open circuited: Voc = 240 V, Ioc = 4.85 A, Poc = 173 W With low voltage winding short circuited: Vsc = 52 V, Isc = 20.8 A, Psc = 650 W a) Determine the equivalent circuit of the transformer referred to its high voltage side and to its low...
Question 31 (17 points) 120/120 single-phase transformer. Calculate the values for the equivalent circuit for the single-phase transformer for the given short and open circuit test shown below. (2 po...
Question 31 (17 points) 120/120 single-phase transformer. Calculate the values for the equivalent circuit for the single-phase transformer for the given short and open circuit test shown below. (2 points) Draw the equivalent circuit. (1 point each) Find Ssc, QSC, Soc, Qoc, R1, R2, XI, X2, Rc, Xm, PFsc, PFoc, (esc θ。c) phase angel between V and I. What is the power rating of this transformer? Short circuit test (performed at High Voltage side) Vsc 16.20V rms, Isc 5.00 A...
A 1000-VA 230/115-V transformer has been tested to determine its equivalent circuit. The results of the...
A 1000-VA 230/115-V transformer has been tested to determine its equivalent circuit. The results of the tests are shown below Open-circuit test Voc= 230 V loc= 0.45 A Poc 30 W Short-circuit test Vsc= 19.1 V lsc=8.7 A Psc= 42.3 W All data given were taken from the primary side of the transformer. Determine all the transformer parameters shown in Fig. 3. jXM Ns V. Ideal transformer Fig. 3
The short-circuit test readings for a 50-kVA 2400:240-V transformer are 48 V, 20.8 A, and 617...
The short-circuit test readings for a 50-kVA 2400:240-V transformer are 48 V, 20.8 A, and 617 W, with the instruments located on the high-voltage side and the low-voltage side short- circuited. An open-circuit test with the low-voltage side energized gives instrument readings on that side of 240 V, 5.41 A, and 186 W. 1. Calculate the equivalent parameters of the transformer as referred to the high-voltage side. 2. Draw the equivalent approximate circuit of that transformer referred to the high...
A 20 KVA 20k/480 V 60 Hz distribution transformer is tested with the following results. Open...
A 20 KVA 20k/480 V 60 Hz distribution transformer is tested with the following results. Open circuit test, measured from the LV, Voc=480V, 10c-1.6A, Poc=268.8W. Short circuit test, measured from the HV, Vsc1130V, ISC1A, PS-395.5W. (a) Find the equivalent circuit of this transformer with all of the impedances referred to the HV side. Re- MAX= ΜΩ Rsc= Ohms X sca Ohms (b) Find the equivalent circuit of this transformer in per unit with respect to its own rated powr. Re-...
Problem 1 A 60Hz transformer is rated 30 (kVA), 4000(V)/120(V). The open circuit test, with the...
Problem 1 A 60Hz transformer is rated 30 (kVA), 4000(V)/120(V). The open circuit test, with the high voltage side open, gives Po= 100 (W), loc = 1.1455 (A). The short circuit test, measured with the low voltage side shorted, gives Pse = 180 (W), Vse = 129.79 (V). a) Determine the equivalent circuit for the transformer (both open and short circuit) b) Calculate the circuit components. (Req, Xeq, Rc, Xm)
I have these data from Open circuit and Short circuit tests: OCT: Voc= 105.9 v Ioc=...
I have these data from Open circuit and Short circuit tests:
OCT:
Voc= 105.9 v
Ioc= 0.08 A
Poc= 2 W
SCT:
Vsc= 12.9 V
Isc= 0.45 A
Psc= 3 W
pf= 0.669
How to correclty calculate the following
parameters:
The transformer rating
is
a. winding polarities b. core resistance and magnetization losses c. flux linkage losses d. winding resistances e. efficiency f. voltage regulation
Choose the base power as 50-KVA, the primary base voltage as 2400-V, the secondary voltage as...
Choose the base power as 50-KVA, the primary base voltage as 2400-V, the secondary voltage as 240-V: (a) Calculate and sketch the transformer equivalent circuit in per unit values' (b) The transformer is carrying rate load of 1.0 pu at.8 power factor lagging. Calculate the primary voltage in per unit. (c) Calculate the efficiency of the transformer at this load. A 50-KVA 2400/240-V, 60-Hz distribution transformer is tested with the following results: Open circuit Test Short Circuit Test Voc =...
2) A 50kVA, 2400/240V single phase transformer has the test measurements: (20) Open circuit test: 240V, 5.0A, 450W (HV open) Short circuit test: 55V, 20.8A, 600W (LV short) a Caleulate the transformer equivalent circuit parameters and draw the transformer equivalent circuit. b) Find the voltage regulation and efficiency when the transformer is connected to a load that is 75% of the rated load current at 0.8 pf lagging. c) Find the voltage regulation and efficiency when the transformer is full...
Question 31 (17 points) 120/120 single-phase transformer. Calculate the values for the equivalent circuit for the single-phase transformer for the given short and open circuit test shown below. (2 points) Draw the equivalent circuit. (1 point each) Find Ssc, QSC, Soc, Qoc, R1, R2, XI, X2, Rc, Xm, PFsc, PFoc, (esc θ。c) phase angel between V and I. What is the power rating of this transformer? Short circuit test (performed at High Voltage side) Vsc 16.20V rms, Isc 5.00 A...
A 1000-VA 230/115-V transformer has been tested to determine its equivalent circuit. The results of the tests are shown below Open-circuit test Voc= 230 V loc= 0.45 A Poc 30 W Short-circuit test Vsc= 19.1 V lsc=8.7 A Psc= 42.3 W All data given were taken from the primary side of the transformer. Determine all the transformer parameters shown in Fig. 3. jXM Ns V. Ideal transformer Fig. 3
The short-circuit test readings for a 50-kVA 2400:240-V transformer are 48 V, 20.8 A, and 617 W, with the instruments located on the high-voltage side and the low-voltage side short- circuited. An open-circuit test with the low-voltage side energized gives instrument readings on that side of 240 V, 5.41 A, and 186 W. 1. Calculate the equivalent parameters of the transformer as referred to the high-voltage side. 2. Draw the equivalent approximate circuit of that transformer referred to the high...
A 20 KVA 20k/480 V 60 Hz distribution transformer is tested with the following results. Open circuit test, measured from the LV, Voc=480V, 10c-1.6A, Poc=268.8W. Short circuit test, measured from the HV, Vsc1130V, ISC1A, PS-395.5W. (a) Find the equivalent circuit of this transformer with all of the impedances referred to the HV side. Re- MAX= ΜΩ Rsc= Ohms X sca Ohms (b) Find the equivalent circuit of this transformer in per unit with respect to its own rated powr. Re-...
Problem 1 A 60Hz transformer is rated 30 (kVA), 4000(V)/120(V). The open circuit test, with the high voltage side open, gives Po= 100 (W), loc = 1.1455 (A). The short circuit test, measured with the low voltage side shorted, gives Pse = 180 (W), Vse = 129.79 (V). a) Determine the equivalent circuit for the transformer (both open and short circuit) b) Calculate the circuit components. (Req, Xeq, Rc, Xm)
I have these data from Open circuit and Short circuit tests:
OCT:
Voc= 105.9 v
Ioc= 0.08 A
Poc= 2 W
SCT:
Vsc= 12.9 V
Isc= 0.45 A
Psc= 3 W
pf= 0.669
How to correclty calculate the following
parameters:
The transformer rating
is
a. winding polarities b. core resistance and magnetization losses c. flux linkage losses d. winding resistances e. efficiency f. voltage regulation
Choose the base power as 50-KVA, the primary base voltage as 2400-V, the secondary voltage as 240-V: (a) Calculate and sketch the transformer equivalent circuit in per unit values' (b) The transformer is carrying rate load of 1.0 pu at.8 power factor lagging. Calculate the primary voltage in per unit. (c) Calculate the efficiency of the transformer at this load. A 50-KVA 2400/240-V, 60-Hz distribution transformer is tested with the following results: Open circuit Test Short Circuit Test Voc =...
