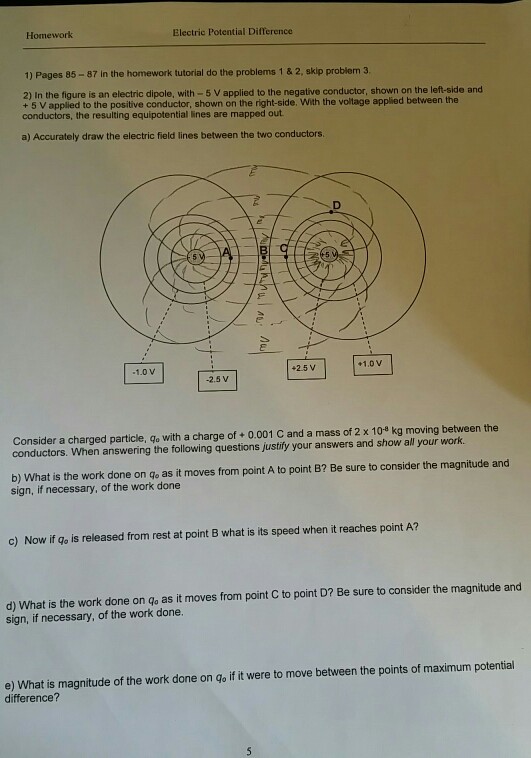

Homework Electric Potential Difference 1) Pages 85-87 in the homework tutorial do the problems 1 &2, skip problem 3 2) In the figure is an electric dipole, with-5 V applied to the negative conductor, shown on the left-side and + 5 V applied to the positive conductor, shown on the right-side. With the voltage applied between the conductors the resulting equipotential lines are mapped out a) Accurately draw the electric field lines between the two conductors 1.0 v +2.5 V +1.0 v 2.5 V Consider a charged particle, go with a charge of +o.001 C and a mass of 2 x 108 kg moving between the conductors. When answering the following questions justify your answers and show all your work. b) What is the work done on go as it moves from point A to point B2 Be sure to consider the magnitude and sign, if necessary, of the work done c) Now if go is released from rest at point B what is its speed when it reaches point A? d) What is the work done on qo as it moves from point C to point D? Be sure to consider the magnitude and sign, if necessary, of the work done. e) What is magnitude of the work done on go if it were to move between the points of maximum potential difference?

Electric Potential Difference

Answer 1

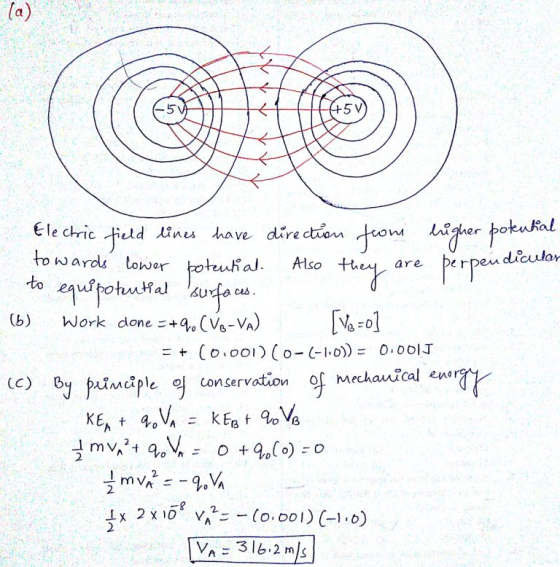

5 5 V E le chric Hid li have dire ction rpeu (b) +90(VB-VA) = + ( o, ool ) ( 0-(-1,0)) = Work done 0, 00LT by p ^^c?ple 익 Conservation of Mechanical end 2. 2x、Б8 V,2 _ _lo.ool) (-1.D) Ly 2

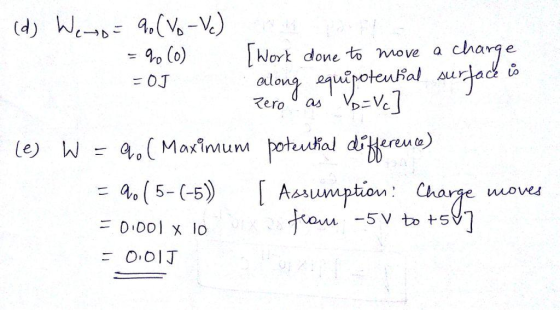

ard e Work done to ove a charg e Tero as ereru la a0 5- (-5) uroves wiove -5 V to 5 0,01丁
