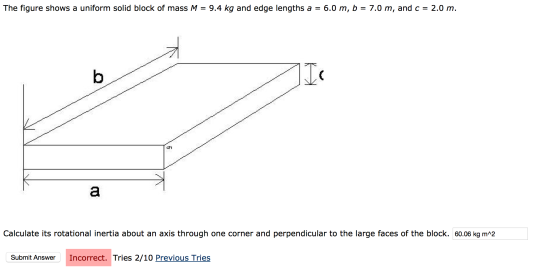

The figure shows a uniform solid block of mass M = 9.4 kg and edge lengths...

Question

Question

The figure shows a uniform solid block of mass M =

science physics

Answer 1

Answer #1

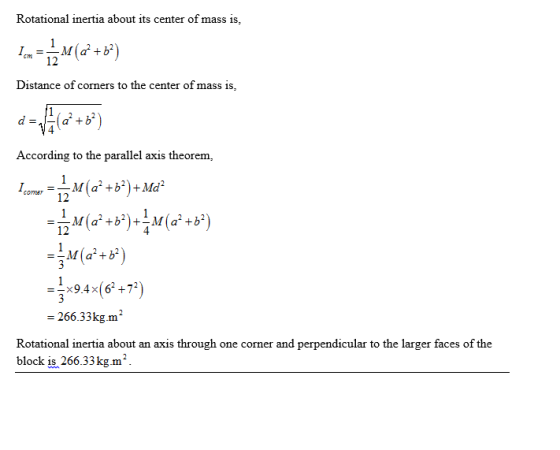

Rotational inertia about its center of mass is 12 Distance of corners to the center of mass is d) 2, 2 According to the paral

Answer 2

Similar Homework Help Questions

The uniform solid block in right figure has mass 0.2 kg and edge lengths a =...

The uniform solid block in right figure has mass 0.2 kg and edge lengths a = 5.0 cm, b = 8.0 cm, and c = 2.0 cm. Calculate its rotational inertia about an axis through one corner and perpendicular to the large faces.
The uniform solid block in the figure has mass 33.1 kg and edge lengths a =...

The uniform solid block in the figure has mass 33.1 kg and edge lengths a = 0.853 m, b = 1.77 m, and c = 0.130 m. Calculate its rotational inertia about an axis through one corner and perpendicular to the large faces.
The uniform solid block in the figure has mass 45.5 kg and edge lengths a =...

The uniform solid block in the figure has mass 45.5 kg and edge lengths a = 0.996 m, b = 1.47 m, and c = 0.0644 m. Calculate its rotational inertia about an axis through one corner and perpendicular to the large faces. Rotation axis Number Units the tolerance is +/-2%

The uniform solid block in the figure has mass 21.8 kg and edge lengths a 0.785m,...

The uniform solid block in the figure has mass 21.8 kg and edge lengths a 0.785m, b -1.91 m, and c-0.0535 m. Calculate its rotational inertia about an axis through one comer and perpendicular to the large faces. M Number Units the once
The uniform solid block in Fig. 11-36 has a mass of M = 5.35 kg and...

The uniform solid block in Fig. 11-36 has a mass of M = 5.35 kg and edge lengths a = 16.0 cm, b = 26.5 cm, and c = 2.25 cm. Calculate its rotational inertia about an axis through one corner and perpendicular to the large faces. 1.709 x kg•m2 Rotation axis
Chapter 10, Problem 043 The uniform solid block in the figure has mass 37.1 kg and...

Chapter 10, Problem 043 The uniform solid block in the figure has mass 37.1 kg and edge lengths a = 0.685 m, b = 1.33 m, and c = 0.130 m. Calculate its rotational inertia about an axis through one corner and perpendicular to the large faces. Rotation axis - Number Unitsy the tolerance is +/-5% Click if you would like to Show Work for this question: Open Show Work

In your physics lab you are given a 11.7-kg uniform rectangular plate with edge lengths 64.7...

In your physics lab you are given a 11.7-kg uniform rectangular plate with edge lengths 64.7 cm by 53.9 cm. Your lab instructor requires you to rotate it about an axis perpendicular to its plane and passing through one of its corners and then prepare a report on the project. For your report you will need the plate's moment of inertia with respect to this axis. Calculate it here first. Number kg m
The figure shows a communications satellite that is a solid cylinder with mass 1430 kg, diameter...

The figure shows a communications satellite that is a solid cylinder with mass 1430 kg, diameter 1.24 m, and length 1.64 m. Prior to launch from the shuttle cargo bay, the satellite is set spinning at 1.37 rev/s about its long axis. What are (a) its rotational inertia about the rotation axis and (b) its rotational kinetic energy?
In a physics lab, Asha is given a 10.7 kg uniform rectangular plate with edge lengths...

In a physics lab, Asha is given a 10.7 kg uniform rectangular plate with edge lengths 67.3 cm by 53.5 cm . Her lab instructor requires her to rotate the plate about an axis perpendicular to its plane and passing through one of its corners, and then prepare a report on the project. For her report, Asha needs the plate's moment of inertia ? with respect to given rotation axis. Calculate ? .

In the figure, a thin uniform rod (mass 4.6 kg, length 5.0 m) rotates freely about...

In the figure, a thin uniform rod (mass 4.6 kg, length 5.0 m) rotates freely about a horizontal axis A that is perpendicular to the rod and passes through a point at a distance d = 1.4 m from the end of the rod. The kinetic energy of the rod as it passes through the vertical position is 18 J. (a) what is the rotational inertia of the rod about axis A? (b) what is the (linear) speed of the...
