Draw the shear and moment diagrams for the beam subjected to the end couple. After you...

Question

Question

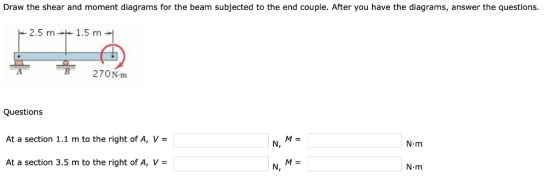

Draw the shear and moment diagrams for the beam subjected to the end couple. After you have the diagrams, answer the questions. 2.5 m1.5 m 270N-m Questions At a section 1.1 m to the right of A, V- At a section 3.5 m to the right of A, V- N, N-m N, N m

engineering Civil-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

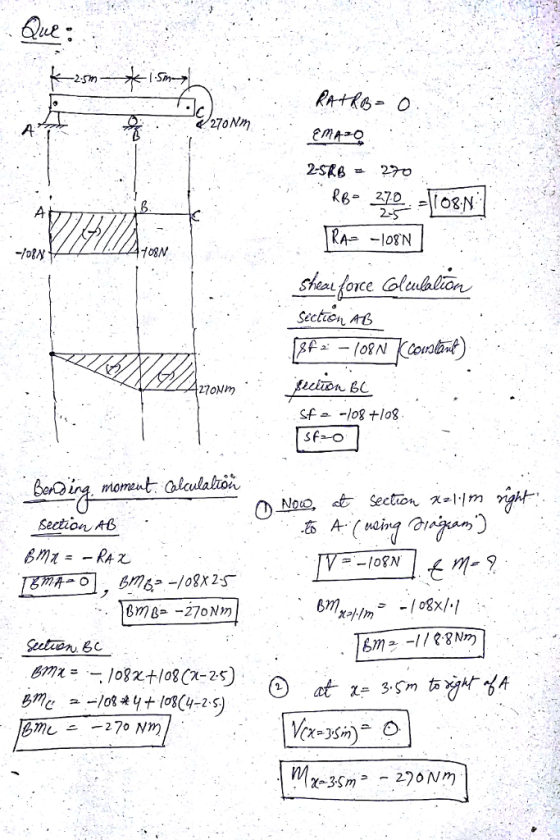

270Nm 2-S- Sector·A8 270Nm . Section AB

Add a comment
