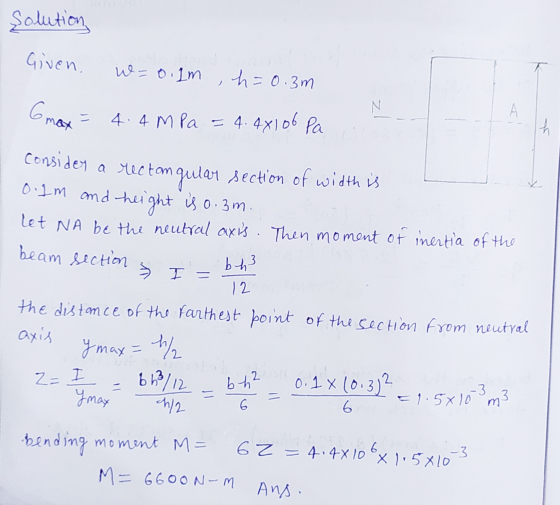

The rectangular cross section has width 0.1 m and height 0.3 m. A beam is found...
The rectangular cross section has width 0.1 m and height 0.3 m.
A beam is found to have a maximum bending stress of 4.4 MPa.
What is the magnitude of the bending moment in N-m?
Homework Answers
Add Answer to:
The rectangular cross section has width 0.1 m and height 0.3
m.
A beam is found...
The beam has the rectangular cross section shown. If w 1 kN/m
The beam has the rectangular cross section shown. If w 1 kN/m, determine the maximum bending stress in the beam. Sketch the stress distribution acting over the cross section.
1.2 (20 Marks) A beam of rectangular cross section (width b and height h) supports a...
1.2 (20 Marks) A beam of rectangular cross section (width b and height h) supports a uniformly distributed load along its entire length L. The allowable stresses in bending and shear are all and Tallow, respectively. a) If the beam is simply supported, what is the span length Lo below which the shear stress governs the allowable load and above which the bending stress governs? b) If the beam is supported as a cantilever, what is the length Lo below...
The beam has the rectangular cross section shown.
The beam has the rectangular cross section shown.Part A If w = 3kN/m, determine the maximum bending stress in the beam. Wood used for the beam has an allowable bending stress of ơ=6MPa (Figure 1) Part A Determine the minimum dimension d of the beams cross sectional area.
M h W The beam has a rectangular cross section with an abrupt change in cross...
M h W The beam has a rectangular cross section with an abrupt change in cross section height at its midpoint. Determine the maximum stress in the member given: M 0.5 k-ft w 4.75 in h 2 in t (beam thickness) 1.1 in K 1.4 Number ksi O Max
M h W The beam has a rectangular cross section with an abrupt change in cross section height at its midpoint. Determine the maximum stress in the member given: M 0.5...
A steel beam of rectangular cross section is 50mm wide and 80mm high. Please give the...
A steel beam of rectangular cross section is 50mm wide and
80mm high. Please give the answer of these two questions.
ECH0013 Mechanics of Solids & Structures Exercise Sheet 5: PLASTIC COLLAPSE A steel beam of rectangular cross section is 50 mm wide and 80 mm high. The yield stress is ơr MPa. Find the percentage of the cross-sectional area is occupied by the elastic core, if the beam is subjected to a bending moment of 13 kNm acting about...
C5.2 The cantilever beam of length L has a rectangular cross section of constant width b. The height h of the beam varies as(h2 - h)(x/L)2. The magnitude of the uniformly distributed load is wo....
C5.2 The cantilever beam of length L has a rectangular cross section of constant width b. The height h of the beam varies as(h2 - h)(x/L)2. The magnitude of the uniformly distributed load is wo. Given L, b, hi, h2, and wo, construct an al gorithm to plot the maximum normal stress acting on the cross section as a function of x. (a) Run the algorithm with L 2 m, b 25 mm, h 30 mm, h2120 mm, and wo...
A beam of rectangular cross section is 125 mm wide and 200 mm deep. If the...
A beam of rectangular cross section is 125 mm wide and 200 mm deep. If the maximum bending moment is 28.5 kN.m, determine (a) the maximum tensile and compressive bending stress, and (b) the bending stress 25 mm from the top of the section.
P8.008 The dimensions of the double-box beam cross section shown in the figure are b =...
P8.008 The dimensions of the double-box beam cross section shown in the figure are b = 190 mm, d = 65 mm, and t = 3 mm. If the maximum allowable bending stress is 19 MPa, determine the maximum internal bending moment Mz magnitude that can be applied to the beam. Answer: Mz = N-m
A beam with length L-2 m and rectangular cross-section of width b-75 mm and height h...
A beam with length L-2 m and rectangular cross-section of width b-75 mm and height h 150 mm has a uniformly distributed load of intensity q 2.5 kN/m (see figure below). What is the maximum deflection δmax in millimeters? The material is aluminum with modulus of elasticity E 70 GPa. T77
A rectangular cross section at a location along a beam in bending is
(a). A rectangular cross section at a location along a beam in bending is acted upon by a bending moment and a shear force. The cross section is \(120 \mathrm{~mm}\) wide, \(300 \mathrm{~mm}\) deep and is orientated such that it is in bending about its major axis of bending. The magnitudes of the bending moment and shear force are \(315 \mathrm{kNm}\) and \(240 \mathrm{kN}\) respectively. Determine the maximum bending and shear stresses on the cross section. Plot the bending and...
1.2 (20 Marks) A beam of rectangular cross section (width b and height h) supports a uniformly distributed load along its entire length L. The allowable stresses in bending and shear are all and Tallow, respectively. a) If the beam is simply supported, what is the span length Lo below which the shear stress governs the allowable load and above which the bending stress governs? b) If the beam is supported as a cantilever, what is the length Lo below...
M h W The beam has a rectangular cross section with an abrupt change in cross section height at its midpoint. Determine the maximum stress in the member given: M 0.5 k-ft w 4.75 in h 2 in t (beam thickness) 1.1 in K 1.4 Number ksi O Max
M h W The beam has a rectangular cross section with an abrupt change in cross section height at its midpoint. Determine the maximum stress in the member given: M 0.5...
A steel beam of rectangular cross section is 50mm wide and
80mm high. Please give the answer of these two questions.
ECH0013 Mechanics of Solids & Structures Exercise Sheet 5: PLASTIC COLLAPSE A steel beam of rectangular cross section is 50 mm wide and 80 mm high. The yield stress is ơr MPa. Find the percentage of the cross-sectional area is occupied by the elastic core, if the beam is subjected to a bending moment of 13 kNm acting about...
C5.2 The cantilever beam of length L has a rectangular cross section of constant width b. The height h of the beam varies as(h2 - h)(x/L)2. The magnitude of the uniformly distributed load is wo. Given L, b, hi, h2, and wo, construct an al gorithm to plot the maximum normal stress acting on the cross section as a function of x. (a) Run the algorithm with L 2 m, b 25 mm, h 30 mm, h2120 mm, and wo...
A beam of rectangular cross section is 125 mm wide and 200 mm deep. If the maximum bending moment is 28.5 kN.m, determine (a) the maximum tensile and compressive bending stress, and (b) the bending stress 25 mm from the top of the section.
P8.008 The dimensions of the double-box beam cross section shown in the figure are b = 190 mm, d = 65 mm, and t = 3 mm. If the maximum allowable bending stress is 19 MPa, determine the maximum internal bending moment Mz magnitude that can be applied to the beam. Answer: Mz = N-m
A beam with length L-2 m and rectangular cross-section of width b-75 mm and height h 150 mm has a uniformly distributed load of intensity q 2.5 kN/m (see figure below). What is the maximum deflection δmax in millimeters? The material is aluminum with modulus of elasticity E 70 GPa. T77
