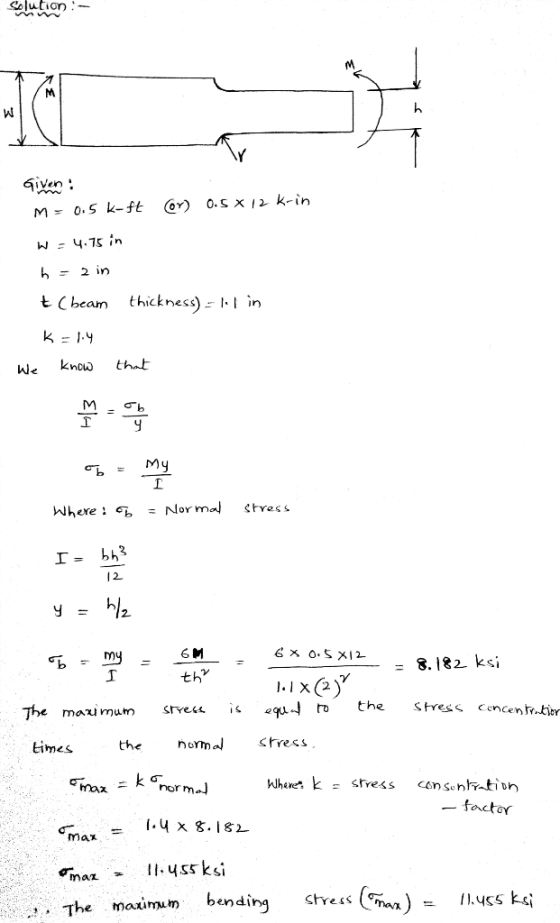

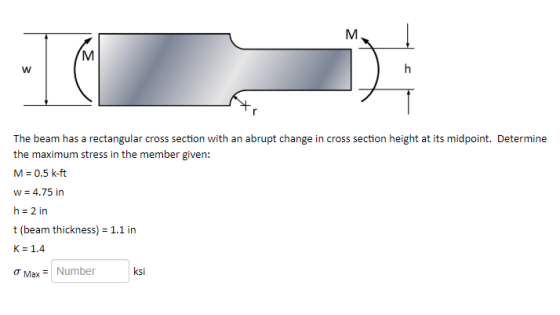

M h W The beam has a rectangular cross section with an abrupt change in cross...
The beam has the rectangular cross section shown. If w 1 kN/m
The beam has the rectangular cross section shown. If w 1 kN/m, determine the maximum bending stress in the beam. Sketch the stress distribution acting over the cross section.
C5.2 The cantilever beam of length L has a rectangular cross section of constant width b. The height h of the beam varies as(h2 - h)(x/L)2. The magnitude of the uniformly distributed load is wo....
C5.2 The cantilever beam of length L has a rectangular cross section of constant width b. The height h of the beam varies as(h2 - h)(x/L)2. The magnitude of the uniformly distributed load is wo. Given L, b, hi, h2, and wo, construct an al gorithm to plot the maximum normal stress acting on the cross section as a function of x. (a) Run the algorithm with L 2 m, b 25 mm, h 30 mm, h2120 mm, and wo...
A beam with a square tubular cross section is subjected to the loading shown. The cross...
A beam with a square tubular cross section is subjected to the
loading shown. The cross section of the beam is also
shown. Determine the maximum bending stress in the beam given:
L = 9 ft
P = 1,300 lb
do = 6 in
di = 5.4 in
1/3 We were unable to transcribe this imageA beam with a square tubular cross section is subjected to the loading shown. The cross section of the beam is also shown. Determine the...
The beam has the rectangular cross section shown.
The beam has the rectangular cross section shown.Part A If w = 3kN/m, determine the maximum bending stress in the beam. Wood used for the beam has an allowable bending stress of ơ=6MPa (Figure 1) Part A Determine the minimum dimension d of the beams cross sectional area.
The rectangular cross section has width 0.1 m and height 0.3 m. A beam is found...
The rectangular cross section has width 0.1 m and height 0.3 m. A beam is found to have a maximum bending stress of 4.4 MPa. What is the magnitude of the bending moment in N-m?
A timber [E = 1,800 ksi] beam is loaded and supported as shown. The cross section...
A timber [E = 1,800 ksi] beam is loaded and supported
as shown. The cross section of the timber beam is b = 4
in. wide and h = 7 in. deep. The beam is supported at
B by a 0.875-in.-diameter aluminum [E = 10,500
ksi] rod, which has no load before the distributed load is applied
to the beam. After a distributed load of w = 610 lb/ft is
applied to the beam, determine
(a) the force carried by...
The cross-section of a beam is shown below. The top rectanular piece of the cross-section is...
The cross-section of a beam is shown below. The top rectanular
piece of the cross-section is a steel section 6 inches wide by 8
inches deep. The dimensions of the member are shown below in the
table. The cross-section is loaded in bending by a moment about the
zz-axis. The allowable bending stress of the cross-section is 42
(ksi).
Determine:
a) the elastic centroid of the cross-section.
b) the yield moment.
c) the plastic centroid of the cross-section
d) the...
A beam of rectangular cross section 200 mm deep and 100 mm wide. If the beam...
A beam of rectangular cross section 200 mm deep and 100 mm wide. If the beam is 3m long, simply supported at either end and carries point loads as shown in FIGURE 2 (on page 4). 2. SAN 1OAN R, FR 100mm FIG.2 (a) Calculate the maximum bending moment (b) Calculate the maximum stress in the beam (c) At the point of maximum stress sketch a graph of the stress distribution through the thickness of the beam, indicating which are...
Homework Set #6-Chapter 6 Problem 6.87 4 of 10 > The beam has a rectangular cross...
Homework Set #6-Chapter 6 Problem 6.87 4 of 10 > The beam has a rectangular cross section with b = 8 in. 2b 6 ft Part A Determine the largest maximum intensity wo of the triangular distributed load that can be supported if the allowable bending stress is σ 1-1.7 ksi Express your answer to three significant figures. uo = Submit Provide Feedback Next >
The beam has the rectangular cross section shown. A beam of length 6 meters pin-supported 2...
The beam has the rectangular cross section shown. A beam of
length 6 meters pin-supported 2 meters from the left end and
roller-supported 2 meters from the right end. The beam has a
rectangular cross section with base length 50 millimeters and
height 150 millimeters. Load: w, uniform along beam.
Part A If w = 4 kN/m , determine the maximum bending stress in
the beam.
Can you please draw out the moment and shear diagrams for this
one using...
C5.2 The cantilever beam of length L has a rectangular cross section of constant width b. The height h of the beam varies as(h2 - h)(x/L)2. The magnitude of the uniformly distributed load is wo. Given L, b, hi, h2, and wo, construct an al gorithm to plot the maximum normal stress acting on the cross section as a function of x. (a) Run the algorithm with L 2 m, b 25 mm, h 30 mm, h2120 mm, and wo...
A beam with a square tubular cross section is subjected to the
loading shown. The cross section of the beam is also
shown. Determine the maximum bending stress in the beam given:
L = 9 ft
P = 1,300 lb
do = 6 in
di = 5.4 in
1/3 We were unable to transcribe this imageA beam with a square tubular cross section is subjected to the loading shown. The cross section of the beam is also shown. Determine the...
A timber [E = 1,800 ksi] beam is loaded and supported
as shown. The cross section of the timber beam is b = 4
in. wide and h = 7 in. deep. The beam is supported at
B by a 0.875-in.-diameter aluminum [E = 10,500
ksi] rod, which has no load before the distributed load is applied
to the beam. After a distributed load of w = 610 lb/ft is
applied to the beam, determine
(a) the force carried by...
The cross-section of a beam is shown below. The top rectanular
piece of the cross-section is a steel section 6 inches wide by 8
inches deep. The dimensions of the member are shown below in the
table. The cross-section is loaded in bending by a moment about the
zz-axis. The allowable bending stress of the cross-section is 42
(ksi).
Determine:
a) the elastic centroid of the cross-section.
b) the yield moment.
c) the plastic centroid of the cross-section
d) the...
A beam of rectangular cross section 200 mm deep and 100 mm wide. If the beam is 3m long, simply supported at either end and carries point loads as shown in FIGURE 2 (on page 4). 2. SAN 1OAN R, FR 100mm FIG.2 (a) Calculate the maximum bending moment (b) Calculate the maximum stress in the beam (c) At the point of maximum stress sketch a graph of the stress distribution through the thickness of the beam, indicating which are...
Homework Set #6-Chapter 6 Problem 6.87 4 of 10 > The beam has a rectangular cross section with b = 8 in. 2b 6 ft Part A Determine the largest maximum intensity wo of the triangular distributed load that can be supported if the allowable bending stress is σ 1-1.7 ksi Express your answer to three significant figures. uo = Submit Provide Feedback Next >
The beam has the rectangular cross section shown. A beam of
length 6 meters pin-supported 2 meters from the left end and
roller-supported 2 meters from the right end. The beam has a
rectangular cross section with base length 50 millimeters and
height 150 millimeters. Load: w, uniform along beam.
Part A If w = 4 kN/m , determine the maximum bending stress in
the beam.
Can you please draw out the moment and shear diagrams for this
one using...
