Find out the reactions at all supports as well as the force transmitted through the hinges...

Question

Question

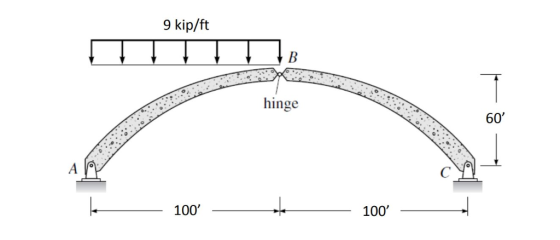

Find out the reactions at all supports as well as the force transmitted through the hinges

9 kip/ft hinge 60 100 100

engineering Civil-Engineering

Answer 1

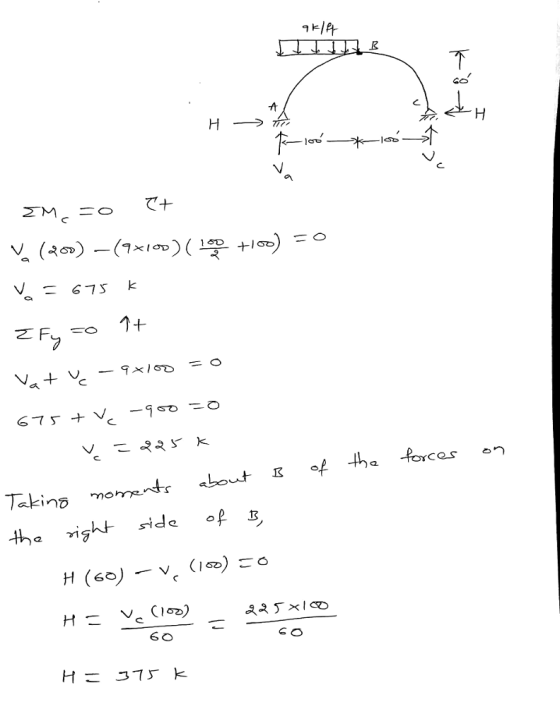

Answer #1

Answer 2
