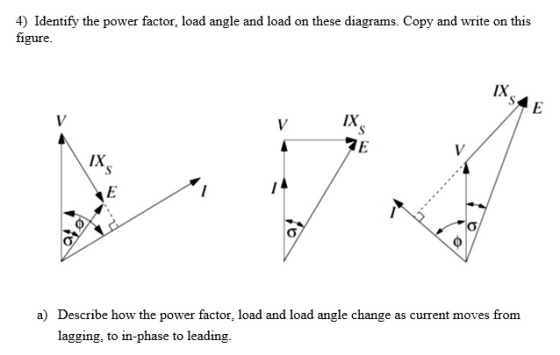

4) Identify the power factor, load angle and load on these diagrams. Copy and write on this figure. V IX a) Describe how the

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Request Professional Answer

Request Answer!

We need at least 10 more requests to produce the answer.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)

All students who have requested the answer will be notified once they are available.
Know the answer?
Add Answer to:
4) Identify the power factor, load angle and load on these diagrams. Copy and write on...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Similar Homework Help Questions

  • Problem 4: A plant consumes 20 kW of power. If the load power factor is 0.9...

    Problem 4: A plant consumes 20 kW of power. If the load power factor is 0.9 lagging, what is the angle by which the load current lags the load voltage? What is the load current, I, if the load voltage is 240/10° VrMS? Answers: 25.84,-92.59/-15.849 ARMS

  • A single Phase load draws 10 kW from a 410 V line at a power factor...

    A single Phase load draws 10 kW from a 410 V line at a power factor of 0.707 lagging. Determine: (a) The rms current (b) The reactive power required by the load (c) We want to correct the power factor to be 0.9 lagging by adding a capacitor, what will be the new reactive power? (d) draw the power triangle with the old and new reactive powers

  • Question 1 Load and Power Factor (Constant Rotor Field, E < V) Load and Power Factor...

    Question 1 Load and Power Factor (Constant Rotor Field, E < V) Load and Power Factor (Constant Rotor Field, E = V) Load and Power Factor (Constant Rotor Field, E > V) Eno-load = V Eno-load 12 12 12 min = ? Omar = ? Amin = ? emax = ? Amin = ? emax = ? V : no-load Pmax Emar-load Emar-load Emax-lond chteh chteh chteh With reference to Chapter 4: Slides 22-24, determine the range of power factors...

  • EXPLAIN THESE QUESTIONS WITH THE HELP OF DIAGRAMS AND LABEL DIAGRAMS IN SUCH A WAY THAT...

    EXPLAIN THESE QUESTIONS WITH THE HELP OF DIAGRAMS AND LABEL DIAGRAMS IN SUCH A WAY THAT I CAN EASILY UNDERSTAND WHAT WE ARE FINDING AND HOW WE ARE FINDING THE REQUIRED THINGS .I AM POSTING MY QUESTION 4TH TIME PLEASE DONOT WASTE IT AND PLEASE DO ALL STEPS I NEED MY ANSWER STEP BY STEP by the line Two balanced Y-connected loads, one drawing 10 kW at 0.8 power factor lagging and the other 15 kW at 0.9 power factor...

  • 2. [15 pts total] A single-phase load draws 1 MW at 0.75 power factor lagging. a....

    2. [15 pts total] A single-phase load draws 1 MW at 0.75 power factor lagging. a. [10 pts] Determine the power required from an added parallel capacitor to bring the power factor of the parallel combination up to 0.95 lagging. b. [05 pts) Determine the power required from an added parallel capacitor to bring the power factor of the parallel combination up to 0.95 leading.

  • An Inductive load 1 phase pulling power 6 kW on power factor 0.85 lagging and voltage...

    An Inductive load 1 phase pulling power 6 kW on power factor 0.85 lagging and voltage 230 V. Find : a) Reactive power and Apparent power consumed by the load b) Load impedance c) Draw the triangle power of the load

  • 3- Two balanced Y-connected loads in parallel, one drawing 25 kW at 0.6 power factor lagging...

    3- Two balanced Y-connected loads in parallel, one drawing 25 kW at 0.6 power factor lagging and the other drawing 15 kVA at 0.8 power factor leading, are supplied by a balanced, three-phase, 480-volt source. (a) Draw the power triangle for each load and for the combined load. (b) Determine the power factor of the combined load and state whether lagging or leading. (c) Determine the magnitude of the line current from the source. (d) ∆- connected capacitors are now...

  • Question 4 (10 marks) A) A 10-kVA, 415-V, three phase, Y -connected synchronous generator has a...

    Question 4 (10 marks) A) A 10-kVA, 415-V, three phase, Y -connected synchronous generator has a winding resistance of 0.3 Q and a synchronous reactance of 0.6 on a per phase basis. Determine its voltage regulation at full load when the power factor is (a) 75% lagging and (b) 75% leading. B) (10 marks) A 220-V, Y-connected, three-phase, synchronous motor has a synchronous reactance of 4 O/phase and negligible armature winding resistance. At a certain load the motor takes 7.5...

  • A 3-φ Y connected source supplies 12 kVA with a power factor of 0.8 lagging to a parallel

    A 3-φ Y connected source supplies 12 kVA with a power factor of 0.8 lagging to a parallel combination of a Y load and a Δ load. If the Y load consumes 5.6 kVA at a power factor of 0.75 lagging and has phase-a current of 8 Arms and the angle of the current is -30°, determine the phase impedance of the Δ load. Real part of the impedance of the Δ load in Ohms: Imaginary part of the impedance of the...

  • A short 3-phase, 33-kV power transmission line delivers a load of 7-MW at a power factor...

    A short 3-phase, 33-kV power transmission line delivers a load of 7-MW at a power factor of 0.85 lagging and 33-kV. If the series impedance of the line is 20+j30 Ohms/phase, calculate The ABCD constants (parameters) The sending end voltage The load angle The voltage regulation The transmission efficiency
