Question

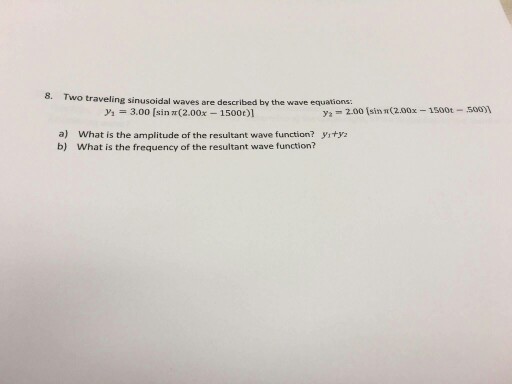

Two traveling sinusoidal waves are described by eq


0 0
Add a comment Improve this question Transcribed image text
Answer #1

y_{1}= 3.00[\sin (2.00x-1500t)]

and   y_{2}= 2.00[\sin (2.00x-1500t-0.500)]

y= y_{1}+y_{2} = A'\sin (2.00x-\theta )

Where A' = \sqrt{3^{2}+2^{2}+2\times 3\times 2\cos (0.500)} = \sqrt{3^{2}+2^{2}+2\times 3\times 2\times 0.8775}

A' = 4.85 cm

Part B frequency of the resultant wave function will be zero

Add a comment
Know the answer?
Add Answer to:
Two traveling sinusoidal waves are described by equations: y_1 = 3.00 [sin pi(2.00x - 1500t)] y_2...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Two transverse sinusoidal waves combining in a medium are described by the wave functions y_1 =...

    Two transverse sinusoidal waves combining in a medium are described by the wave functions y_1 = 1.00 sin pi (x + 0.900t) y_2 = 1.00 sin pi(x - 0.900t) where x, y_1, and y_2 are in centimeters and t is in seconds. Determine the maximum transverse position of an element of the medium at the following positions. x = 0.240 cm |y max| = x = 0.340 cm |ymax| = x = 1.40 cm |ymax| = Find the three smallest...

  • Two traveling sinusoidal waves are described by the wave functions y1 = 4.80 sin [π(4.10x −...

    Two traveling sinusoidal waves are described by the wave functions y1 = 4.80 sin [π(4.10x − 1125t)] y2 = 4.80 sin [π(4.10x − 1125t − 0.250)] where x, y1, and y2 are in meters and t is in seconds. (a) What is the amplitude of the resultant wave function y1 + y2?

  • Two sinusoidal waves traveling in opposite directions interfere to produce a standing wave with the following...

    Two sinusoidal waves traveling in opposite directions interfere to produce a standing wave with the following wave function, where x is in meters and t is in seconds. y = (3.00 m) sin(0.900x) cos(6000) Determine the wavelength of the interfering waves. m What is the frequency of the interfering waves? Hz Find the speed of the interfering waves. m/s

  • Two sinusoidal waves traveling in opposite directions interfere to produce a standing wave with the following...

    Two sinusoidal waves traveling in opposite directions interfere to produce a standing wave with the following wave function, where x is in meters and t is in seconds. y = (3.00 m) sin(0.800x) cos(600t) Determine the wavelength of the interfering waves. m What is the frequency of the interfering waves? Hz Find the speed of the interfering waves. m/s

  • Two sinusoidal waves traveling in opposite directions interfere to produce a standing wave with the following...

    Two sinusoidal waves traveling in opposite directions interfere to produce a standing wave with the following wave function, where x is in meters and t is in seconds. y = (3.00 m) sin(0.200x) cos(2006) Determine the wavelength of the interfering waves. What is the frequency of the interfering waves? Hz Find the speed of the interfering waves. m/s Two sinusoidal waves combining in a medium are described by the following wave functions, where x is in centimeters and t is...

  • please type if possible. If not PLEASE make readable! 7. Consider two sinusoidal sine waves traveling...

    please type if possible. If not PLEASE make readable! 7. Consider two sinusoidal sine waves traveling along a string, modeled as y(x,t) = (0.40 cm) sin (3m-1 2s-1t) and y(x, t) = (0.40 cm)sin(3m-1 - 2s-1t+5 a) What is the height of the resultant wave formed by the interference of the two waves at the position x 1.0 m at time t = 3.0 s? b) A 2-m long string is stretched between two supports with a tension that produces...

  • Please show all work. Two waves are described by y1 = 0.27sin[Pi(5x -170t)] and y2 =...

    Please show all work. Two waves are described by y1 = 0.27sin[Pi(5x -170t)] and y2 = 0.27sin[Pi(5x ? 170t) + Pi/ 8] , where y1, y2, and x are in meters and t is in seconds. When these two waves are combined, a traveling wave is produced. What are the (a) amplitude, (b) wave speed, and (c) wavelength of that traveling wave? (a) Number Units(b) Number Units (c) Number Units

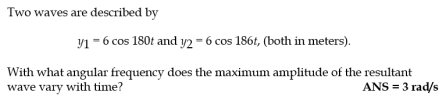

  • I know the answer is 3 rad/s, but I need help getting there. Please show your...

    I know the answer is 3 rad/s, but I need help getting there. Please show your work. Two waves are described by y_1 = 6 cos 180t and y_2 = 6 cos 186t, (both in meters). With what angular frequency does the maximum amplitude of the resultant wave vary with time?

  • Two waves traveling on a string in the same direction both have a frequency of 100...

    Two waves traveling on a string in the same direction both have a frequency of 100 Hz, a wavelength of 2 cm and an amplitude of 0.02 m. What is the amplitude of the resultant wave if the original wave differ in phase by: π/6 π/3 What is the phase difference between the waves if the amplitude of the resultant wave is 0.02 m, the same as the original wave?

  • Two waves, yı = (2.9 mm) sin [(22.1 rad /m)x – (540 rad/s)t] and y2 =...

    Two waves, yı = (2.9 mm) sin [(22.1 rad /m)x – (540 rad/s)t] and y2 = (1.3 mm) sin [(22.1 rad /m)x + (540 rad /s)] travel along a stretched string. (a) Find the resultant wave y = y1+ y2 as a function of t for x = 0 and 1/2 where is the wavelength. Omit units. (b) The resultant wave is the superposition of a standing wave and a traveling wave. In which direction does the traveling wave move?...
