a = 45°, y = 60°, F = 10N, F2 = 15N, F3 = 12N. Determine...

Question

Question

a = 45°, y = 60°, F = 10N, F2 = 15N, F3 = 12N. Determine the force sys- tem resultant (its magnitude and direction)

engineering Mechanical-Engineering

Answer 1

Answer #1

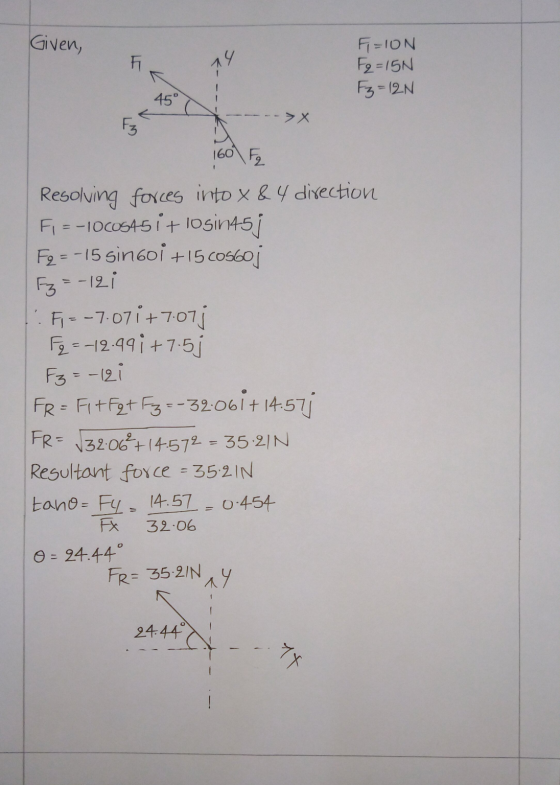

Given F 17 F=ION Fq=15N Fz=12N 45° ------> X 160 h Resolving forces into X & 4 direction Fi = -10c0545i + losin45j F2 = -15 s

Answer 2

Similar Homework Help Questions

Suppose that F1 = 400 N. Part A Determine the magnitude of the resultant F'=F1 + F2.

Suppose that F1 = 400 N.Part A Determine the magnitude of the resultant F'=F1 + F2. Part B Determine the direction of the resultant force F'=F1 + F2, measured counterclockwise from the positive x axis. Part C Determine the magnitude of the resultant force FR = F1 + F2 + F3. Part D Determine the direction of the resultant force FR = F1 + F2 + F3. measured counterclockwise from the positive x axis.
If F3= 12 KN, O=45, $=45°, determine the magnitude and coordinate direction angles of the resultant...

If F3= 12 KN, O=45, $=45°, determine the magnitude and coordinate direction angles of the resultant force acting on the ball-and-socket joint. F2 = 8 kN Fi = 10 kN
Part A F, 200 N 60 F, 45 60 Determine the magnitude and direction angles of...

Part A F, 200 N 60 F, 45 60 Determine the magnitude and direction angles of F2, so that the resultant of the two forces acts upward along the z axis of the pole and has a magnitude of 275 N F2 200 N, a 45.0°, B=-60.0°, y 29.0 F2 246 N, a 54.9, B- 114.0°, 44.7° OF2 246 N, a 54.9, B 66.0°, y44.7 F2 200 N, a 45.0, B 120.0°, = 29.0 Request Answer Submit

Show all workout please. 2. v . F3 600 N F, 700 N 450 F2 -900...

Show all workout please. 2. v . F3 600 N F, 700 N 450 F2 -900 N o Resolve each force acting on the gusset plate into its x and y components, and express the force Fi as a Cartesian vector o Express the force F2 as a Cartesian vector o Express the force F3 as Cartesian vector 。The magnitude ofthe resultant force, FR IN i+l j) N j) N o The direction of the resultant force, measured counterclockwise from...
Determine the x and y of the forces 1. Resultants of force systems (10 pts) Determine...

Determine the x and y of the forces 1. Resultants of force systems (10 pts) Determine the x and y components of the three forces F1, F2 and F3. Also, determine the magnitude and direction of the resultant force. Solve the problem by filling the table below. Indicate force direction with positive/negative sign. Fz=100 N F=100N N x component (N) y component (N) 45° ST F3=200 N Resultant force
If F, = 200 N. F2 = 400 N and F3 = 350 N. determine the...

If F, = 200 N. F2 = 400 N and F3 = 350 N. determine the magnitude and coordinate direction angles of the force required for equilibrium of particle at O.

If F1 = 730 lb . F2 = 420 lb. F3 = 600 lb, determine the magnitude of the resultant force acting on the corbel

Part A If F1 = 730 lb . F2 = 420 lb. F3 = 600 lb, determine the magnitude of the resultant force acting on the corbel (Figure 1) Part B Determine the direction of the resultant force acting on the corbel measured counterclockwise from the x axis.
Show all workout please. F,-260 N 45° F2 100 N o x direction component of Fi,...

Show all workout please. F,-260 N 45° F2 100 N o x direction component of Fi, Fix? y direction component of Fi. Fi,y? o x direction component of F2, Fx y direction component of F2. F2y? o The magnitude of the resultant force, FR o The direction of the resultant force, measured counterclockwise from the positive x axis,
The hook shown in the Figure below is subjected to three forces shown in F1, F2 and F3.

Problem-1.2 The hook shown in the Figure below is subjected to three forces shown in F1, F2 and F3. a) Find the resultant of the force F1 and F2 and call it FA. Use parallelogram law to find the magnitude and direction of the force FA b) Find the magnitude and direction of the force F3, if the resultant FR of the all three forces is 750 N and it is directed along the x-axis.

4. Find the Resultant Force and directional angle using the method of components F-750 N 45" F-850 N F5-625 N 5...

4. Find the Resultant Force and directional angle using the method of components F-750 N 45" F-850 N F5-625 N 5. Find the Resultant of F1 and the respective angles for same using the Cartesian Method? F-300N e0r 60 F2 = 50N 6. Find the Magnitude of the resultant force and its direction using the Method of Components Fi- 30 Ib 45° 15° F2 40 lb 15 F-25 lb 4. Find the Resultant Force and directional angle using the method...
