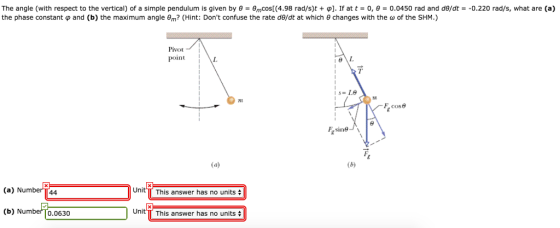

![The angle (with respect to the vertical) of a simple pendulum is given by θ-e,nCos[(4.98 rad/s)t + φ]. If at t-0, θ = 0.0450 rad and deat =-0.220 rad/s, what are (a) the phase constant φ and (b) the maximum angle θm? (Hint: Dont confuse the rate de/dt at which θ changes with the ω of the SHM.) Pivot Point cose (a) Number T44 Unit T This answer has no units (b) Numbeo.0630 Unit T This answer has no units](http://img.homeworklib.com/questions/338ea150-7172-11eb-86fb-234178d08082.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
The angle (with respect to the vertical) of a simple pendulum is given by theta =...
Suppose that a simple pendulum consists of a small 92 g bob at the end of...
Suppose that a simple pendulum consists of a small 92 g bob at the end of a cord of negligible mass. If the angle e between the cord and the vertical is given by -(0.086 rad) cos[(7.4 rad/s) t + 4], what are (a) the pendulum's length and (b) its maximum kinetic energy? (a) Number (b) Number Units Units
P4. A clock keeps time using the periodic motion of a simple pendulum. The pendulum consists...
P4. A clock keeps time using the periodic motion of a simple pendulum. The pendulum consists of a string of length L and a bob of mass m-5.00 kg attached to the end of the string. The pendulum has a period T-1.00 s. The initial angle (0) at 0 is equal to 0.175 rad. The bob is released from rest (i.e. -0) at -0. The angle between the string and the vertical is given by the equation: e-a cos (or...
Suppose that a simple pendulum consists of a small 96 g bob at the end of...
Suppose that a simple pendulum consists of a small 96 g bob at the end of a cord of negligible mass. If the angle θ between the cord and the vertical is given by θ = (0.098 rad) cos[(7.0 rad/s) t + φ], what are (a) the pendulum's length and (b) its maximum kinetic energy?
1. [1pt] The angle that the string of a long pendulum makes with the vertical is...
1. [1pt] The angle that the string of a long pendulum makes with the vertical is shown as a function of time. What is the angular frequency of the pendulum? Answer: 2. [1pt] What is the amplitude of the pendulum's motion, in meters? theta (degrees) NOTOT 0 1 2 4 5 3 t (s)
The angle that a swinging simple pendulum makes with a vertical obeys the equation where the...
The angle that a swinging simple pendulum makes with a vertical
obeys the equation
where the length of the pendulum is 1.207m.
a. what is the vertical distance (in cm) between the pendulum
bob's highest and lowest positions?
b. what is the pendulums max angular speed and max angular
accleration?
c. what is the pendulum bob's speed (in m/s) at it's lowest
position?
A disk with an elevated hinged arm is rotating about the vertical z-axis. The arm has a sphere that slides along it. What is the magnitude of the acceleration of the sphere at the given time?
The disk A rotates about the vertical z-axis with a constant speed omega = dot theta = pi / 3 rad/s. Simultaneously, the hinged arm OB is elevated at the constant rate dot phi = 2pi / 3 rad/s. At time t = 0 both theta = 0 and phi = 0 The angle theta is measured from the fixed reference x-axis. The small sphere P slides out along the rod according to R = 50 + 200t2 where R...
A simple pendulum comprised of a bob of mass m = 162 g and a lightweight...
A simple pendulum comprised of a bob of mass m = 162 g and a lightweight string of length 71.0 cm is released from rest from an initial angle of 24.0° from the vertical. (a) Using the approach of simple harmonic motion, what is the maximum speed of the pendulum bob? m/s (b) Using the approach of simple harmonic motion, what is the maximum angular acceleration of the bob? rad/s2
A simple pendulum has a mass of 0.650 kg and a length of 7.00 m. It is displaced through an angle...
A simple pendulum has a mass of 0.650 kg and a length of 7.00 m. It is displaced through an angle of 9.0° and then released. Using the analysis model of a particle in simple harmonic motion, calculate the following. (Give your answer to the thousandths place.) (a) What is the maximum speed of the bob? WebAssign will check your answer for the correct number of significant figures. m/s (b) What is the maximum angular acceleration of the bob? WebAssign...
A simple pendulum is a mass on a string. Does the period with which the pendulum...
A simple pendulum is a mass on a string. Does the period with which the pendulum swings depend on mass, length, initial angle, or some combination of those? In this lab, you will vary each of these three parameters independently and measure the affect they have on period. Using graphical analysis techniques, you will determine the functional dependence of period on each of those quantities. Not knowing how any of these quantities—length l, mass m, and initial angle (theta)—affect the...
The angle of a pendulum is given by θ(t)=( 0.14 rad )cos( 4.0 t) , where...
The angle of a pendulum is given by θ(t)=( 0.14 rad )cos( 4.0 t) , where t is in seconds. A) Determine the amplitude. B)Determine the frequency. C)Determine the length of the string. D)Determine the angle at 1.0 s .
Suppose that a simple pendulum consists of a small 92 g bob at the end of a cord of negligible mass. If the angle e between the cord and the vertical is given by -(0.086 rad) cos[(7.4 rad/s) t + 4], what are (a) the pendulum's length and (b) its maximum kinetic energy? (a) Number (b) Number Units Units
P4. A clock keeps time using the periodic motion of a simple pendulum. The pendulum consists of a string of length L and a bob of mass m-5.00 kg attached to the end of the string. The pendulum has a period T-1.00 s. The initial angle (0) at 0 is equal to 0.175 rad. The bob is released from rest (i.e. -0) at -0. The angle between the string and the vertical is given by the equation: e-a cos (or...
The angle that a swinging simple pendulum makes with a vertical
obeys the equation
where the length of the pendulum is 1.207m.
a. what is the vertical distance (in cm) between the pendulum
bob's highest and lowest positions?
b. what is the pendulums max angular speed and max angular
accleration?
c. what is the pendulum bob's speed (in m/s) at it's lowest
position?
