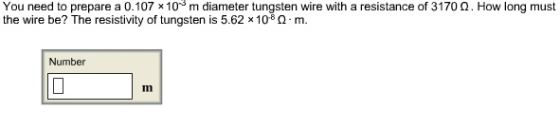

You need to prepare a 0.107 × 10-3 m diameter tungsten wire with a resistance of 3170 Ω. How long must the wire be? The resistivity of tungsten is 5.62 × 10-8 Ω·m.
Homework Answers
Add Answer to:
You need to prepare a 0.107 × 10-3 m diameter tungsten wire with
a resistance of...
You need to prepare a 0.133-mm-diameter tungsten wire with a resistance of 3.03 kΩ. How long...
You need to prepare a 0.133-mm-diameter tungsten wire with a resistance of 3.03 kΩ. How long must the wire be? The resistivity of tungsten is 5.62 × 10-8 Ω·m. I keep coming up with an extremely large number, however I don't think that's correct.
Problem 1: You need to prepare a 0.125×10^-3 m diameter tungsten wire with with resistance of...
Problem 1: You need to prepare a 0.125×10^-3 m diameter tungsten
wire with with resistance of 3590. How long must the wire be? The
resistivity of tungsten is 5.62×10^-5.
Problem 2: Suppose that a particle accelerator is used to move two
beams of particles in opposite directions. In a particular region,
electrons move to the right at 9350 m/s and protons move to the
left at 2583 m/s. The particles are evenly spaced with 0.0288 m
between electrons and 0.0237...
You need to create a 0.109 mm diameter material wire with a resistance of 3.55 Ω....
You need to create a 0.109 mm diameter material wire with a resistance of 3.55 Ω. Given the resistivity of the material is 6.03 x10-8 Ω·m, how long (in meters) must the wire be?
7/22/2018 12:00 AM A o/100 Gr ic Table estion 3 of 6 2 Sapiling Learning You...
7/22/2018 12:00 AM A o/100 Gr ic Table estion 3 of 6 2 Sapiling Learning You need to prepare a 0.159-mm-diameter tungsten wire with a resistance of 2.71 kQ. How long must the wire be? The resistivity of tungsten is 5.62 x 10 0 m. Number
What is the diameter of a 1.00-m length of tungsten wire whose resistance is 0.32Ω? (the...
What is the diameter of a 1.00-m length of tungsten wire whose resistance is 0.32Ω? (the resistivity of tungsten is 5.6 x 10^-8 Ωm
A wire of diameter 4.0 10-4 m and length 180 m has resistance of 45...
A wire of diameter 4.0 10-4 m and length 180 m has resistance of 45 Ω. What is the resistivity of the material? A. 1.36 10-6 Ω·m B. 3.14 10-6 Ω·m C. 7.98 10-7 Ω·m D. 3.14 10-8 Ω·m E. 7.98 10-9 Ω·m
A 1.7 cm length of tungsten filament in a small lightbulb has a resistance of 0.045 Ω. Find its diameter. (The resistivi...
A 1.7 cm length of tungsten filament in a small lightbulb has a resistance of 0.045 Ω. Find its diameter. (The resistivity is 5.6×10−8 Ω·m). Answer in units of mm.
A 2.8 cm length of tungsten filament in a small lightbulb has a resistance of 0.071...
A 2.8 cm length of tungsten filament in a small lightbulb has a resistance of 0.071 Ω. Find its diameter. (The resistivity is 5.6×10−8 Ω·m). Answer in units of mm.
Calculate the diameter of a 1.95 cm long tungsten filament in a lightbulb if its resistance...
Calculate the diameter of a 1.95 cm long tungsten filament in a lightbulb if its resistance is 0.779 Ω. (The resistivity of tungsten is 5.60×10-8 Ωm.)
Calculate the diameter of a 1.73 cm long tungsten filament in a lightbulb if its resistance...
Calculate the diameter of a 1.73 cm long tungsten filament in a lightbulb if its resistance is 0.251 Ω. (The resistivity of tungsten is 5.60×10-8 Ωm.)
Problem 1: You need to prepare a 0.125×10^-3 m diameter tungsten
wire with with resistance of 3590. How long must the wire be? The
resistivity of tungsten is 5.62×10^-5.
Problem 2: Suppose that a particle accelerator is used to move two
beams of particles in opposite directions. In a particular region,
electrons move to the right at 9350 m/s and protons move to the
left at 2583 m/s. The particles are evenly spaced with 0.0288 m
between electrons and 0.0237...
7/22/2018 12:00 AM A o/100 Gr ic Table estion 3 of 6 2 Sapiling Learning You need to prepare a 0.159-mm-diameter tungsten wire with a resistance of 2.71 kQ. How long must the wire be? The resistivity of tungsten is 5.62 x 10 0 m. Number
