You need to prepare a 0.133-mm-diameter tungsten wire with a resistance of 3.03 kΩ. How long...

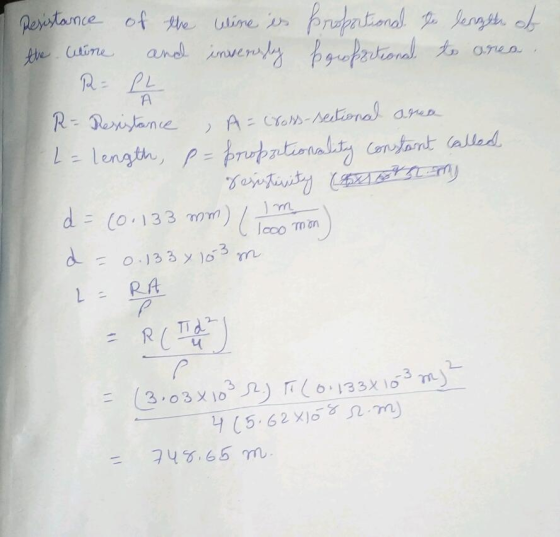

You need to prepare a 0.133-mm-diameter tungsten wire with a resistance of 3.03 kΩ. How long must the wire be? The resistivity of tungsten is 5.62 × 10-8 Ω·m.
I keep coming up with an extremely large number, however I don't think that's correct.
