Answers are provided. Please show work!
Homework Answers
Add Answer to:
Answers are provided. Please show work!

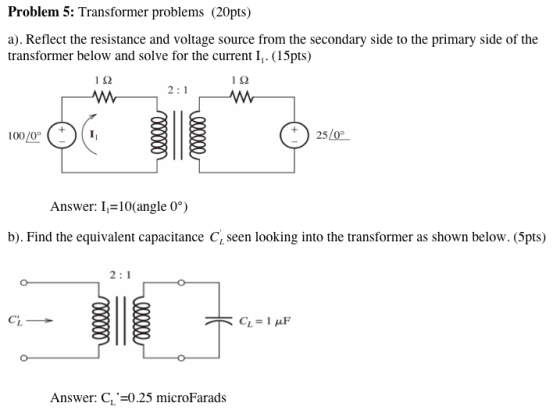

Problem 5: Transformer problems (20pts) a). Reflect the resistance and...
