The circuit below shows 11 identical capacitors (all having capacitance C = 70 nF) and one...

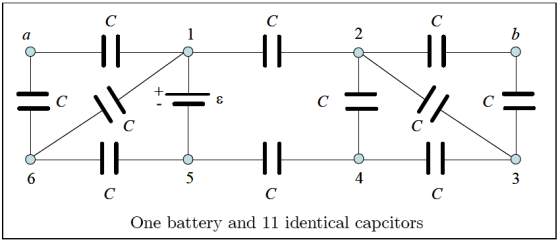

The circuit below shows 11 identical capacitors (all having
capacitance C = 70 nF) and one battery with emf
= 150 Volts.

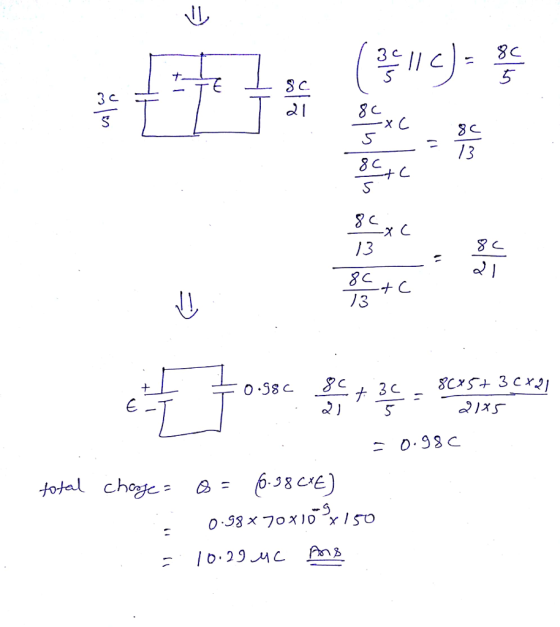

Compute the total charge that gets stored on all 11 capacitors. Note that this is not asking for the charge that gets stored on each capacitor.

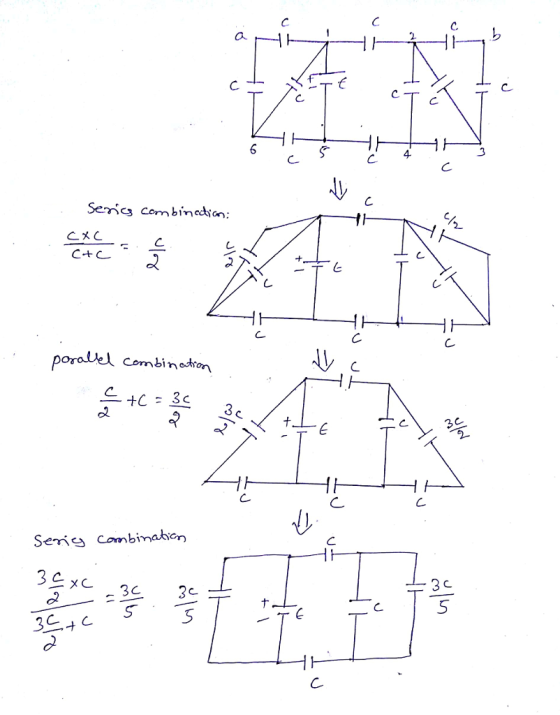

Homework Answers
Add Answer to:
The circuit below shows 11 identical capacitors (all having
capacitance C = 70 nF) and one...
The figure shows a circuit with an ideal battery and set of capacitors. The battery has...
The figure shows a circuit with an ideal battery and set of
capacitors. The battery has an emf
=12 V. The capacitors have capacitances C1 = C2 = C3 = C4 = 6
nF.
(a) What is the equivalent capacitance of the entire network of
capacitors?
(b) What is the electrical energy stored in the capacitor with
capacitance C2?
We were unable to transcribe this imageProblem 6 C. The figure shows a circuit with an ideal battery and set of...
Determine the equivalent capacitance for the capacitors shown in the circuit below (5 pts.) 104 nF...
Determine the equivalent capacitance for the capacitors shown in the circuit below (5 pts.) 104 nF 12 nF 43V Find the voltage across the 104 nF capacitor (AVi) and the 12 nP capacitor (AVa) (5 pts.) Find the charge on the 104 nF capacitor (Q1) and the 12 nP capacitor (Q). (5 pts.) Pind the total energy stored on both capacitors. (5 pts.)
In the circuit diagram below, C1 = 12 nF, C2 = 11 nF, Cz = 14...
In the circuit diagram below, C1 = 12 nF, C2 = 11 nF, Cz = 14 nF, C4 = 22 nF, and the voltage of the battery is AV = 17 V. Find the equivalent capacitance of the circuit, the total charge stored in the circuit, the charge stored on each capacitor, and the voltage across each capacitor. C Hoy vtvº Ceq = 5.74* nF QTotal = 0.612 * nC *nC *nC 1*nC * nC AV1 = DV WN -...
6. Three capacitors are connected in the circuit shown below. Given the information in the diagram,...
6. Three capacitors are connected in the circuit shown below. Given the information in the diagram, solve for the total capacitance of the circuit (C), the total charged stored in the circuit (O.L and the voltage on each capacitor (V1 V2 V3) V. 10 volts c - 2 nF C-10 nF Q,- — V=_ [- IN ] ] c = 5 nF
5. A parallel combination of two identical 2.0 uF parallel plate capacitors is connected to a...
5. A parallel combination of two identical 2.0 uF parallel plate capacitors is connected to a 100-V battery. The battery is then removed and the separation between the plates of one of the capacitors is doubled. Find the charge on each capacitor 6. For the circuit shown below, Find: (a) The equivalent capacitance (b) The charge on each capacitor (c) The voltage across each capacitor (d) The total energy stored 0.3 F 10.0V 1.0 uF 0.25 uf
For two identical capacitors of capacitance in a circuit containing a battery of voltage , which...
For two identical capacitors of capacitance in a circuit containing a battery of voltage , which configuration of the capacitors stores the most charge? They are all the same. Parallel wiring of the two capacitors. Using only one of the capacitors. Series wiring of the two capacitors.
The circuit in the figure below shows four capacitors connected to a battery. The switch S...
The circuit in the figure below shows four capacitors connected to a battery. The switch S is initially open, and all capacitors have reached their final charge. The capacitances are ci-6.10 F, C2. 11.00,F, C3.8.20,f, and ca. 3.90pE 00V (a) Find the potential difference across each capacitor and the charge stored in each HC (b) The switch is now closed. What is the new final potential difference across each capacitor and the new charge stored in each? HC IC Q4-...
Question 5 1 pts Two identical capacitors (each of capacitance C) in series are connected to...
Question 5 1 pts Two identical capacitors (each of capacitance C) in series are connected to the battery. The third capacitor of capacitance 2C at some moment is connected in parallel to the first two. Adding this third capacitor will keep the charge on first two the same will increase charge on first two capacitors somehow change the charge on the first two capacitors, but impossible to predict how. will decrase charge on first two capacitors
Fig. 1 shows a circuit of four capacitors connected to a battery with a potential difference...
Fig. 1 shows a circuit of four capacitors connected to a
battery with a potential difference ?_0. Capacitor 4 is filled with
a dielectric with 0 dielectric constant ? = 4. The capacitance
value of the capacitors is equal ?1 =?2 = ?3 = ?. The capacitance
of capacitor 4 is also equal to ? / 2 when in the middle of
their plates there is no dielectric. a) Calculate the free
charge stored in the capacitor 4. Its
answer...
Consider the circuit diagram consisting of capacitors and a battery picture on the board. Find the...
Consider the circuit diagram consisting of capacitors and a battery picture on the board. Find the equivalent capacitance, the charge on each capacitor and the voltage across each capacitor. Also find the total energy stored by the capacitor.
The figure shows a circuit with an ideal battery and set of
capacitors. The battery has an emf
=12 V. The capacitors have capacitances C1 = C2 = C3 = C4 = 6
nF.
(a) What is the equivalent capacitance of the entire network of
capacitors?
(b) What is the electrical energy stored in the capacitor with
capacitance C2?
We were unable to transcribe this imageProblem 6 C. The figure shows a circuit with an ideal battery and set of...
Determine the equivalent capacitance for the capacitors shown in the circuit below (5 pts.) 104 nF 12 nF 43V Find the voltage across the 104 nF capacitor (AVi) and the 12 nP capacitor (AVa) (5 pts.) Find the charge on the 104 nF capacitor (Q1) and the 12 nP capacitor (Q). (5 pts.) Pind the total energy stored on both capacitors. (5 pts.)
In the circuit diagram below, C1 = 12 nF, C2 = 11 nF, Cz = 14 nF, C4 = 22 nF, and the voltage of the battery is AV = 17 V. Find the equivalent capacitance of the circuit, the total charge stored in the circuit, the charge stored on each capacitor, and the voltage across each capacitor. C Hoy vtvº Ceq = 5.74* nF QTotal = 0.612 * nC *nC *nC 1*nC * nC AV1 = DV WN -...
6. Three capacitors are connected in the circuit shown below. Given the information in the diagram, solve for the total capacitance of the circuit (C), the total charged stored in the circuit (O.L and the voltage on each capacitor (V1 V2 V3) V. 10 volts c - 2 nF C-10 nF Q,- — V=_ [- IN ] ] c = 5 nF
5. A parallel combination of two identical 2.0 uF parallel plate capacitors is connected to a 100-V battery. The battery is then removed and the separation between the plates of one of the capacitors is doubled. Find the charge on each capacitor 6. For the circuit shown below, Find: (a) The equivalent capacitance (b) The charge on each capacitor (c) The voltage across each capacitor (d) The total energy stored 0.3 F 10.0V 1.0 uF 0.25 uf
The circuit in the figure below shows four capacitors connected to a battery. The switch S is initially open, and all capacitors have reached their final charge. The capacitances are ci-6.10 F, C2. 11.00,F, C3.8.20,f, and ca. 3.90pE 00V (a) Find the potential difference across each capacitor and the charge stored in each HC (b) The switch is now closed. What is the new final potential difference across each capacitor and the new charge stored in each? HC IC Q4-...
Question 5 1 pts Two identical capacitors (each of capacitance C) in series are connected to the battery. The third capacitor of capacitance 2C at some moment is connected in parallel to the first two. Adding this third capacitor will keep the charge on first two the same will increase charge on first two capacitors somehow change the charge on the first two capacitors, but impossible to predict how. will decrase charge on first two capacitors
Fig. 1 shows a circuit of four capacitors connected to a
battery with a potential difference ?_0. Capacitor 4 is filled with
a dielectric with 0 dielectric constant ? = 4. The capacitance
value of the capacitors is equal ?1 =?2 = ?3 = ?. The capacitance
of capacitor 4 is also equal to ? / 2 when in the middle of
their plates there is no dielectric. a) Calculate the free
charge stored in the capacitor 4. Its
answer...
Consider the circuit diagram consisting of capacitors and a battery picture on the board. Find the equivalent capacitance, the charge on each capacitor and the voltage across each capacitor. Also find the total energy stored by the capacitor.
