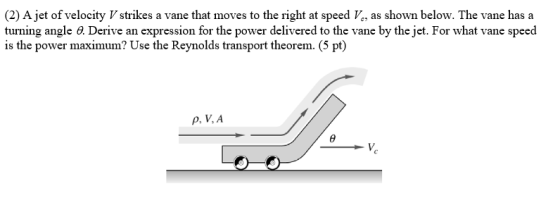

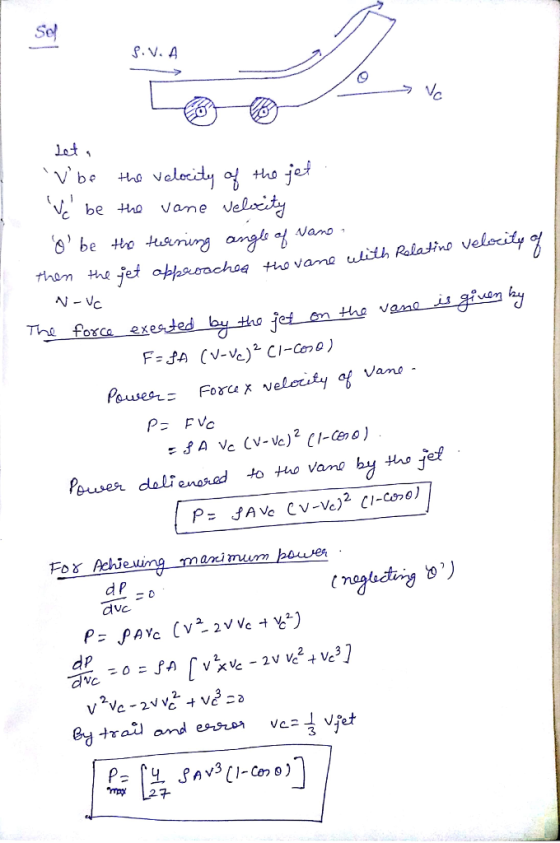

(2) A jet of velocity Vstrikes a vane that moves to the right at speed V,...
a 50-mm-diameter jet of water impacts a vane at a velocity of 20 m/s as shown...
a 50-mm-diameter jet of water impacts a vane at a
velocity of 20 m/s as shown in Figure 4.78. The vane has a mass of
90 kg, and it deflects the jet through a 55° angle. The vane is
constrained to move in the direction of the incoming jet, and there
is no force opposing the motion of the vane. Determine the
acceleration of the vane when it was first released. Assume water
at 20°C
Mecánica de fluidos Problemas A...
Question 2 2. In the figure below, the vane turns the water jet completely around. Find the maximum jet velocity Vo for a force Fo. (10 pts) 2. In the figure below, the vane turns the water jet...
Question 2
2. In the figure below, the vane turns the water jet completely around. Find the maximum jet velocity Vo for a force Fo. (10 pts)
2. In the figure below, the vane turns the water jet completely around. Find the maximum jet velocity Vo for a force Fo. (10 pts)
Force from a Jet of Water A jet of fluid striking a vane exerts a force on the vane it is equal a...
Force from a Jet of Water A jet of fluid striking a vane exerts a force on the vane it is equal and opposite to the vane. It is the equal and opposite force of the fluid momentum change that accompanies such a flow. For different weights, the water flow rate is adjusted so the platform stays at the zero reading. These values are given below Q, ftA3/s 0045 0069 0011 0107 0116 0041 0076 0113 0146 Weight Angle, deg...
A vane on wheels moves with constant velocity 0.58 m/s when a stream of water having...
A vane on wheels moves with constant velocity 0.58 m/s when a stream of water having .( a nozzle exit velocity 1.83 m/s and 5 cm diameter is turned at 8 = 45° by the vane as indicated in the figure below. Neglect friction so that the speed of the water jet relative to the vane is unchanged result of the Bernoulli equation if elevation of the water jet is .neglected (Determine the reaction force (N) in the x-direction (RX...
A blob of putty of mass m moves with a speed 2v to the right, while...
A blob of putty of mass m moves with a speed 2v to the right, while a second blob of putty of the same mass m moves with a speed v to the left, as shown. Their paths are separated by a distance b. They both reach a thin rigid rod of length b and mass 2m at the same instant t-0, and stick to opposite ends of the rod. (Use standard definitions of a right- handed coordinate system with...
1 of 2 MAE 371 Spring 2019 Project For the slider crank configuration, shown below, derive the expression for the velocity and acceleration of the piston, A (taken positive to the right), as a f...
1 of 2 MAE 371 Spring 2019 Project For the slider crank configuration, shown below, derive the expression for the velocity and acceleration of the piston, A (taken positive to the right), as a function of θ (0-7). Plot acceleration of A as a function of θ and find the value of θ for which the acceleration is zero. For the analysis assign a constant value for Additionally, plot the magnitude of the reaction forces RA and RB. Find the...
S6. A submarine of diameter H, velocity v, moves through water of density ρ and If Df is the drag...
S6. A submarine of diameter H, velocity v, moves through water of density ρ and If Df is the drag force on the submarine, then it is known dynamic viscosity that a law of the following form applies μ. for some function G, and where DF/(pv2H2), WH/μ are dimensionless quantities You are not required to derive this formula. Engineers wish to determine the drag on a full size prototype when it is run at v-10 km hr1. To this end,...
A tank, which is open to the atmosphere, is filled with water to a level h...
A tank, which is open to the atmosphere, is filled with water to a level h and allowed to drain through an orifice at the bottom, as shown in the figure below. The cross-sectional area of the tank is At and the cross-sectional area of the orifice is Ao. Assume that the cross-sectional area of the tank is much greater than the cross-sectional area of the orifice (Ar>>Ao) and that the exit losses are negligible. 4) Use Reynolds Transport Theorem...
pls write down clearly thanks QUESTION 2 From the Reynolds Transport Theorem equation, derive the momentum equation...
pls
write down clearly thanks
QUESTION 2 From the Reynolds Transport Theorem equation, derive the momentum equation for steady, (a) incompressible flow. 3 marks) The nozzle shown in Figure Q2 is in horizontal plane has an inlet area of 0.002 m2 and an (b) outlet area of 0.0005 m2. The inlet gage pressure is 300 kPa and the outlet gage pressure is 200 kPa. Calculate the horizontal and vertical forces on the nozzle in term of flow rate. [6 marks...
Objective To determine the force generated by a jet of water striking on a surface Description...
Objective To determine the force generated by a jet of water striking on a surface Description of apparatus The supply is led to a vertical pipe terminating in a tapered nozzle. This produces a jet of water which impinges on the vane in the form of a Flat Plate, Hemispherical Cup, Conical Plate or 30° Angled Plate. The nozzle and vane are contained within a transparent cylinder; at the base of the cylinder there is an outlet by which the...
a 50-mm-diameter jet of water impacts a vane at a
velocity of 20 m/s as shown in Figure 4.78. The vane has a mass of
90 kg, and it deflects the jet through a 55° angle. The vane is
constrained to move in the direction of the incoming jet, and there
is no force opposing the motion of the vane. Determine the
acceleration of the vane when it was first released. Assume water
at 20°C
Mecánica de fluidos Problemas A...
Question 2
2. In the figure below, the vane turns the water jet completely around. Find the maximum jet velocity Vo for a force Fo. (10 pts)
2. In the figure below, the vane turns the water jet completely around. Find the maximum jet velocity Vo for a force Fo. (10 pts)
Force from a Jet of Water A jet of fluid striking a vane exerts a force on the vane it is equal and opposite to the vane. It is the equal and opposite force of the fluid momentum change that accompanies such a flow. For different weights, the water flow rate is adjusted so the platform stays at the zero reading. These values are given below Q, ftA3/s 0045 0069 0011 0107 0116 0041 0076 0113 0146 Weight Angle, deg...
A vane on wheels moves with constant velocity 0.58 m/s when a stream of water having .( a nozzle exit velocity 1.83 m/s and 5 cm diameter is turned at 8 = 45° by the vane as indicated in the figure below. Neglect friction so that the speed of the water jet relative to the vane is unchanged result of the Bernoulli equation if elevation of the water jet is .neglected (Determine the reaction force (N) in the x-direction (RX...
A blob of putty of mass m moves with a speed 2v to the right, while a second blob of putty of the same mass m moves with a speed v to the left, as shown. Their paths are separated by a distance b. They both reach a thin rigid rod of length b and mass 2m at the same instant t-0, and stick to opposite ends of the rod. (Use standard definitions of a right- handed coordinate system with...
1 of 2 MAE 371 Spring 2019 Project For the slider crank configuration, shown below, derive the expression for the velocity and acceleration of the piston, A (taken positive to the right), as a function of θ (0-7). Plot acceleration of A as a function of θ and find the value of θ for which the acceleration is zero. For the analysis assign a constant value for Additionally, plot the magnitude of the reaction forces RA and RB. Find the...
S6. A submarine of diameter H, velocity v, moves through water of density ρ and If Df is the drag force on the submarine, then it is known dynamic viscosity that a law of the following form applies μ. for some function G, and where DF/(pv2H2), WH/μ are dimensionless quantities You are not required to derive this formula. Engineers wish to determine the drag on a full size prototype when it is run at v-10 km hr1. To this end,...
A tank, which is open to the atmosphere, is filled with water to a level h and allowed to drain through an orifice at the bottom, as shown in the figure below. The cross-sectional area of the tank is At and the cross-sectional area of the orifice is Ao. Assume that the cross-sectional area of the tank is much greater than the cross-sectional area of the orifice (Ar>>Ao) and that the exit losses are negligible. 4) Use Reynolds Transport Theorem...
pls
write down clearly thanks
QUESTION 2 From the Reynolds Transport Theorem equation, derive the momentum equation for steady, (a) incompressible flow. 3 marks) The nozzle shown in Figure Q2 is in horizontal plane has an inlet area of 0.002 m2 and an (b) outlet area of 0.0005 m2. The inlet gage pressure is 300 kPa and the outlet gage pressure is 200 kPa. Calculate the horizontal and vertical forces on the nozzle in term of flow rate. [6 marks...
Objective To determine the force generated by a jet of water striking on a surface Description of apparatus The supply is led to a vertical pipe terminating in a tapered nozzle. This produces a jet of water which impinges on the vane in the form of a Flat Plate, Hemispherical Cup, Conical Plate or 30° Angled Plate. The nozzle and vane are contained within a transparent cylinder; at the base of the cylinder there is an outlet by which the...
