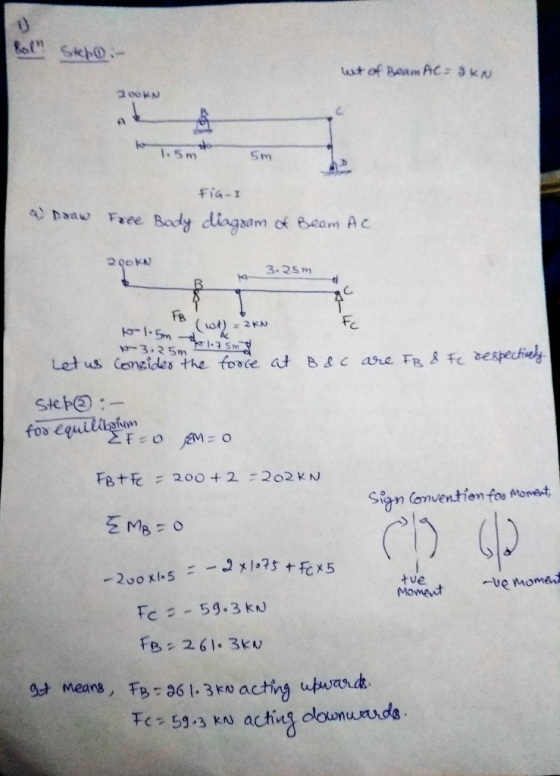

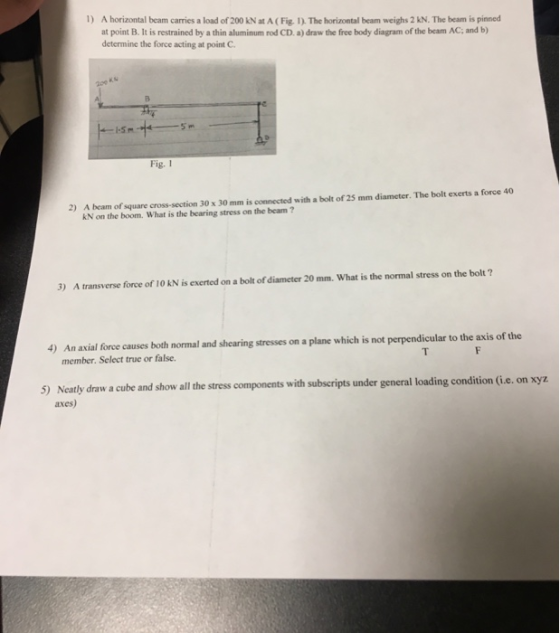

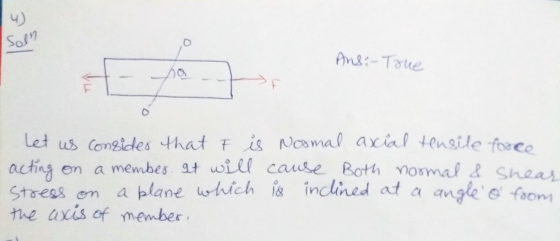

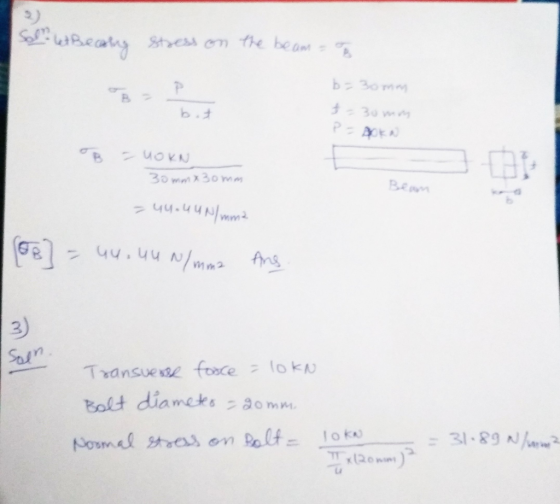

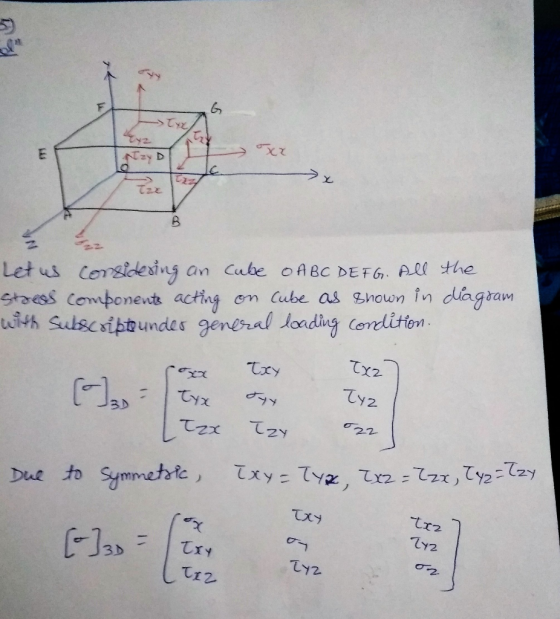

1) A horizontal beam carries a load of 200 N A F 1. The horizontal beam...
QI A cantilever beam carries a horizontal point load of 100 kN at its end, as...
QI A cantilever beam carries a horizontal point load of 100 kN at its end, as shown in Figure Q1 (a). In this case, the self weight of the beam must be included. The beam is made from a square box section with a width of b and a depth of b (refer to Figure Q1 (b)). The density of the beam is 20 kN/m and the maximum allowable longitudinal stress of the beam is 200 N/mm². Figure QI (a)...
QI A cantilever steel beam of length L 7.5 m carries both a uniformly distributed load...
QI A cantilever steel beam of length L 7.5 m carries both a uniformly distributed load w of 20 kN/m throughout its length and a point load P of 10 kN at its free end, as shown in Figure QI (a). The beam is made from a rectangular hollow box section with a width of 300 mm and a depth of 450 mm (refer to Figure Q1 (b)). The wall thickness of the box section is constant throughout which is...
The beam shown below is subjected to a uniform load of 2 kips/ft, two concentrated transverse...
The beam shown below is subjected to a uniform load of 2 kips/ft, two concentrated transverse loads of 12 kips, and 6 kips, and a tensile axial force of 10 kips. a) Draw the shear and moment diagrams. (8) b) Find the stresses at B. (10) c) Find the maximum shearing stress in the beam. (10) 12 kips 2 k/ft 6 kips 10 kips 4 41 8' A B D E 12" 2" 2 14" B 24 16"
A simply supported prismatic beam is loaded with a load applied at an angle at point...
A simply supported prismatic beam is loaded with a load applied at an angle at point F as shown below The beams connecting points CE and EF can be considered rigid (l-very large). The magnitude of the applied load P is 75kN. NOTE: You must use your student number to calculate the magnitude of the angle, α, and the length EF using the expressions below. The angle, α, is given in degrees and the unit for length EF is m...
Problem 1: A shaft, with a diameter of 43 mm, is shown below. On the right-hand side at location ...
Problem 1: A shaft, with a diameter of 43 mm, is shown below. On the right-hand side at location D a wheel has a force F of 4824N applied. The diameter of this wheel is 150 mm. The torque produced by F is transmitted through the entire shaft to location A where the torque is reacted. There are no other constraints at location A. Bearings, are located at B and C, and provide radial constraint. The bearing at B also...
Q1 A cantilever beam carries a horizontal point load P of 100 kN at its end,...
Q1 A cantilever beam carries a horizontal point load P of 100 kN at its end, as shown in Figure Q1 (a). In this case, the self weight of the beam must be included. The beam is made from a square box section with a width of b and a depth of b (refer to Figure Q1 (b)). The density of the beam is 20 kN/m² and the maximum allowable longitudinal stress of the beam is 200 N/mm2.K b P=...
Q1 A cantilever steel beam of length L = 7.5 m carries both a uniformly distributed...
Q1 A cantilever steel beam of length L = 7.5 m carries both a uniformly distributed load w of 20 kN/m throughout its length and a point load P of 10 kN at its free end, as shown in Figure Q1 (a). The beam is made from a rectangular hollow box section with a width of 300 mm and a depth of 450 mm (refer to Figure Q1 (b)). The wall thickness of the box section is constant throughout which...
An alumninum (E = 68.9 GPa) cylindrical tube has an outer diameter of 200 mm, a wall thickness of...
An alumninum (E = 68.9 GPa) cylindrical tube has an outer diameter of 200 mm, a wall thickness of 7.5 mm, and an internal pressure of 5 MPa. It is subjected to a force with the axial and transverse components shown acting at the centroid of the free end of the tube 1. Verify that the tube meets the thin-wall criterion 2. Draw the left half of the tube, and show the equivalent force-couple system acting at the centroid of...
4.A thin-walled cylindrical column carries a weightless arch and is loaded as shown in Figure 4. The column has an internal diameter of 250 mm with a thickness of 2 mm Given: E-200 GPa and 0.3 The an...
4.A thin-walled cylindrical column carries a weightless arch and is loaded as shown in Figure 4. The column has an internal diameter of 250 mm with a thickness of 2 mm Given: E-200 GPa and 0.3 The answer to each part of the question is to be used for subsequent parts (a)Determine the stresses on the outer surface of the cylinder at points A and B due to (8 marks) (b) Determine the minimum internal pressure p required if the...
4. The vertical post shown has a diameter of 64 mm. A horizontal force of 10...
4. The vertical post shown has a diameter of 64 mm. A horizontal force of 10 kN and a torque of 1.4 kNm are applied at the top of the post. Determine the principal stresses and maximum shearing stress at points H and K which are located on a plane 240mm down from the top of the post. 1.4 kNm 10 KN H K 240 mm
QI A cantilever beam carries a horizontal point load of 100 kN at its end, as shown in Figure Q1 (a). In this case, the self weight of the beam must be included. The beam is made from a square box section with a width of b and a depth of b (refer to Figure Q1 (b)). The density of the beam is 20 kN/m and the maximum allowable longitudinal stress of the beam is 200 N/mm². Figure QI (a)...
QI A cantilever steel beam of length L 7.5 m carries both a uniformly distributed load w of 20 kN/m throughout its length and a point load P of 10 kN at its free end, as shown in Figure QI (a). The beam is made from a rectangular hollow box section with a width of 300 mm and a depth of 450 mm (refer to Figure Q1 (b)). The wall thickness of the box section is constant throughout which is...
The beam shown below is subjected to a uniform load of 2 kips/ft, two concentrated transverse loads of 12 kips, and 6 kips, and a tensile axial force of 10 kips. a) Draw the shear and moment diagrams. (8) b) Find the stresses at B. (10) c) Find the maximum shearing stress in the beam. (10) 12 kips 2 k/ft 6 kips 10 kips 4 41 8' A B D E 12" 2" 2 14" B 24 16"
A simply supported prismatic beam is loaded with a load applied at an angle at point F as shown below The beams connecting points CE and EF can be considered rigid (l-very large). The magnitude of the applied load P is 75kN. NOTE: You must use your student number to calculate the magnitude of the angle, α, and the length EF using the expressions below. The angle, α, is given in degrees and the unit for length EF is m...
Problem 1: A shaft, with a diameter of 43 mm, is shown below. On the right-hand side at location D a wheel has a force F of 4824N applied. The diameter of this wheel is 150 mm. The torque produced by F is transmitted through the entire shaft to location A where the torque is reacted. There are no other constraints at location A. Bearings, are located at B and C, and provide radial constraint. The bearing at B also...
Q1 A cantilever beam carries a horizontal point load P of 100 kN at its end, as shown in Figure Q1 (a). In this case, the self weight of the beam must be included. The beam is made from a square box section with a width of b and a depth of b (refer to Figure Q1 (b)). The density of the beam is 20 kN/m² and the maximum allowable longitudinal stress of the beam is 200 N/mm2.K b P=...
Q1 A cantilever steel beam of length L = 7.5 m carries both a uniformly distributed load w of 20 kN/m throughout its length and a point load P of 10 kN at its free end, as shown in Figure Q1 (a). The beam is made from a rectangular hollow box section with a width of 300 mm and a depth of 450 mm (refer to Figure Q1 (b)). The wall thickness of the box section is constant throughout which...
An alumninum (E = 68.9 GPa) cylindrical tube has an outer diameter of 200 mm, a wall thickness of 7.5 mm, and an internal pressure of 5 MPa. It is subjected to a force with the axial and transverse components shown acting at the centroid of the free end of the tube 1. Verify that the tube meets the thin-wall criterion 2. Draw the left half of the tube, and show the equivalent force-couple system acting at the centroid of...
4.A thin-walled cylindrical column carries a weightless arch and is loaded as shown in Figure 4. The column has an internal diameter of 250 mm with a thickness of 2 mm Given: E-200 GPa and 0.3 The answer to each part of the question is to be used for subsequent parts (a)Determine the stresses on the outer surface of the cylinder at points A and B due to (8 marks) (b) Determine the minimum internal pressure p required if the...
4. The vertical post shown has a diameter of 64 mm. A horizontal force of 10 kN and a torque of 1.4 kNm are applied at the top of the post. Determine the principal stresses and maximum shearing stress at points H and K which are located on a plane 240mm down from the top of the post. 1.4 kNm 10 KN H K 240 mm
