Question

for cse 205, please help

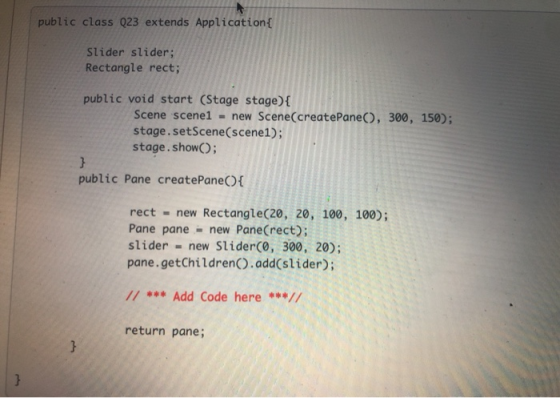

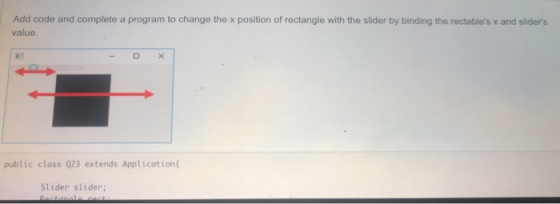

Add code and complete a program to change the x position of rectangle with the slider by binding the rectable's x and slider's value. X public class Q23 extends Application{ Slider slider; Recomale and

Answer 1

Q23.java

package Test.Q36;
//importing required file and classes
import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.control.Slider;
import javafx.scene.layout.Pane;
import javafx.scene.shape.Rectangle;
import javafx.stage.Stage;



public class Q23 extends Application {

//    slider object
    Slider slider;
//    rect object
    Rectangle rect;
    public static void main(String[] args) {
        launch(args);
    }

    @Override
    public void start(Stage stage) {

        // creating new scene object with createPane , width and height
        Scene scene = new Scene(createPane(),430,150);
//        setting scene to the stage
        stage.setScene(scene);
//        showing the stage
        stage.show();
    }

    public Pane createPane()
    {
//        creating new rect with x, y, width , height
        rect = new Rectangle(20,20,100,100);
//        creating new pane object
        Pane pane = new Pane(rect);

//        creating new slider with min, max value
        slider = new Slider(0,300,20);
//        adding slider to the pane
        pane.getChildren().add(slider);

//        listening to change property of slider then applying new value to rect.setX
        slider.valueProperty().addListener((observable, oldValue, newValue) -> {

//            setting rect.setX
            rect.setX(Double.parseDouble(Double.toString(newValue.intValue())));

        });
//        return pane
        return pane;
    }

}

Output

Х

Code Output

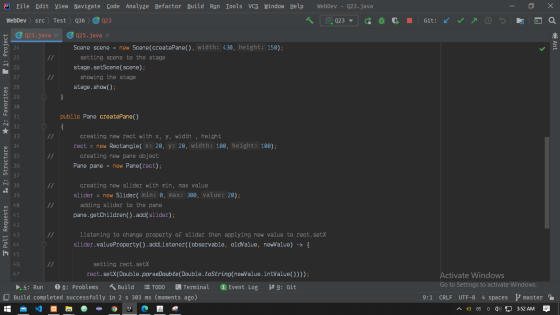

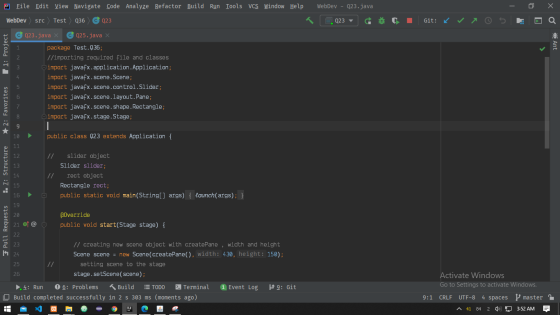

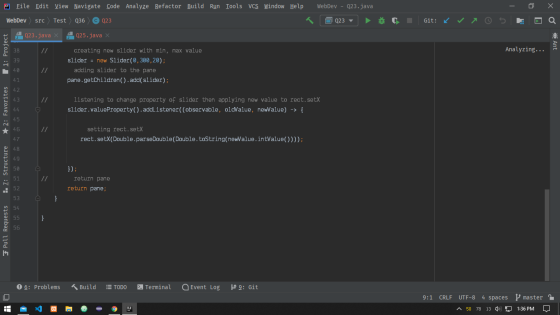

file Edit View Navigate Code Analyze Refactor Build Run Tools VCS Window Help WebDev - Q23.java WebDev src Test Q36 C023 023 G Git: KⓇ C023.java X C025.java X Ant I 1: Project package Test.Q36; //importing required file and classes -import javafx.application. Application; import javafx.scene. Scene; import javafx.scene.control.Slider; import javafx.scene.layout.Pane; import javafx.scene. shape. Rectangle; import javafx.stage. Stage; | public class Q23 extends Application { g 12 Pull Requests .. 7: Structure *2: Favorites 13 14 // slider object Slider slider; rect object Rectangle rect; public static void main(String[] args) { launch(args); 15 16 19 20 @Override 21 of @ public void start(Stage stage) { 22 23 // creating new scene object with createPane , width and height 141 24 Scene scene = new Scene(createPane(), width: 430, height: 150); setting scene to the stage 26 stage.setScene( scene); 4: Run 0 6: Problems Build E TODO 2 Terminal 1 Event Log 2: Git O Build completed successfully in 2 s 303 ms (moments ago) 25 Activate Windows Go to Settings to activate Windows. 9:1 CRLF UTF-8 4 spaces P master IJ A 41 84 2 < 3:52 AM =

file Edit View Navigate Code Analyze Refactor Build Run Tools VCS Window Help WebDev - Q23.java WebDev src Test Q36 C023 023 G Git: KⓇ C023.java x C025.java X 2 Ant 24 I 1: Project 25 // 26 Scene scene = new Scene(createPane(), width: 430, height: 150); setting scene to the stage stage.setScene( scene); showing the stage stage.show(); 27 28 29 A } 30 31 32 33 // 34 public Pane createPane() { creating new rect with x, y, width , height rect = new Rectangle( x: 20, y: 20, width: 100, height: 100); creating new pane object Pane pane = new Pane(rect); 35 Pull Requests .. 7: Structure *2: Favorites 36 A%四wn BB%的距印%的红纪 8 坪 $ $ 37 38 // 39 creating new slider with min, max value slider = new Slider( min: 0, max: 300, value: 20); adding slider to the pane pane.getChildren().add( slider); // 42 43 44 // listening to change property of slider then applying new value to rect.setX slider.valueProperty().addListener((observable, oldValue, newValue) -> { 1145 46 // setting rect sett rect.setX(Double.parseDouble(Double.toString(newValue. intValue()))); 4: Run 06: Problems Build DE TODO Terminal 1 Event Log 2: Git O Build completed successfully in 2 s 303 ms (moments ago) Activate Windows Go to Settings to activate Windows. 9:1 CRLF UTF-8 4 spaces P master A 43 85 0 0 9 3:52 AM = IJ

file Edit View Navigate Code Analyze Refactor Build Run Tools VCS Window Help WebDev - Q23.java WebDev src Test 036 C 023 023 Git: K FQ23.java x 2 025.java X 2 Ant 38 Analyzing... I 1: Project 39 creating new slider with min, max value slider = new Slider(0, 300, 20); adding slider to the pane pane.getChildren() .add( slider); 40 41 42 43 * 2: Favorites listening to change property of slider then applying new value to rect.setx slider.valueProperty().addListener((observable, oldValue, newValue) -> { 44 45 46 setting rect.setX rect.setX(Double.par seDouble(Double.toString(newValue. intValue()))); 47 48 49 50 a 51 return pane 52 return pane; 53 } I Pull Requests - 7: Structure 54 } 55 56 0 6: Problems Build ETODO Σ Terminal Event Log +2: Git 9:1 CRLF UTF-8 4 spaces P master A 50 78 13 4 9 1:36 PM
