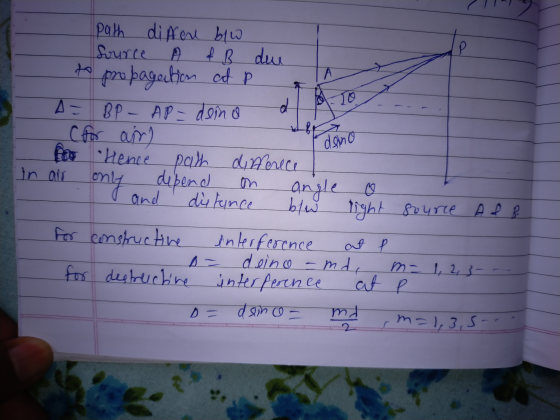

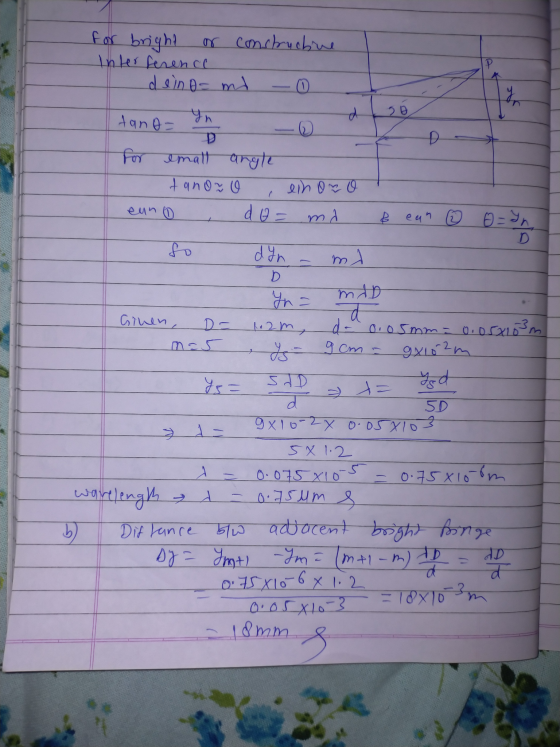

A screen is seperated from a double-slit source by 1.20 m. The distance between the two...
Homework Answers
Add Answer to:
A
screen is seperated from a double-slit source by 1.20 m. The
distance between the two...
77) In the two-slit experiment, the distance between the slits and the screen is 1.1 m...

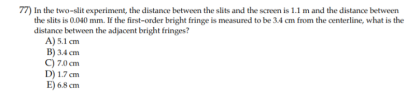

77) In the two-slit experiment, the distance between the slits and the screen is 1.1 m and the distance between the slits is 0.040 mm. If the first-order bright fringe is measured to be 3.4 cm from the centerline, what is the distance between the adjacent bright fringes? A) 5.1 cm B) 3.4 cm C) 7.0 cm D) 1.7 cm E) 6.8 cm
(25) A screen is separated from a double slit source by 1.2 m. The distance between...
(25) A screen is separated from a double slit source by 1.2 m. The distance between the two slits is 0.03 mm. The second order (m=2) bright fringe is measured to be 4.5 cm from the center line. (a) Determine the wavelength of the light. (b) What is the color of this light? (c) Calculate the energy carried by a photon of this light.
QUESTION Which of the following make the separation between fringes greater in the two slit interference...
QUESTION Which of the following make the separation between fringes greater in the two slit interference experiment? (Select all that apply □ wider slits Smaller separation of the two slits Larger separation of the two slits Narrower slits PRACTICE IT Use the worked example above to help you solve this problem. A screen is separated from a double-slit source by 1.28 m. The distance between the two slits is 0.0296 mm. The second-order bright fringe (m = 2) is measured...
In a two-slit experiment using laser light, the distance between the slits and the screen is...
In a two-slit experiment using laser light, the distance between the slits and the screen is 1.10 m, and the distance between the slits is 0.040 mm. If the second order (m=2) bright fringe is measured to be 4.20 cm from the centerline on the screen, what is the wavelength of light?
A screen is separated from a double-slit source by a distance L. When light of wavelength...
A screen is separated from a double-slit source by a distance L. When light of wavelength 563 nm is incident on the double slit, the separation distance between adjacent bright fringes on the screen is 0.0370 mm. When instead, 500 nm light is used, what is the separation distance (in mm) between adjacent bright fringes?
In a Young's double slit experiment a screen is placed 85.0 cm from two slits that...
In a Young's double slit experiment a screen is placed 85.0 cm from two slits that have a spacing of 0.300 mm. The slits are illuminated with coherent light with a wavelength of 540 nm. (a) What is the distance between the first and third-order dark fringes? (b) What is the distance between the first-order bright fringe and the second order dark fringe?
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 697 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.67 m and the distance between the two slits is 0.104 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 517 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.3 m and the distance between the two slits is 0.118 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...
1.) In a double-slit experiment, it is observed that the distance between adjacent maxima on a...
1.) In a double-slit experiment, it is observed that the distance between adjacent maxima on a remote screen is 1.0 cm. What happens to the distance between adjacent maxima when the slit separation is doubled? A.) It decreases to 0.5 cm. B.) It increases to 4.0 cm. C.) It increases to 2.0 cm. D.) It decreases to 0.25 cm. E.) It remains the same. 2.) In a two-slit experiment, monochromatic coherent light of wavelength 500 nm passes through a pair...
A Young's double slit experiment has the screen placed 2.6 m from the double slits where...
A Young's double slit experiment has the screen placed 2.6 m from the double slits where the spacing between the two slits is 0.03 mm. 16) The angle that locates the second-order bright fringe is 2.0degree. Find the wavelength of the light? 17) Find the distance y on the screen between the central bright fringe and the second-order bright fringe.
77) In the two-slit experiment, the distance between the slits and the screen is 1.1 m and the distance between the slits is 0.040 mm. If the first-order bright fringe is measured to be 3.4 cm from the centerline, what is the distance between the adjacent bright fringes? A) 5.1 cm B) 3.4 cm C) 7.0 cm D) 1.7 cm E) 6.8 cm
QUESTION Which of the following make the separation between fringes greater in the two slit interference experiment? (Select all that apply □ wider slits Smaller separation of the two slits Larger separation of the two slits Narrower slits PRACTICE IT Use the worked example above to help you solve this problem. A screen is separated from a double-slit source by 1.28 m. The distance between the two slits is 0.0296 mm. The second-order bright fringe (m = 2) is measured...
In a Young's double slit experiment a screen is placed 85.0 cm from two slits that have a spacing of 0.300 mm. The slits are illuminated with coherent light with a wavelength of 540 nm. (a) What is the distance between the first and third-order dark fringes? (b) What is the distance between the first-order bright fringe and the second order dark fringe?
A Young's double slit experiment has the screen placed 2.6 m from the double slits where the spacing between the two slits is 0.03 mm. 16) The angle that locates the second-order bright fringe is 2.0degree. Find the wavelength of the light? 17) Find the distance y on the screen between the central bright fringe and the second-order bright fringe.
