(1 point) For the equivalent resistances in the circuits below if R = 105 ΩΩ Req...

Question

Question

(1 point)

For the equivalent resistances in the circuits below if R = 105 ΩΩ

Req 50Ω 200 Ω 10Ω (b)Rea 100 Ω 10Ω 20 Ω (c)Rea 30Ω 50 Ω 16 Ω 2013 Paul Hummel

engineering Electrical-Engineering

Answer 1

Answer #1

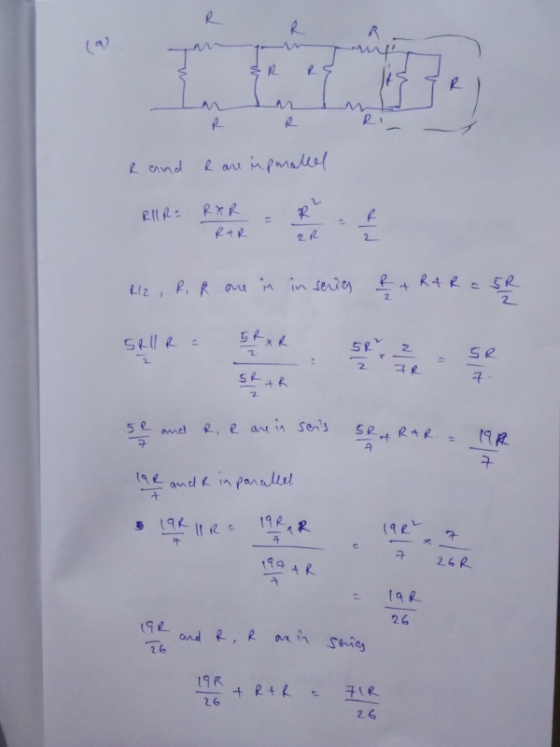

2. SR 구 斗 1AAR 26 26 2 6 2 6 2 6 키 L 26 9チ 2 6 키e 74 b) 100 200 10r loon ニ68.ej 8.es oval 118.85 n Ronin (maud (( 8、tr// R 118.85+ 10 61.6S 501

Answer 2

Similar Homework Help Questions

2. For the 3 circuits below, find the equivalent resistance between nodes a and b. Figure...

2. For the 3 circuits below, find the equivalent resistance between nodes a and b. Figure P3. 12Ω 15 | 240 120Ω 60Ω 20Ω 25Ω 7Ω 9B 10 Ω 18Ω 35 Ω 60Ω 30Ω 40Ω 5Ω 10Ω 20 Ω 14Ω 30Ω 3Ω 50 Ω 30Ω 12 Ω
2) Calculate the equivalent resistances as seen at the terminals A-B of the circuits below are:...

2) Calculate the equivalent resistances as seen at the terminals A-B of the circuits below are: 100 3100 3200 3300 200 Calculate the equivalent capacitance as seen at the terminals a-b of the circuits below are: 10 F A- = 10 pF + 20 uF = 30 pF + 20 F 30 pF
In the circuit below, v1 = -2 V and i1 = -4.5 A. Use mesh analysis...

In the circuit below, v1 = -2 V and i1 = -4.5 A. Use mesh analysis to find Vx and ix. ne crcat tatalsd 45U mesh 5i 30 Ω 16 Ω i1 20 Ω 10Ω 5Ω 2 Vx 40 Ω 50 Ω 25 Ω V. 10Ω 4 i 2013 Paul Hummel BY NC SA

In the circuit below. R1 = 58 Ω R2 = 200 Ω R3 = 220 Ω...

In the circuit below. R1 = 58 Ω R2 = 200 Ω R3 = 220 Ω R4 = 22 Ω. An ohmmeter is an instrument that gives a value for the resistance seen between two terminals. What is the correct reading if the instrument is attached to the network in the figure given at points: (a) AD (b) BD (c) CD? R2 R1 50Ω 100 Ω 75 Ω R4 R3 D 25 Ω 200 Ω 2013 Paul Hummel (a) RAD...
(1 point) For the circuit below, V,--(162434°) ?, C--j1 52 ?, and R-100 ?. Find V,...

(1 point) For the circuit below, V,--(162434°) ?, C--j1 52 ?, and R-100 ?. Find V, Vo 2013 Paul Hummel BY NC SA Vo
(20 points) Problem 1: For the following circuits. (a): Find the equivalent resistance Req for Fig....

(20 points) Problem 1: For the following circuits. (a): Find the equivalent resistance Req for Fig. 1.a when R1=592, R3=222, R2=1512, and R4=092. (b): Find the equivalent resistance Req for Fig. 1.b when R1=092, and R2-R3=222. a tu Reg 1 Rea 20th NA Fig 1

PART A Use the technique o simplifying his circat using equivalent resistances into smaller, simpler circuits....

PART A Use the technique o simplifying his circat using equivalent resistances into smaller, simpler circuits. Given the following circuit: R1 If Ri . 39 Ω, R2 12 Ω, R3 12 Ω, and Vs 9 Volts, determine the circuit equivalent resistance (REQ) and the circuit current (I). Also calculate the branch currents through R2 and R3, and the voltage drops across RI, R2, and R3. PART B Use the technique of simplifýying this circut using equivalent resistances into smaller, simpler...
(1 point) In the circuit below, i1 = -2 A, i2 = 8 A, and v1...

(1 point) In the circuit below, i1 = -2 A, i2 = 8 A, and v1 = -2 V. Use nodal analysis to find vx and iy in the circuit below i1 8Ω 15 Ω 36 Ω 2 iy y 14 Ω 20 Ω ν1 24 Ω 10 Ω i2 40 Ω 35 Ω 12 Ω 16 Ω 0.4Vx 2013 Paul Hummel CC BY NC SAΑ
(1 point) For the circuit below, V, (148 - 173°) V, C 192 2, and R...

(1 point) For the circuit below, V, (148 - 173°) V, C 192 2, and R 134 S2. Find Vo Vs Vo 10 k? 2013 Paul Hummel @OEO BY NC SA 0

(1 point) In the circuit below, V1 = 8.5 V and 11 = 450 mA. Use...

(1 point) In the circuit below, V1 = 8.5 V and 11 = 450 mA. Use mesh analysis to find V. 75 22 250 22 20 22 M AAA 100 22 2013 Paul Hummel BY NC SA
