(1 point) For the circuit below, V,--(162434°) ?, C--j1 52 ?, and R-100 ?. Find V,...

Question

Question

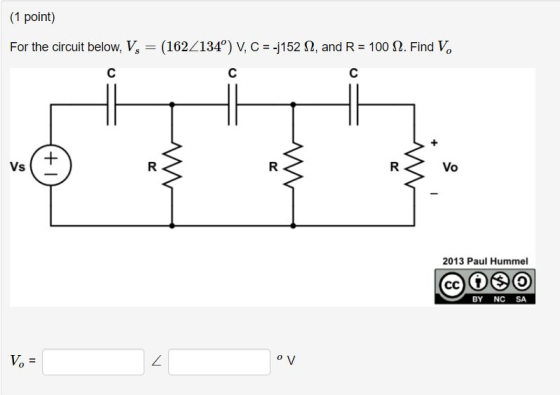

(1 point) For the circuit below, V,--(162434°) ?, C--j1 52 ?, and R-100 ?. Find V, Vo 2013 Paul Hummel BY NC SA Vo

engineering Electrical-Engineering

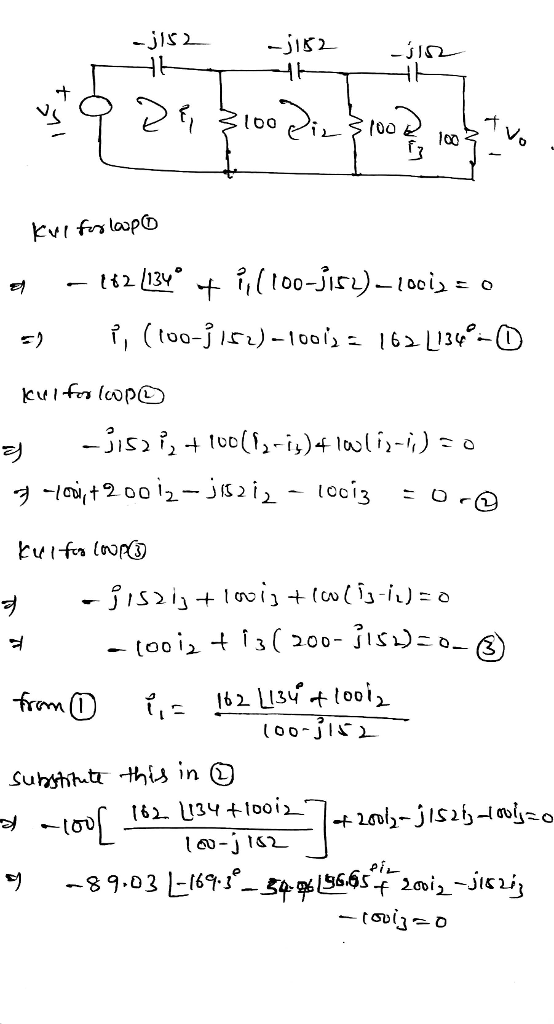

Answer 1

Answer #1

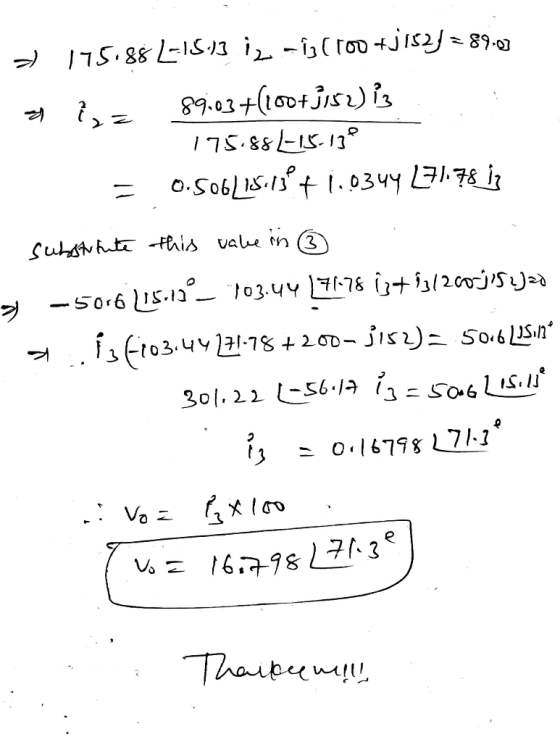

Answer 2
