A 28 lb. concrete block with weight of 125 N is held by a cord on...

Question

Question

A 28 lb. concrete block with weight of 125 N is held by a cord on an icy, frictionless inclined plane.

a) What is the tension in the cord if the incline of the plane is 27 degrees?

b) What force does the plane exert on the block?

c) If the cord breaks what will be the acceleration of the block?

science physics

Answer 1

Answer #1

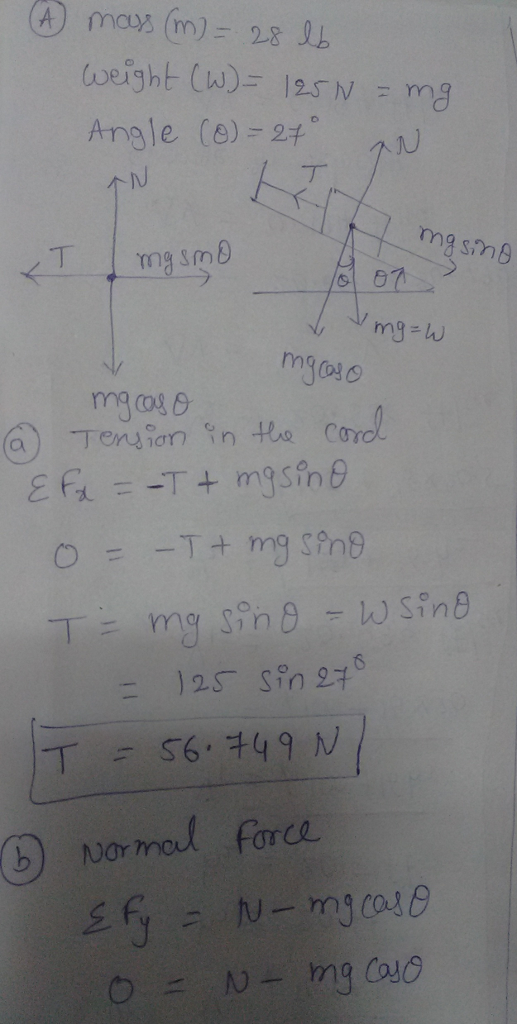

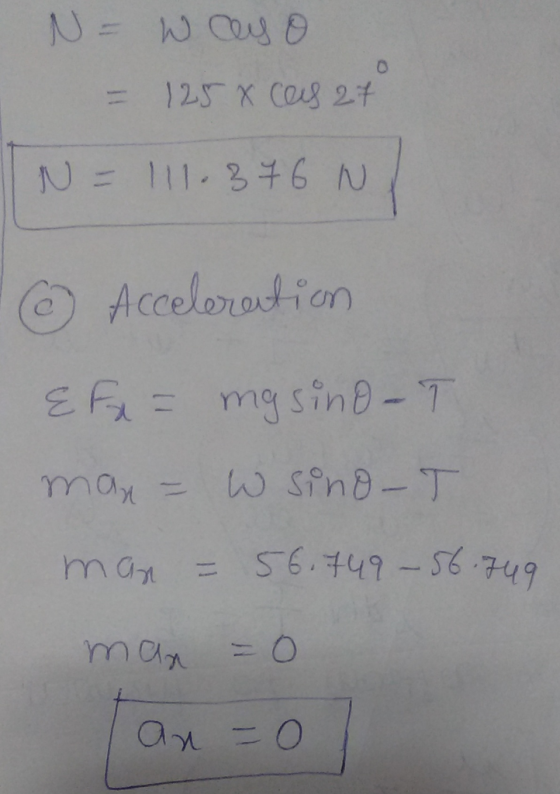

ㄒ 식07 (a Tendion in the Caro Nor mod force. 111.3兆 ⓒ Acceleration man S6,チ49-56.749 =
